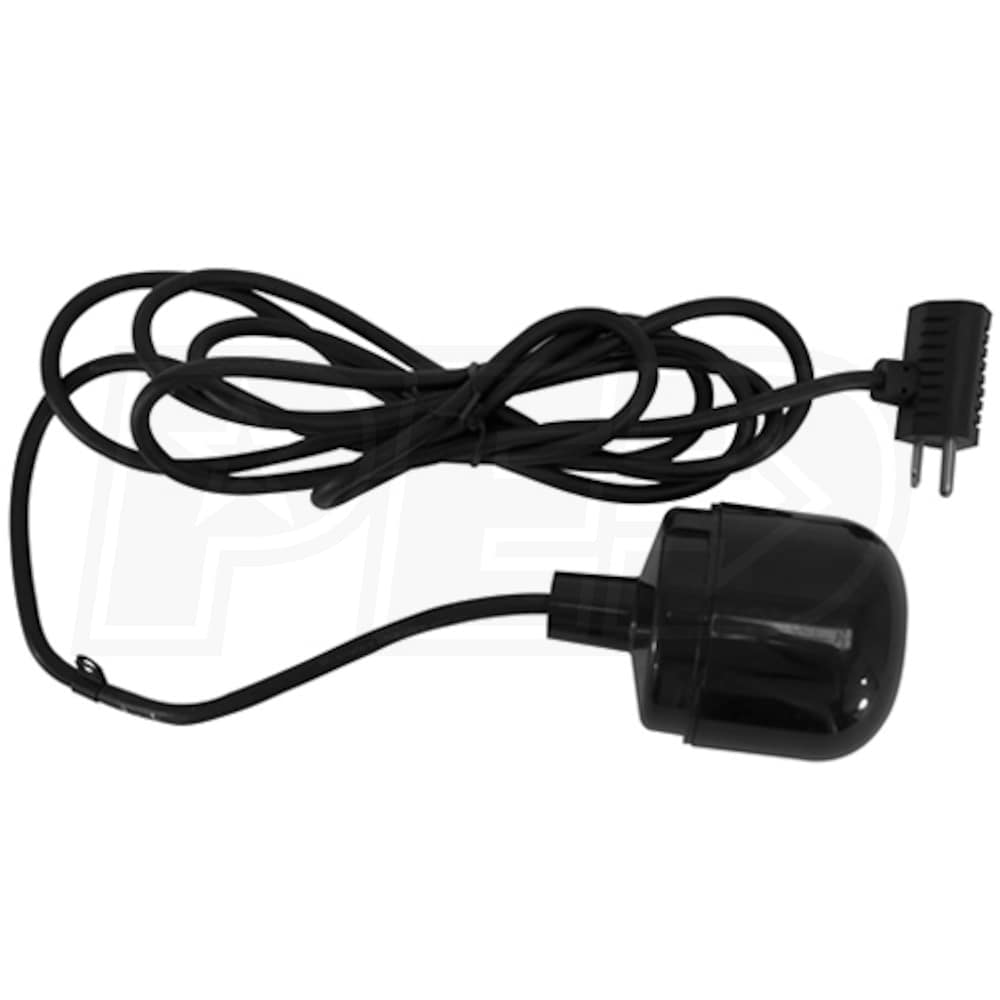

Superior Pump Wide Angle Tether Float Switch (120V 10A) w/ 25' Cord & Plug

Model:

92005

Write A Review

$37.00

In-Stock

Ships Monday, Mar 27th

Shipping to60601

Superior Pump Wide Angle Tether Float Switch (120V 10A) w/ 25' Cord & Plug

Model: 92005

$37.00

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Mechanically-Activated, Non-Mercury, Wide-Angle Switch
Controls pumps up to 1/2 HP at 120V (10-Amp Max)
Constructed From High Impact, Corrosion Resistant ABS

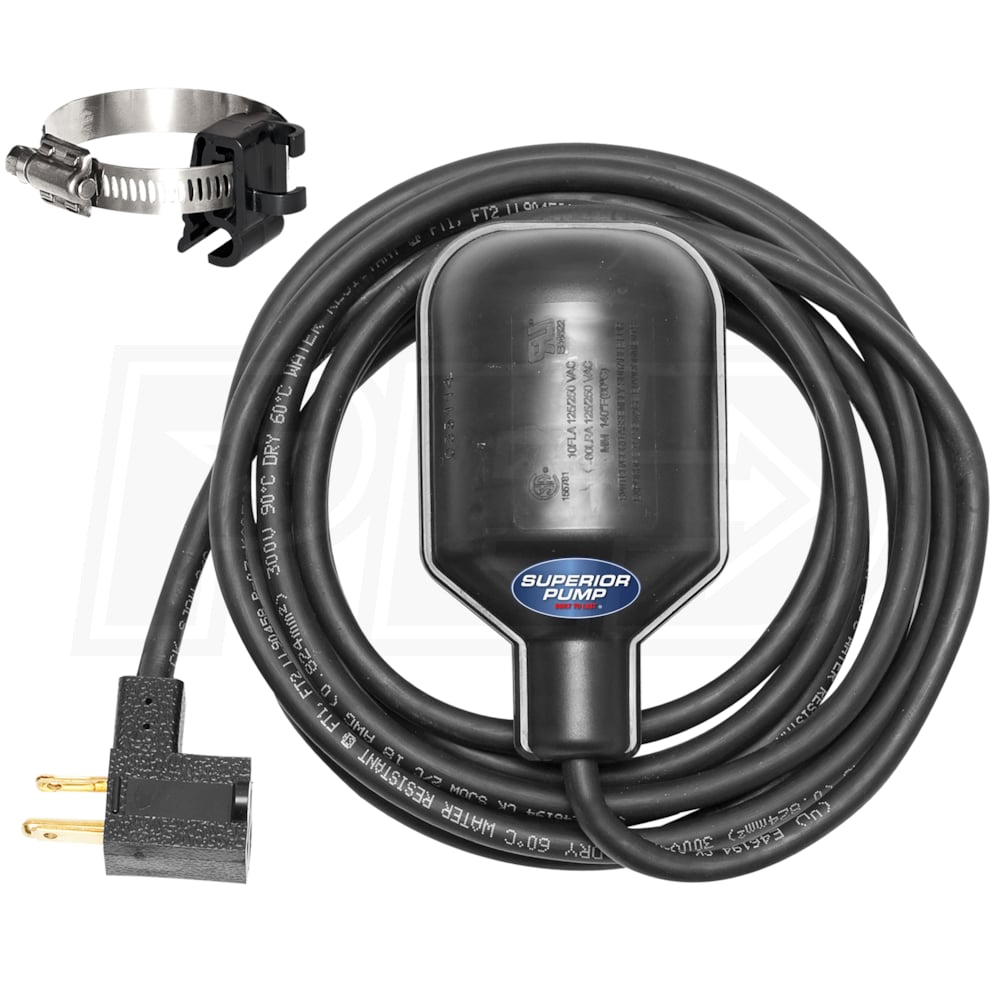

Includes 120V piggyback plug w/ 25’ power cord & mounting clip
Versatile Design
Adjustable pumping range of 7” to 36”
For Use With Non-Potable Water

California residents see

Warning: This product can expose you to chemicals including Vinyl chloride which is known to the State of California to cause Cancer.

For more information go to: www.p65Warnings.ca.gov

Specifications

92005

General Information

Product Category

Water Pump Accessories

Motor

Voltage

120 Volt

Running Amps

Power Cord Length

25 Feet

Overview

Product Category

Water Pump Accessories

Weight

2 Pounds

Consumer Warranty

1 Year

UPC

725113920051

Reviews

(11)

Superior Pump 92005 Reviews & Ratings

Product Q&A

(3)

Product Questions Answered by Jim, the Water Pump Expert

I would like to buy the storm pro 1/3 hp pump but would like level switch to control over a longer span (deep pit with higher flow rates at times) want to minimize cycles. Is there a different longer switch rod that can replace the stock version.

Barry

from Minnesota

May 08, 2012

Answer

Unfortunately not! Your only options would be the Pro Series Ultimate Sensor Pump Controller System, model USC3 or the Superior Pump Wide Angle Tether Float Switch w/ Piggyback Plug, model 92005. The Pro Series switch can be adjusted to pump for 5 - 45 seconds once the water level drops below the sensor and the Superior tether float has an adjustable pumping range of 7” to 36”.

Was this answer helpful?

Yes

I have a 1-1/2 hp pump in my sump. The sump is 25" deep. The pump intake is approx. 2'' above the sump bottom. Is there a float switch that would operate between, say, 4" (off) and 20" (on)?

Ray Hampson

from New York

January 01, 2012

Answer

You would have more control or a better chance of getting close to your required on/off level using the Superior model 92005 Wide Angle Tether Float Switch. Most other vertical float switches will generally only have a 5 - 7 inch differential. The only other possibility would be the Ion Genesis Programmable Smart Sensing Sump Pump Controller System model ING-2-10-1B. This system would allow you to fine tune your on/off level at 1/2" increments.

Was this answer helpful?

Yes

is a float switch available thjat will override the built in switch on the sump pump

Sam

from New York

May 15, 2011
