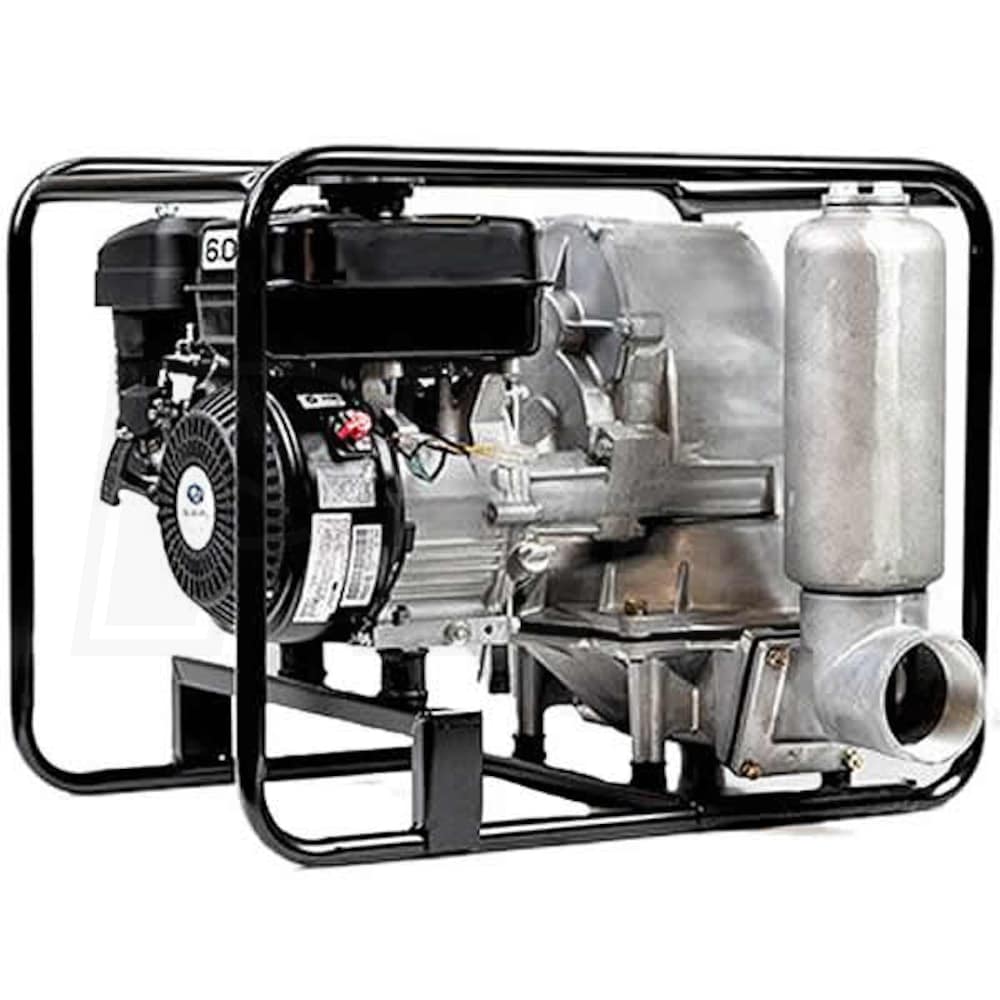

Subaru PTX301D - 66 GPM (3") Diaphragm Pump

Subaru PTX301D - 66 GPM (3") Diaphragm Pump
Model: PTX301D
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
3"
Style
Diaphragm Pumps
GPM
66
Gallons
Engine
Inlet Size
3"
Style
Diaphragm
GPM
66 Gallons
Engine
Robin Subaru


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Heavy-Duty Self-Priming Diaphragm Pump
  • Ideal for abrasives, slurries, viscous products & seawater
  • Hermetically Sealed Compression Chamber
  • Positive displacement type, prevents loss of gases or liquids
  • Air Cushion Chamber
  • Shock-reducing air cushion chamber decreases pressure on hoses
  • Isolated Design
  • Ideal for pumping high-solid material content, up to 2"
  • 6 HP Subaru OHV 4-Cycle Engine w/ Speed Control
  • Provides enough power to pump 66 GPM
  • Low Oil Shutdown
  • Shuts the engine off when low oil level is detected
  • .95-Gallon Fuel Tank w/ Strainer
  • Provides 2.5 hours of peak run time on a full tank
  • Muffler w/ US Forestry Approved Spark Arrestor
  • Provides optimum sound reduction
  • Full Tubular Wrap-Around Frame
  • Heavy-duty steel frame protects the pump and motor on all sides
  • Includes Standard Accessories
  • Tool kit, hose coupling, strainer and hose band
Specifications
Pump
Gallons Per Minute
66 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
No
Quick Clean Out
No
Solids Handling Size
2 inch
Suction Head
25 Feet
Total Head Lift
49 Feet
Maximum PSI
21
Submersible
No
Engine
Engine Brand
Robin Subaru
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Continuous Operation
Yes
Horsepower
6 hp
Fuel Tank Size
0.95 Gallons
Run Time
2.5 Hours
Consumer Engine Warranty
3 Years
Accessories
Tool Kit
Yes
Strainer
Yes
Hose
Sold Separately
Hose Couplings
No
Hose Bands
Yes
Lifting Hook
No
Wheel Kit
No
