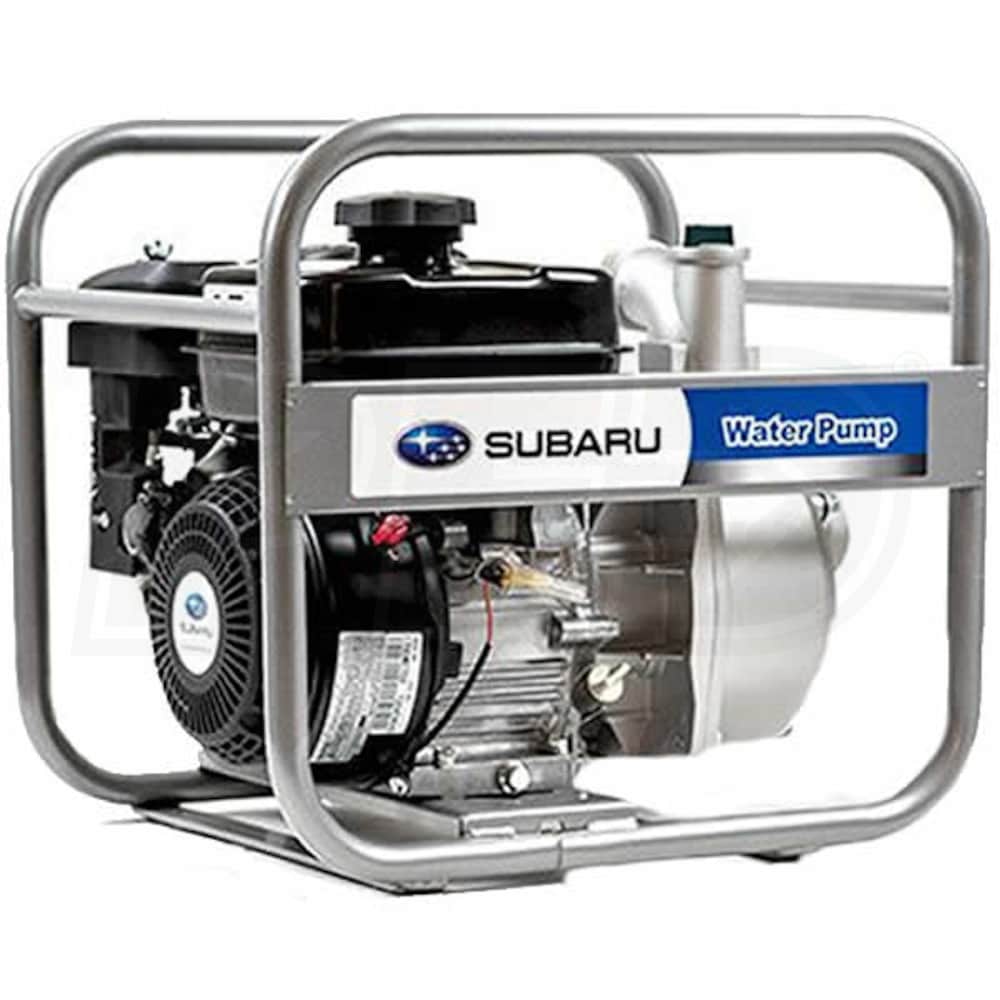

Subaru PKX320 - 291 GPM (3") Water Pump

Model:

PKX320

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Subaru PKX320 - 291 GPM (3
Subaru PKX320 - 291 GPM (3") Water Pump
Model: PKX320
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Inlet Size

3"

Style

Dewatering

GPM

253 Gallons

Engine

Robin Subaru



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 3" Self-Priming Water Pumps
  • Great for clear water removal, requires initial priming
  • 5.7 HP Subaru OHV 4-Cycle Engine w/ Speed Control
  • Provides enough power to pump 291 GPM
  • Low Oil Shutdown
  • Shuts the engine off when low oil level is detected
  • .85-Gallon Fuel Tank w/ Strainer
  • Provides 1.8 hours of peak run time on a full tank
  • Cast Iron Impeller and Volute
  • Ensures maximum durability and performance
  • Shimmable Impeller
  • Adjustable clearance as pump wears from dirt and grit
  • Ceramic Carbon Mechanical Seal
  • Self-lubricating seal provides rugged construction for long life
  • Full Tubular Wrap-Around Frame
  • Heavy-duty steel frame protects the pump and motor on all sides
  • Muffler w/ US Forestry Approved Spark Arrestor
  • Provides optimum safety & sound reduction
  • Includes Standard Accessories
  • Tool kit, strainer, hose band & vibration isolators

Specifications

PKX320
specs product image PID-10033
Pump
Gallons Per Minute
253 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Cast Iron
Solids Handling Size
.3 inch
Suction Head
26 Feet
Maximum PSI
44
Total Head Lift
92 Feet
Submersible
No
Engine
Engine Brand
Robin Subaru
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
5.7 hp
Fuel Tank Size
0.95 Gallons
Run Time
1.8 Hours
Consumer Engine Warranty
3 Years
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Hose
Sold Separately
Hose Bands
Yes
Lifting Hook
No
Wheel Kit
No
Overview
Weight
67 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
19.9 Inches
Product Width
15.2 Inches
Product Height
18.4 Inches
