Product Description
+−
Inlet Size
4"
Style
GPM
428
Gallons
Engine
Inlet Size
4"
Style
Trash
GPM
428 Gallons
Engine
Robin Subaru
Features
Features
- Silicon-Carbide Mechanical Seal
- Seal provides stamina for tough applications
- Cast-Iron Impeller and Volute
- Able to withstand suspended debris sucked through the strainer
- Die Cast Pump Housing
- Heavy duty aluminum resists damage
- Access plug eliminates need for special maintenance tools
- Replaceable Wear Plate
- Ensures long service life and low maintenance
- Shimmable Impeller To Volute
- Adjustable clearance as pump wears from dirt and grit
- Avoids replacing major components before their time
- 13.5 HP Subaru 4-Cycle OHV Engine w/ Speed Control
- Low oil shutdown prevents damage to the engine
- Anti-Vibration mounts reduce pump movement during operation
- Full Tubular Wrap-Around Frame
- Heavy-duty steel frame protects the pump and motor on all sides
- Includes:
- Tool kit, strainer, hose band, and pump cover wrench
- U.S. Forestry approved spark arrestor
Specifications
Pump
Gallons Per Minute
428 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Suction Head
26 Feet
Maximum PSI
33
Total Head Lift
89 Feet
Submersible
No
Engine
Engine Brand
Robin Subaru
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
13.5 hp
Fuel Tank Size
1.85 Gallons
Run Time
2.4 Hours
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
Yes
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
175 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
29.3 Inches
Product Width
21.1 Inches
Product Height
24.6 Inches
Inlet Size
4"
Style
GPM
428
Gallons
Engine
Inlet Size
4"
Style
Trash
GPM
428 Gallons
Engine
Robin Subaru
Features
Features
- Silicon-Carbide Mechanical Seal
- Seal provides stamina for tough applications
- Cast-Iron Impeller and Volute
- Able to withstand suspended debris sucked through the strainer
- Die Cast Pump Housing
- Heavy duty aluminum resists damage
- Access plug eliminates need for special maintenance tools
- Replaceable Wear Plate
- Ensures long service life and low maintenance
- Shimmable Impeller To Volute
- Adjustable clearance as pump wears from dirt and grit
- Avoids replacing major components before their time
- 13.5 HP Subaru 4-Cycle OHV Engine w/ Speed Control
- Low oil shutdown prevents damage to the engine
- Anti-Vibration mounts reduce pump movement during operation
- Full Tubular Wrap-Around Frame
- Heavy-duty steel frame protects the pump and motor on all sides
- Includes:
- Tool kit, strainer, hose band, and pump cover wrench
- U.S. Forestry approved spark arrestor
Specifications
Pump
Gallons Per Minute
428 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Suction Head
26 Feet
Maximum PSI
33
Total Head Lift
89 Feet
Submersible
No
Engine
Engine Brand
Robin Subaru
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
13.5 hp
Fuel Tank Size
1.85 Gallons
Run Time
2.4 Hours
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
Yes
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
175 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
29.3 Inches
Product Width
21.1 Inches
Product Height
24.6 Inches
Product Specs
+−
Specifications
Pump
Gallons Per Minute
428 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Suction Head
26 Feet
Maximum PSI
33
Total Head Lift
89 Feet
Submersible
No
Engine
Engine Brand
Robin Subaru
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
13.5 hp
Fuel Tank Size
1.85 Gallons
Run Time
2.4 Hours
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
Yes
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
175 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
29.3 Inches
Product Width
21.1 Inches
Product Height
24.6 Inches
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Be the first to ask a question.
Recommended Accessories
+−
Expert Recommended Accessories
Hand Picked By Our Expert Jim
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Jim O.
Manuals
+−
+
Ask Jim, Our Product Expert, A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

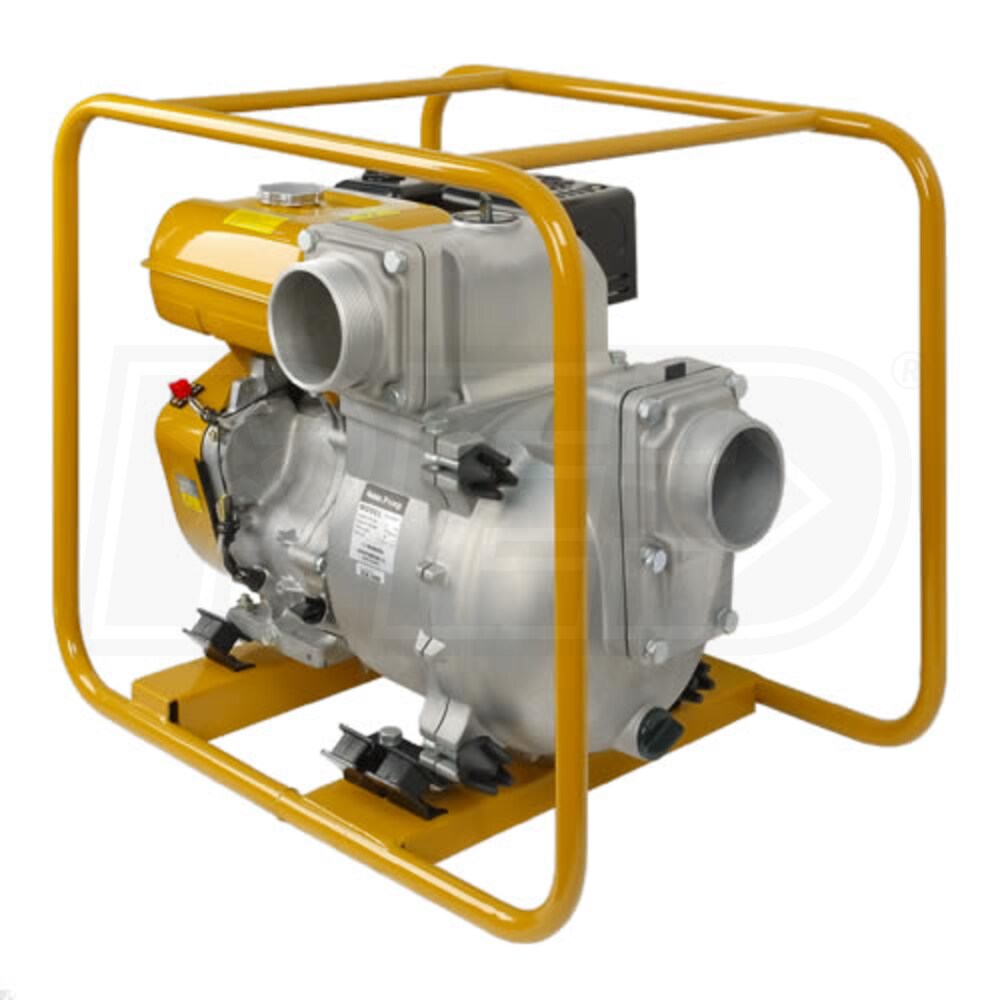

Subaru PKV401T - 428 GPM (4") Trash Pump
×
