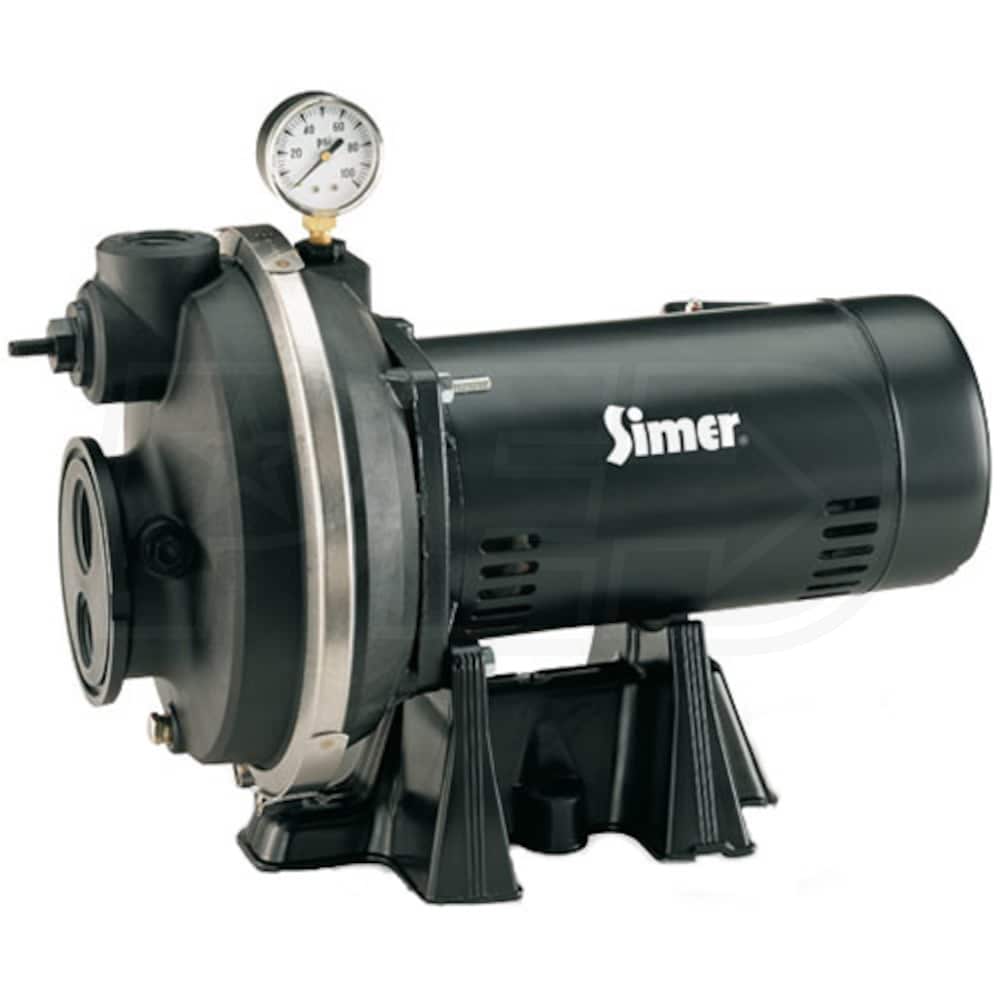

Simer 9 GPM 1/2 HP Thermoplastic Convertible Well Jet Pump
Model: 3305P
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
Q&A (3)
$259.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−

Inlet Size
1-1/4"
Style
Convertible Jet Pumps
GPM
9
Gallons
Inlet Size
1-1/4"
Style
Convertible Jet
GPM
9 Gallons
Features
Features
  • 1/2 HP Convertible Jet Pump
  • Ideal for use in shallow wells (less than 25’)
  • Ideal for use in deep wells (25’ to 90’)
  • Corrosion-Resistant Thermoplastic Construction
  • Extends the life of the pump
  • Factory Pre-Set 30/50 Pressure Switch
  • Adjustable to meet the needs of your application
  • Requires Jet Conversion Kit (Sold Separately)
  • Shallow Well Jet Conversion Kit (FP4875-P2)
  • Deep Well Jet Conversion Kit (FP4800-P2)
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.7
Pump
Gallons Per Minute
9 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Thermoplastic
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
62
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
24.4 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
12 Inches
Product Height
12 Inches
UPC
022315324268

Inlet Size
1-1/4"
Style
Convertible Jet Pumps
GPM
9
Gallons
Inlet Size
1-1/4"
Style
Convertible Jet
GPM
9 Gallons
Features
Features
  • 1/2 HP Convertible Jet Pump
  • Ideal for use in shallow wells (less than 25’)
  • Ideal for use in deep wells (25’ to 90’)
  • Corrosion-Resistant Thermoplastic Construction
  • Extends the life of the pump
  • Factory Pre-Set 30/50 Pressure Switch
  • Adjustable to meet the needs of your application
  • Requires Jet Conversion Kit (Sold Separately)
  • Shallow Well Jet Conversion Kit (FP4875-P2)
  • Deep Well Jet Conversion Kit (FP4800-P2)
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.7
Pump
Gallons Per Minute
9 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Thermoplastic
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
62
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
24.4 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
12 Inches
Product Height
12 Inches
UPC
022315324268
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.7
Pump
Gallons Per Minute
9 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Thermoplastic
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
62
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
24.4 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
12 Inches
Product Height
12 Inches
UPC
022315324268
Reviews
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
(1)
+−
Simer 3305P Reviews & Ratings
Product Q&A
(3)
+−
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+−
What are the running amps at 115V on this pump?
Don
from Maine
March 23, 2017
Answer
Per the 3305P Spec Sheet, the running amp rating for this pump is 9.4 amps. If you need the surge amp rating, you would need to call Simer tech support at 800-468-7867.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+−
What is the max operating liquid temperature?
Jordan
from Oregon
March 25, 2014
Answer
Thank you for your interest in Water Pumps Direct. Per the manufacturer, the Simer 3305P Convertible Jet Pump has not been tested for water temps outside 33 degrees to 77 degrees.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+−
Does this pump self-prime? Does this pump have auto pressure shut off?
Jordan
from Oregon
March 25, 2014
Answer
Once the pump is installed according to the installation instructions and primed initially, you should not need to prime the pump again. This Simer 3305P Convertible Jet Pump does include a 30/50 pressure switch. Please read our guide on How to Prime a Well Pump and watch the video below for more info.


Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
