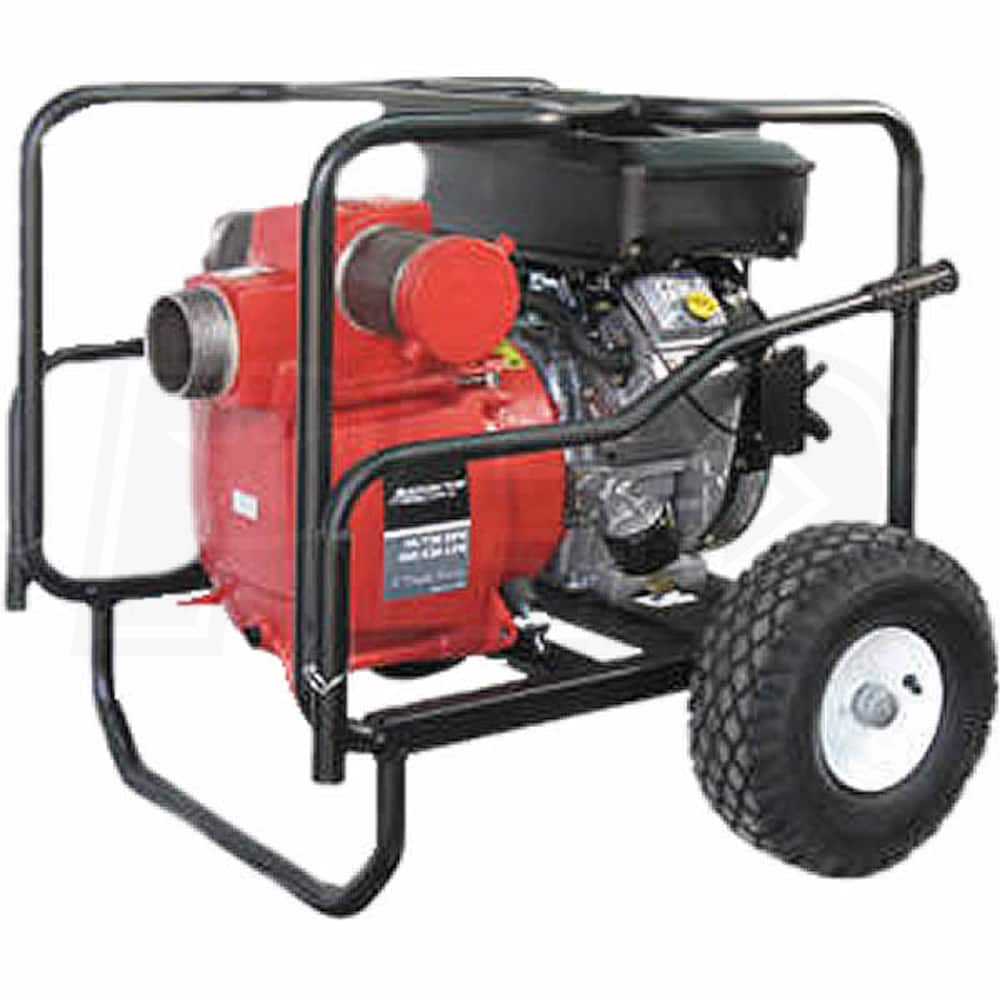

Riverside Pumps TP4V - 662 GPM (4") Trash Pump w/ Briggs & Stratton Vanguard™ Engine

Riverside Pumps TP4V - 662 GPM (4") Trash Pump w/ Briggs & Stratton Vanguard™ Engine
Model: TP4V
$3,649.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Add-Ons
+$50.00
Free Shipping$3,649.00Buy Now
$3,699.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
4"
Style
Trash Pumps
GPM
662
Gallons
Engine
Inlet Size
4"
Style
Trash
GPM
662 Gallons
Engine
Briggs & Stratton Vanguard
Features
Features
  • Riverside Pumps 4" Gas Powered Trash Pump
  • Productivity and value are why this is a contractor's choice
  • 479cc Briggs & Stratton Vanguard™ V-Twin OHV Engine
  • Less vibration, lower emissions, improved valve life & better fuel economy
  • Dura-Bore™ cast iron sleeve to combat wear & abuse
  • Full Pressure Lubrication w/ Spin-On Oil Filter
  • Ensures maximum lubrication to protect engine components
  • Cast Iron Impeller & Volute - Passes Solids Up To 2"
  • 2-Vane "Open" design incorporates a wide solids passage
  • Sand-Cast Iron Pump Housing
  • Rugged and provides longer life inexpensive die-cast housings
  • Tool-Less Clean Out w/ 4 Disconnect Handles
  • Minimizes downtime on the job because it's easy to service
  • Durable Cast Iron Wear Plate
  • Extends pump life when pumping water with foreign material
  • 1.25" Tubular Steel Roll Cage w/ (2) Pump Vibration Isolators
  • Powder-painted to prevent rust and corrosion
  • Pneumatic Tires & Wheelbarrow-Style Handles
  • For easy transportation on the construction site & loading ramp
  • 2-Year Pump & 3-Year Engine Warranty
Specifications
Pump
Gallons Per Minute
662 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Quick Clean Out
Yes
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Suction Head
25 Feet
Total Head Lift
115 Feet
Maximum PSI
49.8
Submersible
No
Engine
Engine Brand
Briggs & Stratton Vanguard
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
16 hp
CC
480 cc
Torque
24.4 ft-lbs Net Torque
Fuel Tank Size
1.6 Gallons
Run Time
1.7 Hours
Consumer Engine Warranty
3 Years
Accessories
Tool Kit
No
Strainer
No
Hose
Sold Separately
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
Yes
Wheel Kit
Yes
Overview
Weight
264 Pounds
Product Length
30.8 Inches
Product Width
36.5 Inches
Product Height
31.6 Inches
Consumer Warranty
2 Years

Inlet Size
4"
Style
Trash Pumps
GPM
662
Gallons
Engine
Inlet Size
4"
Style
Trash
GPM
662 Gallons
Engine
Briggs & Stratton Vanguard
Features
Features
  • Riverside Pumps 4" Gas Powered Trash Pump
  • Productivity and value are why this is a contractor's choice
  • 479cc Briggs & Stratton Vanguard™ V-Twin OHV Engine
  • Less vibration, lower emissions, improved valve life & better fuel economy
  • Dura-Bore™ cast iron sleeve to combat wear & abuse
  • Full Pressure Lubrication w/ Spin-On Oil Filter
  • Ensures maximum lubrication to protect engine components
  • Cast Iron Impeller & Volute - Passes Solids Up To 2"
  • 2-Vane "Open" design incorporates a wide solids passage
  • Sand-Cast Iron Pump Housing
  • Rugged and provides longer life inexpensive die-cast housings
  • Tool-Less Clean Out w/ 4 Disconnect Handles
  • Minimizes downtime on the job because it's easy to service
  • Durable Cast Iron Wear Plate
  • Extends pump life when pumping water with foreign material
  • 1.25" Tubular Steel Roll Cage w/ (2) Pump Vibration Isolators
  • Powder-painted to prevent rust and corrosion
  • Pneumatic Tires & Wheelbarrow-Style Handles
  • For easy transportation on the construction site & loading ramp
  • 2-Year Pump & 3-Year Engine Warranty
Specifications
Pump
Gallons Per Minute
662 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Quick Clean Out
Yes
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Suction Head
25 Feet
Total Head Lift
115 Feet
Maximum PSI
49.8
Submersible
No
Engine
Engine Brand
Briggs & Stratton Vanguard
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
16 hp
CC
480 cc
Torque
24.4 ft-lbs Net Torque
Fuel Tank Size
1.6 Gallons
Run Time
1.7 Hours
Consumer Engine Warranty
3 Years
Accessories
Tool Kit
No
Strainer
No
Hose
Sold Separately
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
Yes
Wheel Kit
Yes
Overview
Weight
264 Pounds
Product Length
30.8 Inches
Product Width
36.5 Inches
Product Height
31.6 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Pump
Gallons Per Minute
662 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Quick Clean Out
Yes
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Suction Head
25 Feet
Total Head Lift
115 Feet
Maximum PSI
49.8
Submersible
No
Engine
Engine Brand
Briggs & Stratton Vanguard
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
16 hp
CC
480 cc
Torque
24.4 ft-lbs Net Torque
Fuel Tank Size
1.6 Gallons
Run Time
1.7 Hours
Consumer Engine Warranty
3 Years
Accessories
Tool Kit
No
Strainer
No
Hose
Sold Separately
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
Yes
Wheel Kit
Yes
Overview
Weight
264 Pounds
Product Length
30.8 Inches
Product Width
36.5 Inches
Product Height
31.6 Inches
Consumer Warranty
2 Years
