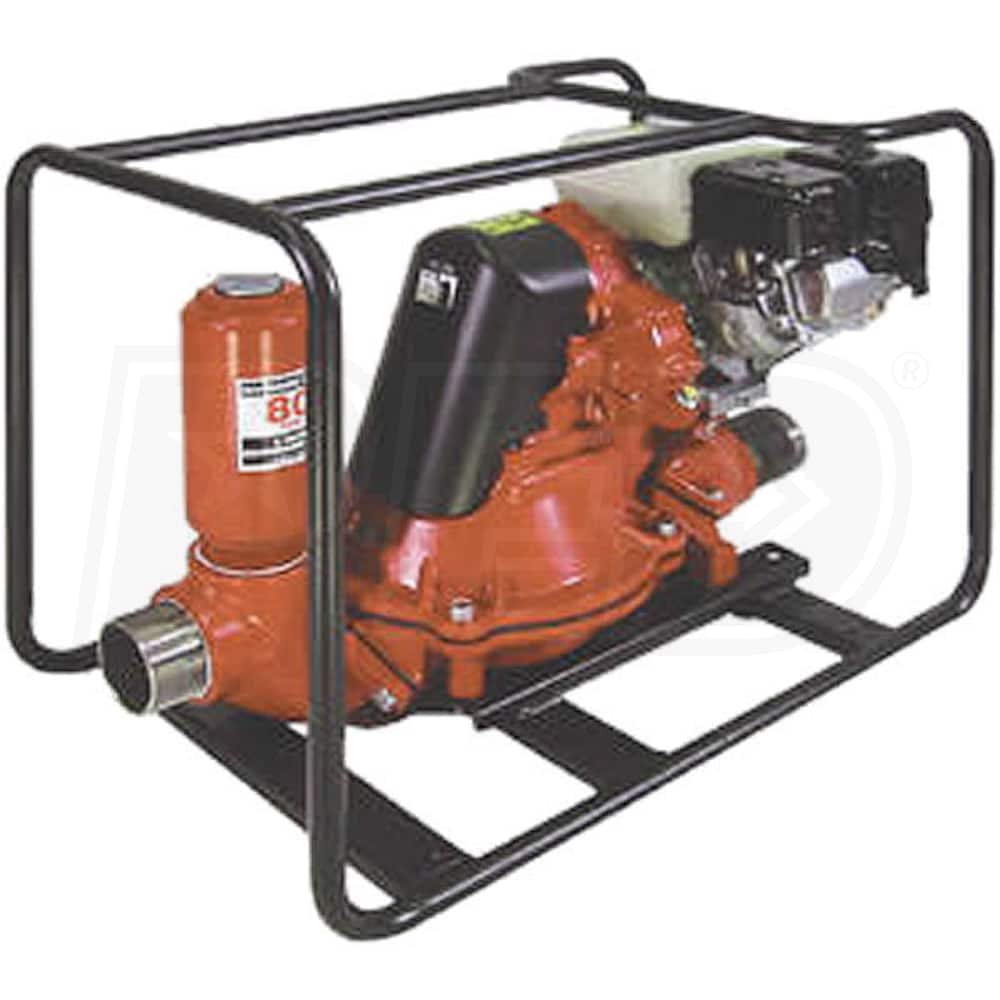

Riverside Pumps DP3H - 80 GPM (3") Diaphragm Pump w/ Honda GX160 Engine
Riverside Pumps DP3H - 80 GPM (3") Diaphragm Pump w/ Honda GX160 Engine
+
Share This Product
-
Product Description
-
2Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
3"
Style
GPM
80
Gallons
Engine
Inlet Size
3"
Style
Diaphragm
GPM
80 Gallons
Engine
Honda GX
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Premium Series 3" Diaphragm "Mud Hog" Pump
- Pumps heavy mud/sludge that's too thick for centrifugal pumps
- 163cc Honda GX160 OHV 4-Stroke Engine
- OHV design for increased efficiency and optimal power transfer
- Oil Alert® Warning System for added engine protection
- One-Piece X-Cross Section Aluminum Pump Rod
- Simple, durable design for reliable operation & easy service
- Heavy-Duty Self-Priming Diaphragm Pump
- Neoprene rubber elastomer w/ woven Nylon core
- Air Cushion Chamber (Standpipe)
- Helps to reduce hose and diaphragm stress
- Cast-Aluminum Pump Housing
- Thick-wall design for durability and longevity
- Run-Dry Without Damage To The Pump
- Great for seepage control and varying drainage speeds
- 0.75-Gallon Fuel Tank
- Provides a maximum run time of 2.1 hours
- 1" Steel Roll Cage
- Provides added protection during operation, transportation & storage
- 2-Year Pump & 2-Year Engine Warranty
Specifications
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Solids Handling Size
3 inch
Suction Head
15 Feet
Maximum PSI
21.6
Total Head Lift
50 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
4.8 hp
CC
163 cc
Torque
7.6 ft-lbs Net Torque
Fuel Tank Size
0.75 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Hose
Sold Separately
Overview
Weight
135 Pounds
Consumer Warranty
2 Years
Product Length
33 Inches
Product Width
19 Inches
Product Height
24.5 Inches
Inlet Size
3"
Style
GPM
80
Gallons
Engine
Inlet Size
3"
Style
Diaphragm
GPM
80 Gallons
Engine
Honda GX
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Premium Series 3" Diaphragm "Mud Hog" Pump
- Pumps heavy mud/sludge that's too thick for centrifugal pumps
- 163cc Honda GX160 OHV 4-Stroke Engine
- OHV design for increased efficiency and optimal power transfer
- Oil Alert® Warning System for added engine protection
- One-Piece X-Cross Section Aluminum Pump Rod
- Simple, durable design for reliable operation & easy service
- Heavy-Duty Self-Priming Diaphragm Pump
- Neoprene rubber elastomer w/ woven Nylon core
- Air Cushion Chamber (Standpipe)
- Helps to reduce hose and diaphragm stress
- Cast-Aluminum Pump Housing
- Thick-wall design for durability and longevity
- Run-Dry Without Damage To The Pump
- Great for seepage control and varying drainage speeds
- 0.75-Gallon Fuel Tank
- Provides a maximum run time of 2.1 hours
- 1" Steel Roll Cage
- Provides added protection during operation, transportation & storage
- 2-Year Pump & 2-Year Engine Warranty
Specifications
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Solids Handling Size
3 inch
Suction Head
15 Feet
Maximum PSI
21.6
Total Head Lift
50 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
4.8 hp
CC
163 cc
Torque
7.6 ft-lbs Net Torque
Fuel Tank Size
0.75 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Hose
Sold Separately
Overview
Weight
135 Pounds
Consumer Warranty
2 Years
Product Length
33 Inches
Product Width
19 Inches
Product Height
24.5 Inches
Product Specs
+−
Specifications
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Solids Handling Size
3 inch
Suction Head
15 Feet
Maximum PSI
21.6
Total Head Lift
50 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
4.8 hp
CC
163 cc
Torque
7.6 ft-lbs Net Torque
Fuel Tank Size
0.75 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Hose
Sold Separately
Overview
Weight
135 Pounds
Consumer Warranty
2 Years
Product Length
33 Inches
Product Width
19 Inches
Product Height
24.5 Inches
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Would this pump work to pump sludge and water out of a large area?
Joe
from Michigan
March 29, 2017
Answer
The Riverside DP3H should do a great job for you as long as you are not exceeding the rated specs. Specifically, the max suction and total head lift. These pumps are also not designed for pumping long distances. As such, I would not recommend pumping more than 50-75 feet total, horizontally.
