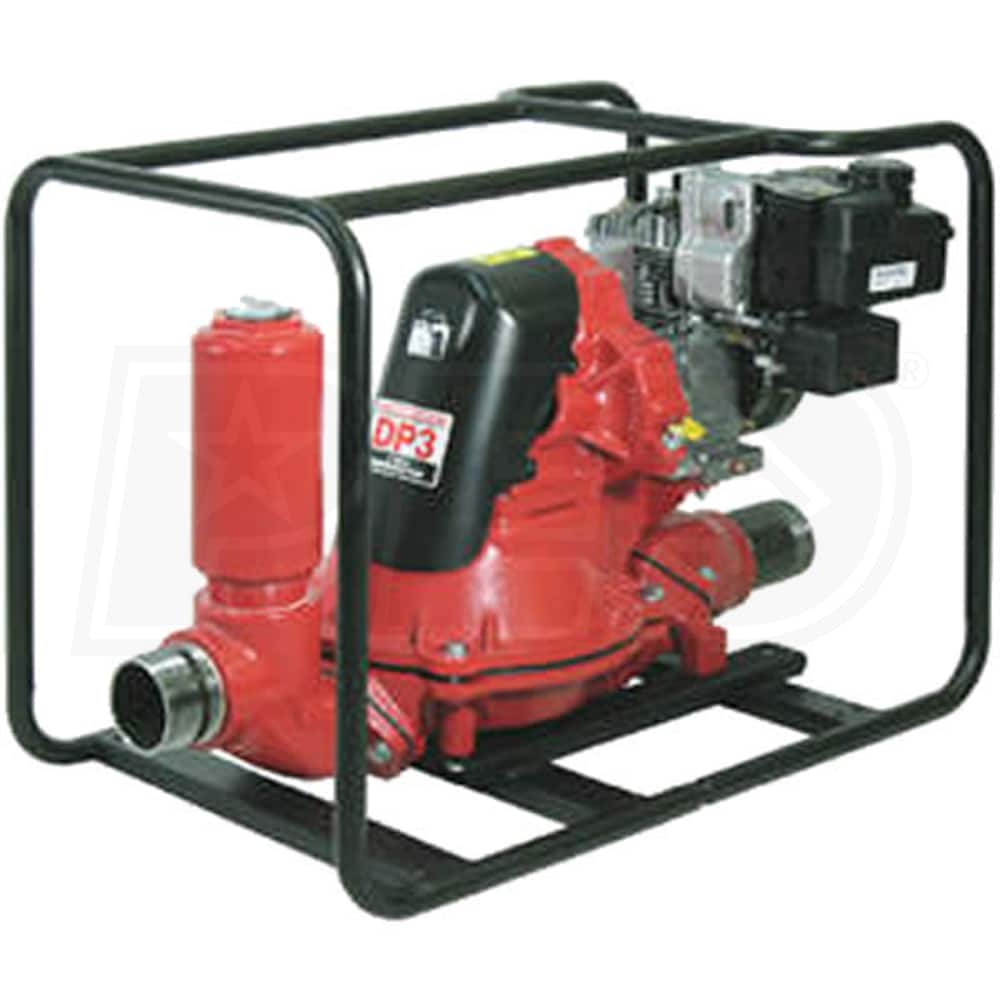

Riverside Pumps DP3B - 80 GPM (3") Diaphragm Pump w/ Briggs & Stratton 550 Series™ Engine

Riverside Pumps DP3B - 80 GPM (3") Diaphragm Pump w/ Briggs & Stratton 550 Series™ Engine
Our Price
Compare Prices
Shipping Info
Model: DP3B
$1,599.00

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Add-Ons
+$50.00
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
3"
Style
Diaphragm Pumps
GPM
80
Gallons
Engine
Inlet Size
3"
Style
Diaphragm
GPM
80 Gallons
Engine
Briggs & Stratton


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Premium Series 3" Diaphragm "Mud Hog" Pump
  • Pumps heavy mud/sludge that's too thick for centrifugal pumps
  • 127cc Briggs & Stratton 550 Series™ 4-Stroke OHV Engine
  • Dura-Bore™ cast iron sleeve to combat wear & abuse
  • OHV design for running cooler, cleaner & more fuel efficient
  • One-Piece X-Cross Section Aluminum Pump Rod
  • Simple, durable design for reliable operation & easy service
  • Heavy-Duty Self-Priming Diaphragm Pump
  • Neoprene rubber elastomer w/ woven Nylon core
  • Air Cushion Chamber (Standpipe)
  • Helps to reduce hose and diaphragm stress
  • Cast-Aluminum Pump Housing
  • Thick-wall design for durability and longevity
  • Run-Dry Without Damage To The Pump
  • Great for seepage control and varying drainage speeds
  • 0.5-Gallon Fuel Tank
  • Allows this pump to run over 2 hours
  • 1" Steel Roll Cage
  • Provides added protection during operation, transportation & storage
  • 2-Year Pump & 2-Year Engine Warranty
Specifications
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Solids Handling Size
3 inch
Suction Head
15 Feet
Total Head Lift
50 Feet
Maximum PSI
21.6
Submersible
No
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
3.5 hp
CC
127 cc
Torque
5.5 ft-lbs Net Torque
Fuel Tank Size
0.5 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Hose
Sold Separately
Overview
Weight
125 Pounds
Product Length
33 Inches
Product Width
19 Inches
Product Height
24.5 Inches
Consumer Warranty
2 Years

Inlet Size
3"
Style
Diaphragm Pumps
GPM
80
Gallons
Engine
Inlet Size
3"
Style
Diaphragm
GPM
80 Gallons
Engine
Briggs & Stratton


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Premium Series 3" Diaphragm "Mud Hog" Pump
  • Pumps heavy mud/sludge that's too thick for centrifugal pumps
  • 127cc Briggs & Stratton 550 Series™ 4-Stroke OHV Engine
  • Dura-Bore™ cast iron sleeve to combat wear & abuse
  • OHV design for running cooler, cleaner & more fuel efficient
  • One-Piece X-Cross Section Aluminum Pump Rod
  • Simple, durable design for reliable operation & easy service
  • Heavy-Duty Self-Priming Diaphragm Pump
  • Neoprene rubber elastomer w/ woven Nylon core
  • Air Cushion Chamber (Standpipe)
  • Helps to reduce hose and diaphragm stress
  • Cast-Aluminum Pump Housing
  • Thick-wall design for durability and longevity
  • Run-Dry Without Damage To The Pump
  • Great for seepage control and varying drainage speeds
  • 0.5-Gallon Fuel Tank
  • Allows this pump to run over 2 hours
  • 1" Steel Roll Cage
  • Provides added protection during operation, transportation & storage
  • 2-Year Pump & 2-Year Engine Warranty
Specifications
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Solids Handling Size
3 inch
Suction Head
15 Feet
Total Head Lift
50 Feet
Maximum PSI
21.6
Submersible
No
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
3.5 hp
CC
127 cc
Torque
5.5 ft-lbs Net Torque
Fuel Tank Size
0.5 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Hose
Sold Separately
Overview
Weight
125 Pounds
Product Length
33 Inches
Product Width
19 Inches
Product Height
24.5 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Solids Handling Size
3 inch
Suction Head
15 Feet
Total Head Lift
50 Feet
Maximum PSI
21.6
Submersible
No
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
3.5 hp
CC
127 cc
Torque
5.5 ft-lbs Net Torque
Fuel Tank Size
0.5 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Hose
Sold Separately
Overview
Weight
125 Pounds
Product Length
33 Inches
Product Width
19 Inches
Product Height
24.5 Inches
Consumer Warranty
2 Years
