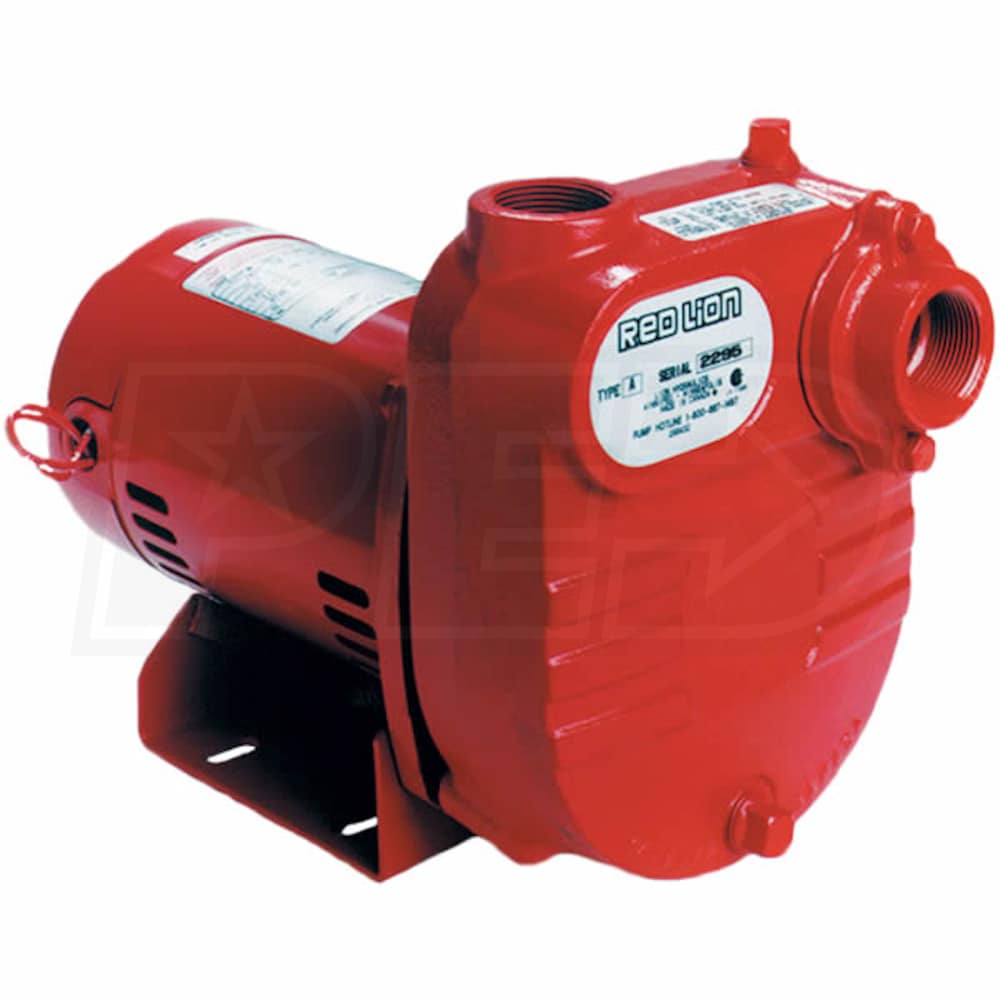

Red Lion 45 GPM 1/2 HP Cast Iron Surface Effluent Pump
Model: 621810
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews(1)
Write a Review
Ask a Question
$369.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-4 Business Days
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−

Inlet Size
1-1/4"
Style
Dewatering Pumps
GPM
45
Gallons
Inlet Size
1-1/4"
Style
Dewatering
GPM
45 Gallons
Features
Features
  • 1/2 HP Self-Priming Surface Effluent Pump
  • Engineered for pumping out liquid from septic tanks
  • Any dewatering/transfer application where small solids are present
  • Robust Cast Iron Pump Casing
  • Extremely durable design for longevity in effluent applications
  • Heavy Duty 1/2 HP Dual-Voltage 115/230V Motor
  • Voltage selector for simple connection to existing power source
  • Self-Priming Design w/ Built-In Check Valve
  • After initial fill, no additional priming required
  • Cast Iron Impeller
  • Provides superior abrasion resistance to solids present in water
  • 1-1/4" FNPT Suction & Discharge
  • Easily connects to your current discharge line
  • Drain Plug For Easy Maintenance & Servicing
  • Allows for easy emptying of pump housing
  • Additional Specs: Shut Off @ 49' & Max Pressure: 21 PSI
  • *Note - Strainer (Sold Separately) Rec'd For Effluent Applications
  • Amp Draw at 120/240 volts SF: 12/6 FLA: 8/4
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
45 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1-1/4"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Quick Clean Out
No
Housing Material
Cast Iron
Impeller Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
21
Total Head Lift
49 Feet
Built-in check Valve
Yes
Submersible
No
Engine
Oil-Cooled
No
Horsepower
0.5 hp
Consumer Engine Warranty
2 Years
Accessories
Tool Kit
No
Strainer
Sold Separately
Float Switch
No
Overview
Weight
42 Pounds
Consumer Warranty
2 Years
Product Length
10.25 Inches
Product Width
20 Inches
Product Height
11.75 Inches
UPC
010121126435
Additional Model Numbers
RL-S50, 621810

Inlet Size
1-1/4"
Style
Dewatering Pumps
GPM
45
Gallons
Inlet Size
1-1/4"
Style
Dewatering
GPM
45 Gallons
Features
Features
  • 1/2 HP Self-Priming Surface Effluent Pump
  • Engineered for pumping out liquid from septic tanks
  • Any dewatering/transfer application where small solids are present
  • Robust Cast Iron Pump Casing
  • Extremely durable design for longevity in effluent applications
  • Heavy Duty 1/2 HP Dual-Voltage 115/230V Motor
  • Voltage selector for simple connection to existing power source
  • Self-Priming Design w/ Built-In Check Valve
  • After initial fill, no additional priming required
  • Cast Iron Impeller
  • Provides superior abrasion resistance to solids present in water
  • 1-1/4" FNPT Suction & Discharge
  • Easily connects to your current discharge line
  • Drain Plug For Easy Maintenance & Servicing
  • Allows for easy emptying of pump housing
  • Additional Specs: Shut Off @ 49' & Max Pressure: 21 PSI
  • *Note - Strainer (Sold Separately) Rec'd For Effluent Applications
  • Amp Draw at 120/240 volts SF: 12/6 FLA: 8/4
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
45 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1-1/4"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Quick Clean Out
No
Housing Material
Cast Iron
Impeller Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
21
Total Head Lift
49 Feet
Built-in check Valve
Yes
Submersible
No
Engine
Oil-Cooled
No
Horsepower
0.5 hp
Consumer Engine Warranty
2 Years
Accessories
Tool Kit
No
Strainer
Sold Separately
Float Switch
No
Overview
Weight
42 Pounds
Consumer Warranty
2 Years
Product Length
10.25 Inches
Product Width
20 Inches
Product Height
11.75 Inches
UPC
010121126435
Additional Model Numbers
RL-S50, 621810
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
45 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1-1/4"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Quick Clean Out
No
Housing Material
Cast Iron
Impeller Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
21
Total Head Lift
49 Feet
Built-in check Valve
Yes
Submersible
No
Engine
Oil-Cooled
No
Horsepower
0.5 hp
Consumer Engine Warranty
2 Years
Accessories
Tool Kit
No
Strainer
Sold Separately
Float Switch
No
Overview
Weight
42 Pounds
Consumer Warranty
2 Years
Product Length
10.25 Inches
Product Width
20 Inches
Product Height
11.75 Inches
UPC
010121126435
Additional Model Numbers
RL-S50, 621810
