How to Pick the Perfect Well Pump
The days of using a bucket and rope to retrieve water from a well are long gone...
Hover to zoom
1 Of 5

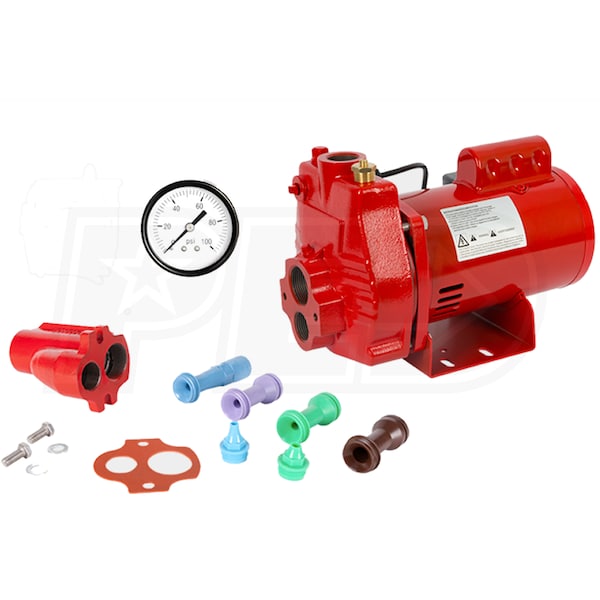

Red Lion 16.2 GPM 3/4 HP Premium Cast Iron Convertible Jet Pump w/ Injector Kit
Model:
602137
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
1-1/4 Inch
Style
Convertible Jet
GPM
16.2 Gallons
- 3/4 HP Convertible Jet Pump
- Ideal for use in shallow wells (less than 25’)
- Ideal for use in deep wells (25’ to 90’)
- Heavy-Duty Cast Iron Construction
- Built for years of service and reliability
- 115/230 Volt Heavy-Duty 3/4 HP Motor
- Voltage selector for simple connection to existing power source
- Includes Factory Pre-Set 30/50 Pressure Switch
- Produces up to 50 PSI with automatic shut-off
- Glass-Filled Thermoplastic Impeller & Diffuser
- For high performance and efficient water flow
- Also Includes
- Pressure Gauge & Injector Kit
- Additional Specs
- 1-1/4" FNPT - Intake
- 1" FNPT - Discharge
- 3-Year Limited Warranty
Specifications
602137
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
16.2 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
73
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Product Category
Water Pump
Weight
37 Pounds
Consumer Warranty
3 Years
UPC
010121151116
Additional Model Numbers
RJC-75-PREM, 602137
