Features
Inlet Size
N/A
Style
Chemical
GPM
90 Gallons
- Stainless Steel Design Will Not Rust Or Corrode
- Designed for use in salt/brackish water and chemicals
- Heavy Duty 1 HP Permanent Split Capacitor (PSC) Motor
- Energy efficient design, 11.3A @ 10' head
- Thermally Protected Motor
- Overload protection prevents overheating
- Bottom Suction Design
- Slotted intake will pass solids up to 3/8"
- High Capacity 2" Discharge
- Designed for continuous duty applications
- Double Carbon, Ceramic Viton® Seal
- Designed to be used in corrosive and non-corrosive applications
- Pump Can Handle Liquids Such As
- Beverages, fruit juices, coffee, milk, cream
- Detergents, ethylene glycol, oils and acids
- 20' Power Cord
- 1-Year Warranty
Specifications
DCM-100
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
11.3
Pump
Gallons Per Minute
90 Gallons
Outlet Diameter
2 Inch
Pump Head Material
Steel
Mechanical Seal Material
Ceramic Carbon
Housing Material
Stainless Steel
Impeller Material
Aluminum
Solids Handling Size
.375 inch

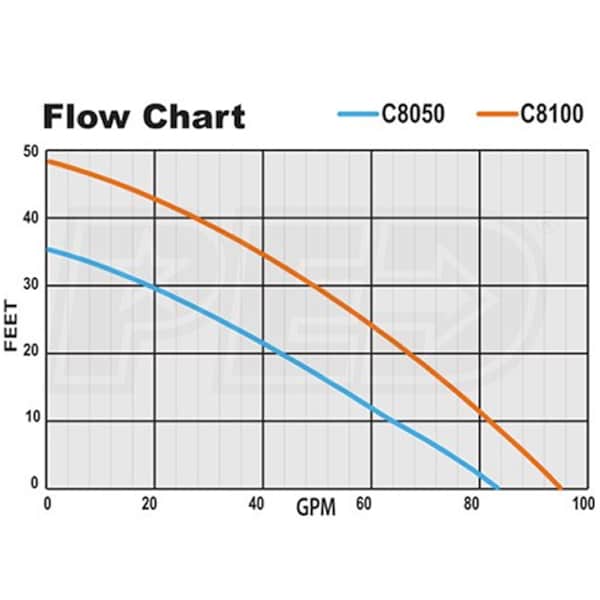

GPH @ 0 feet
5400
GPH @ 5 feet
5400
GPH @ 10 feet
4920
GPH @ 15 feet
4140
GPH @ 20 feet
3660
Max Head
49 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Shaft Seal
Ceramic Carbon
Horsepower
1 hp
Overview
Product Category
Water Pump
Weight
46 Pounds
Consumer Warranty
1 Year
Product Length
10.4 Inches
Product Width
7.5 Inches
Product Height
18.125 Inches
Additional Model Numbers
C8100-NS, DCM-100
Reviews
Pro Series DCM-100 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Jim, the Water Pump Expert
How-To Articles
How to Get Water Off Your Pool Cover
Every spring season, millions of Americans are faced with the dilemma of decidi...
How to Pick the Perfect Electric Water Pump
Electric water pumps are extremely versatile and have many different uses for ap...
Water Pumps How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

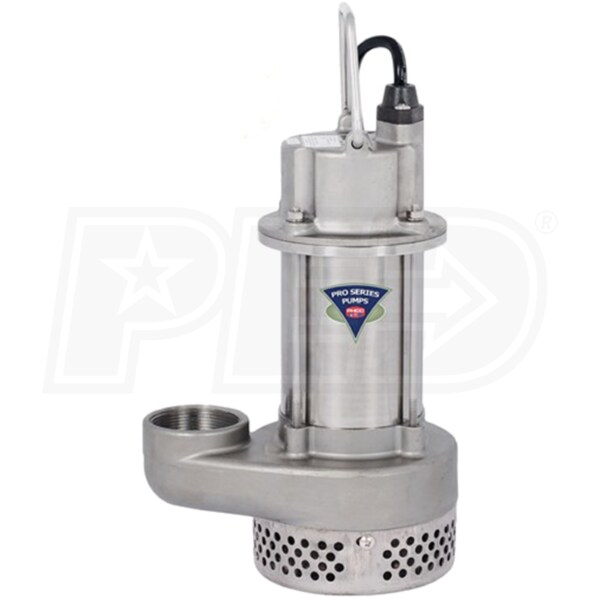

Pro Series C8100-NS - 1 HP Chemical Resistant Submersible Pump
