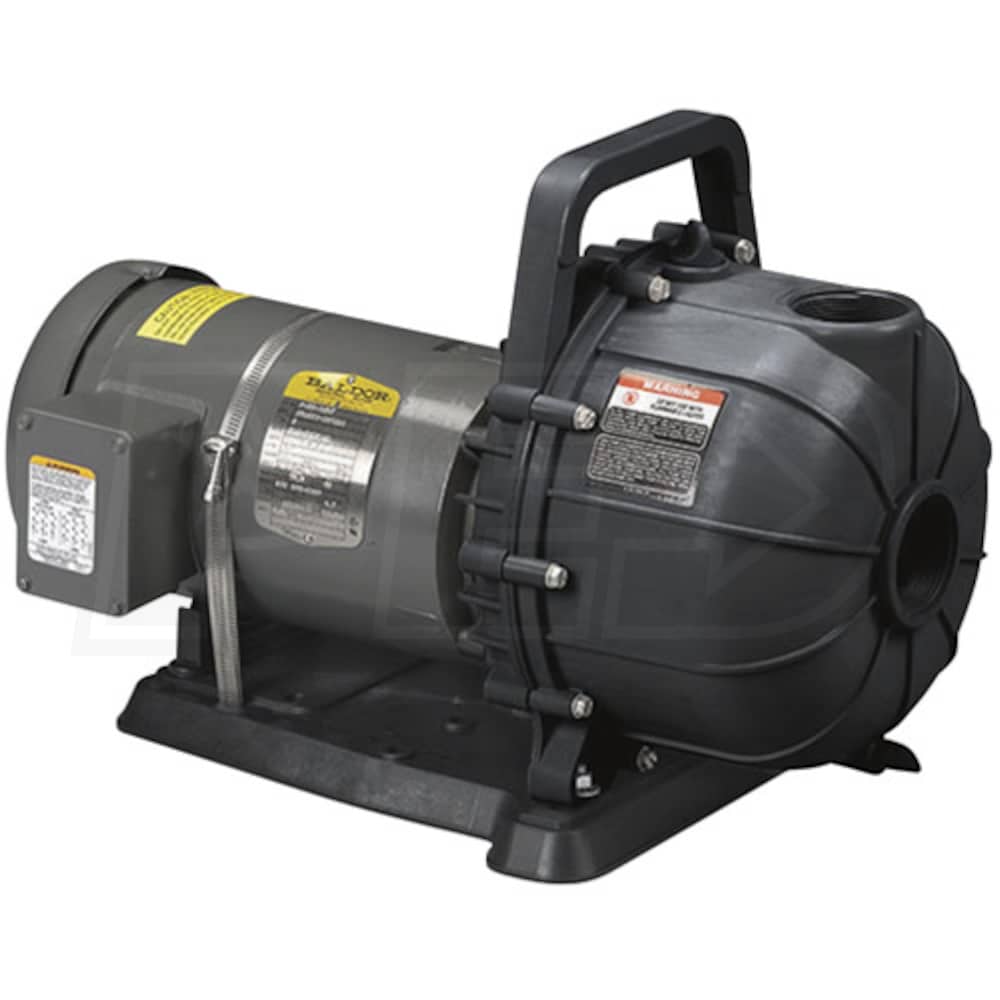

Pacer SE2JLC5.0C - 260 GPM (2") 5-HP Electric Water Pump (230V)
Pacer SE2JLC5.0C - 260 GPM (2") 5-HP Electric Water Pump (230V)
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
2"
Style
GPM
260
Gallons
Inlet Size
2"
Style
Dewatering
GPM
260 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Econo-Ag 2" Electric Multi-Purpose Pump
- Designed for agricultural, transfer & dewatering applications
- 5-HP 230V TEFC Leeson Motor (3450 RPM)
- The industry leader for dependable power you can count on
- Glass-Reinforced Polyester Housing, Volute & Impeller
- For use w/ water, salt water, waste water, mild acids & bases
- Standard EPDM Elastomers (O-Rings & Gasket)
- Compatible with many agricultural chemicals
- EPDM Fitted Stainless Steel Shaft Seal w/ Carbon-Ceramic Faces
- Extends the useful life of the pump
- Internal & External Stainless Steel Fasteners
- High quality components that are built to last
Specifications
Motor
Voltage
240 Volt
Pump
Gallons Per Minute
260 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
20 Feet
Maximum PSI
50
Total Head Lift
75 Feet
Submersible
No
Engine
Continuous Operation
Yes
Oil-Cooled
No
Horsepower
5 hp
Accessories
Strainer
Sold Separately
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
Yes
Wheel Kit
Optional
Overview
Weight
130 Pounds
Inlet Size
2"
Style
GPM
260
Gallons
Inlet Size
2"
Style
Dewatering
GPM
260 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Econo-Ag 2" Electric Multi-Purpose Pump
- Designed for agricultural, transfer & dewatering applications
- 5-HP 230V TEFC Leeson Motor (3450 RPM)
- The industry leader for dependable power you can count on
- Glass-Reinforced Polyester Housing, Volute & Impeller
- For use w/ water, salt water, waste water, mild acids & bases
- Standard EPDM Elastomers (O-Rings & Gasket)
- Compatible with many agricultural chemicals
- EPDM Fitted Stainless Steel Shaft Seal w/ Carbon-Ceramic Faces
- Extends the useful life of the pump
- Internal & External Stainless Steel Fasteners
- High quality components that are built to last
Specifications
Motor
Voltage
240 Volt
Pump
Gallons Per Minute
260 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
20 Feet
Maximum PSI
50
Total Head Lift
75 Feet
Submersible
No
Engine
Continuous Operation
Yes
Oil-Cooled
No
Horsepower
5 hp
Accessories
Strainer
Sold Separately
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
Yes
Wheel Kit
Optional
Overview
Weight
130 Pounds
Product Specs
+−
Specifications
Motor
Voltage
240 Volt
Pump
Gallons Per Minute
260 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
20 Feet
Maximum PSI
50
Total Head Lift
75 Feet
Submersible
No
Engine
Continuous Operation
Yes
Oil-Cooled
No
Horsepower
5 hp
Accessories
Strainer
Sold Separately
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
Yes
Wheel Kit
Optional
Overview
Weight
130 Pounds
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
What is the maximum pressure of this pump (( SE2JLC5.0C Pacer pump ) 230V 1ph). I need to know the pump curve ( pressure to volume relation.
Ken
from Arizona
February 10, 2012
Answer
The maximum pressure this pump can produce is 32 psi at the shut off point. In other words at 32 psi you would be getting no flow, which means the working pressure will be some what lower depending on how many gallons per minute you are pumping. The maximum flow, measured right at the discharge is 240 GPM.
