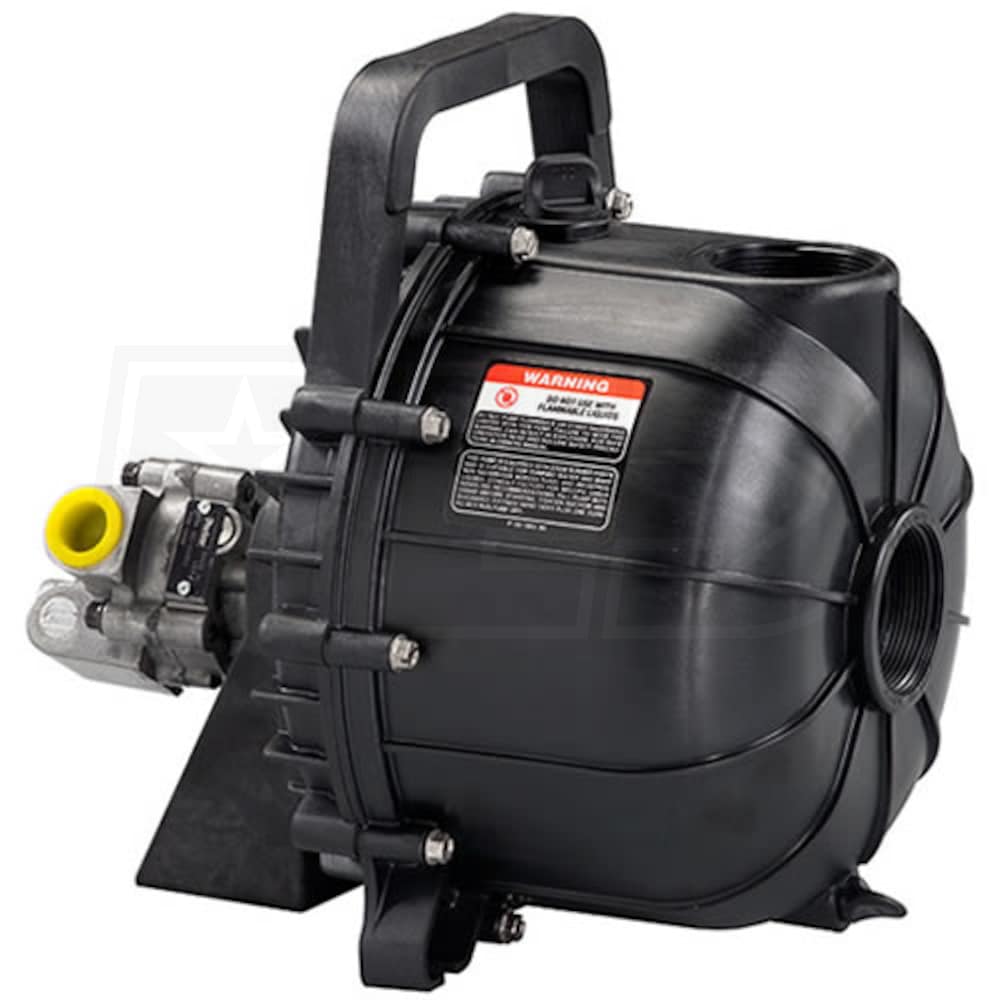

Pacer SE2FLHYC - 160 GPM (2") Hydraulic Drive Water Pump

Pacer SE2FLHYC - 160 GPM (2") Hydraulic Drive Water Pump
Model: SE2FL HYC
$499.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
2"
Style
Dewatering Pumps
GPM
160
Gallons
Inlet Size
2"
Style
Dewatering
GPM
160 Gallons
Features
Features
  • S-Series 2" Multi-Purpose Hydraulic Drive Pump
  • Designed for agricultural, transfer & dewatering applications
  • Requires 3-HP @ 3450 RPM
  • Hydraulic Fluid @ 9 GPM & 750 PSI fluid pressure required
  • 50 PSI Gauge reading @ 3450 RPM
  • 9gpm, 1200psi at 3450rpm to achieve 160gpm water flow
  • Hydraulic Pump Fittings – 5/8 tube 7/8 – 14UNF-2B thread SAE10
  • Glass-Reinforced Polyester Housing, Volute & Impeller
  • For use w/ water, salt water, waste water, mild acids & bases
  • Standard EPDM Elastomers (O-Rings & Gasket)
  • Compatible with many agricultural chemicals
  • EPDM Fitted Stainless Steel Shaft Seal w/ Carbon-Ceramic Faces
  • Extends the useful life of the pump
  • Internal & External Stainless Steel Fasteners
  • High quality components that are built to last
  • Includes Pressure Gauge
  • Easily obtain the correct operating speed for optimal performance
  • Hydraulics - 9gpm, 1200psi at 3450rpm to achieve 160gpm flow
  • Hydraulic fittings on pump – 5/8 tube 7/8 – 14UNF-2B thread SAE10
Specifications
Engine
Continuous Operation
Yes
Pump
Gallons Per Minute
160 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
115 Feet
Maximum PSI
50
Submersible
No
Accessories
Strainer
Sold Separately
Hose
Sold Separately
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
Yes
Wheel Kit
No
Overview
Weight
16 Pounds
Consumer Warranty
1 Year

Inlet Size
2"
Style
Dewatering Pumps
GPM
160
Gallons
Inlet Size
2"
Style
Dewatering
GPM
160 Gallons
Features
Features
  • S-Series 2" Multi-Purpose Hydraulic Drive Pump
  • Designed for agricultural, transfer & dewatering applications
  • Requires 3-HP @ 3450 RPM
  • Hydraulic Fluid @ 9 GPM & 750 PSI fluid pressure required
  • 50 PSI Gauge reading @ 3450 RPM
  • 9gpm, 1200psi at 3450rpm to achieve 160gpm water flow
  • Hydraulic Pump Fittings – 5/8 tube 7/8 – 14UNF-2B thread SAE10
  • Glass-Reinforced Polyester Housing, Volute & Impeller
  • For use w/ water, salt water, waste water, mild acids & bases
  • Standard EPDM Elastomers (O-Rings & Gasket)
  • Compatible with many agricultural chemicals
  • EPDM Fitted Stainless Steel Shaft Seal w/ Carbon-Ceramic Faces
  • Extends the useful life of the pump
  • Internal & External Stainless Steel Fasteners
  • High quality components that are built to last
  • Includes Pressure Gauge
  • Easily obtain the correct operating speed for optimal performance
  • Hydraulics - 9gpm, 1200psi at 3450rpm to achieve 160gpm flow
  • Hydraulic fittings on pump – 5/8 tube 7/8 – 14UNF-2B thread SAE10
Specifications
Engine
Continuous Operation
Yes
Pump
Gallons Per Minute
160 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
115 Feet
Maximum PSI
50
Submersible
No
Accessories
Strainer
Sold Separately
Hose
Sold Separately
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
Yes
Wheel Kit
No
Overview
Weight
16 Pounds
Consumer Warranty
1 Year
Product Specs
+
Specifications
Engine
Continuous Operation
Yes
Pump
Gallons Per Minute
160 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
115 Feet
Maximum PSI
50
Submersible
No
Accessories
Strainer
Sold Separately
Hose
Sold Separately
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
Yes
Wheel Kit
No
Overview
Weight
16 Pounds
Consumer Warranty
1 Year
Reviews
(1)
+
Pacer SE2FL HYC Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
Is this pump suitable to use for fertilizer 10-34-0 / 28% / ect.
Greg Dickey
from Illinois
January 17, 2013
Answer
These pumps are fitted with EPDM seals, which is compatible with most agricultural chemicals including liquid fertilizer.
