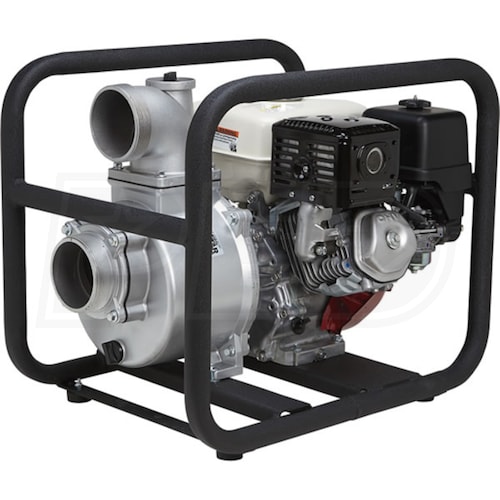

Northstar 109183 - 384 GPM (4") Semi-Trash Water Pump w/ Honda Engine

Northstar 109183 - 384 GPM (4") Semi-Trash Water Pump w/ Honda Engine



Product Discontinued Product Discontinued
Share
  • Product Description
  • Reviews
  • How-To Articles
Product Description
+

Inlet Size
4"
Style
Semi-Trash Pumps
GPM
384
Gallons
Engine
Inlet Size
4"
Style
Semi-Trash
GPM
384 Gallons
Engine
Honda GX
Features
Features
  • Dependable Honda GX270 Engine
  • Fuel efficient, quiet operation job after job
  • Adjustable throttle to control pressure
  • High Performance 23,040 GPH Pump
  • 23 foot suction lift & 91 foot head moves water high & far
  • Handles up to 3/4" solids
  • Check valve holds a prime while the pump is not running
  • Silicon Carbide Mechanical Seal
  • 2 times harder, 15% tougher, & 50% stronger than common seals
  • FCD45 Cast Iron Impeller & Cast Iron Volute
  • Last longer & reduce vibration
  • Endurance tested nonstop for over 1000 hours
  • 4" Suction & Intake Ports
  • Standard NPT threads attach to common hoses
  • Industrial 1 3/8" Steel Roll Cage
  • Fully welded to hold up to jobsite abuse
  • Rubber engine isolation mounts for less vibration
  • DuPont« Black Wrinkle TGIC Polyester Electrostatic Finish
  • Provides extra durability
Specifications
Pump
Gallons Per Minute
384 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Suction Head
23 Feet
Total Head Lift
91 Feet
Maximum PSI
40
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
270 cc
Fuel Tank Size
1.4 Gallons
Accessories
Tool Kit
No
Strainer
No
Control Box
No
Hose
No
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
80 Pounds
Product Length
25 Inches
Product Width
18 Inches
Product Height
20 3/4 Inches
Consumer Warranty
2 Years

Inlet Size
4"
Style
Semi-Trash Pumps
GPM
384
Gallons
Engine
Inlet Size
4"
Style
Semi-Trash
GPM
384 Gallons
Engine
Honda GX
Features
Features
  • Dependable Honda GX270 Engine
  • Fuel efficient, quiet operation job after job
  • Adjustable throttle to control pressure
  • High Performance 23,040 GPH Pump
  • 23 foot suction lift & 91 foot head moves water high & far
  • Handles up to 3/4" solids
  • Check valve holds a prime while the pump is not running
  • Silicon Carbide Mechanical Seal
  • 2 times harder, 15% tougher, & 50% stronger than common seals
  • FCD45 Cast Iron Impeller & Cast Iron Volute
  • Last longer & reduce vibration
  • Endurance tested nonstop for over 1000 hours
  • 4" Suction & Intake Ports
  • Standard NPT threads attach to common hoses
  • Industrial 1 3/8" Steel Roll Cage
  • Fully welded to hold up to jobsite abuse
  • Rubber engine isolation mounts for less vibration
  • DuPont« Black Wrinkle TGIC Polyester Electrostatic Finish
  • Provides extra durability
Specifications
Pump
Gallons Per Minute
384 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Suction Head
23 Feet
Total Head Lift
91 Feet
Maximum PSI
40
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
270 cc
Fuel Tank Size
1.4 Gallons
Accessories
Tool Kit
No
Strainer
No
Control Box
No
Hose
No
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
80 Pounds
Product Length
25 Inches
Product Width
18 Inches
Product Height
20 3/4 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Pump
Gallons Per Minute
384 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Suction Head
23 Feet
Total Head Lift
91 Feet
Maximum PSI
40
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
270 cc
Fuel Tank Size
1.4 Gallons
Accessories
Tool Kit
No
Strainer
No
Control Box
No
Hose
No
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
80 Pounds
Product Length
25 Inches
Product Width
18 Inches
Product Height
20 3/4 Inches
Consumer Warranty
2 Years
