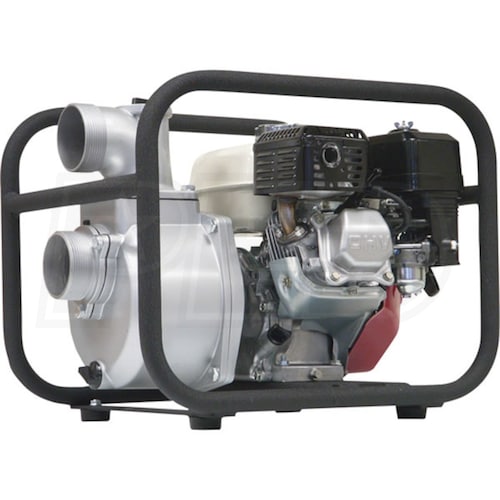

Northstar 109173 - 264 GPM (3") Semi-Trash Water Pump w/ Honda Engine

Northstar 109173 - 264 GPM (3") Semi-Trash Water Pump w/ Honda Engine



Product Discontinued Product Discontinued
Share
  • Product Description
  • Reviews
  • How-To Articles
Product Description
+

Inlet Size
3"
Style
Semi-Trash Pumps
GPM
264
Gallons
Engine
Inlet Size
3"
Style
Semi-Trash
GPM
264 Gallons
Engine
Honda GX
Features
Features
  • Dependable Honda GX160 Engine
  • Fuel efficient, quiet operation job after job
  • Adjustable throttle to control pressure
  • High Performance 15,850 GPH Pump With 2 Hour Fuel Tank
  • 23 foot suction lift & 98 foot head moves water high & far
  • Handles up to 3/4" solids
  • Check valve holds a prime while the pump is not running
  • Silicon Carbide Mechanical Seal
  • 2 times harder, 15% tougher, & 50% stronger than common seals
  • FCD45 Cast Iron Impeller & Cast Iron Volute
  • Last longer & reduce vibration
  • Endurance tested nonstop for over 1000 hours
  • 3" Suction & Intake Ports
  • Standard NPT threads attach to common hoses
  • Industrial 1" Steel Roll Cage
  • Fully welded to hold up to jobsite abuse
  • Rubber engine isolation mounts for less vibration
  • DuPont« Black Wrinkle TGIC Polyester Electrostatic Finish
  • Provides extra durability
Specifications
Pump
Gallons Per Minute
264 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Suction Head
23 Feet
Total Head Lift
98 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
160 cc
Fuel Tank Size
0.82 Gallons
Run Time
2 Hours
Accessories
Tool Kit
No
Strainer
No
Control Box
No
Hose
No
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
65 Pounds
Product Length
20 3/8 Inches
Product Width
15 7/8 Inches
Product Height
16 1/8 Inches
Consumer Warranty
2 Years

Inlet Size
3"
Style
Semi-Trash Pumps
GPM
264
Gallons
Engine
Inlet Size
3"
Style
Semi-Trash
GPM
264 Gallons
Engine
Honda GX
Features
Features
  • Dependable Honda GX160 Engine
  • Fuel efficient, quiet operation job after job
  • Adjustable throttle to control pressure
  • High Performance 15,850 GPH Pump With 2 Hour Fuel Tank
  • 23 foot suction lift & 98 foot head moves water high & far
  • Handles up to 3/4" solids
  • Check valve holds a prime while the pump is not running
  • Silicon Carbide Mechanical Seal
  • 2 times harder, 15% tougher, & 50% stronger than common seals
  • FCD45 Cast Iron Impeller & Cast Iron Volute
  • Last longer & reduce vibration
  • Endurance tested nonstop for over 1000 hours
  • 3" Suction & Intake Ports
  • Standard NPT threads attach to common hoses
  • Industrial 1" Steel Roll Cage
  • Fully welded to hold up to jobsite abuse
  • Rubber engine isolation mounts for less vibration
  • DuPont« Black Wrinkle TGIC Polyester Electrostatic Finish
  • Provides extra durability
Specifications
Pump
Gallons Per Minute
264 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Suction Head
23 Feet
Total Head Lift
98 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
160 cc
Fuel Tank Size
0.82 Gallons
Run Time
2 Hours
Accessories
Tool Kit
No
Strainer
No
Control Box
No
Hose
No
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
65 Pounds
Product Length
20 3/8 Inches
Product Width
15 7/8 Inches
Product Height
16 1/8 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Pump
Gallons Per Minute
264 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Suction Head
23 Feet
Total Head Lift
98 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
160 cc
Fuel Tank Size
0.82 Gallons
Run Time
2 Hours
Accessories
Tool Kit
No
Strainer
No
Control Box
No
Hose
No
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
65 Pounds
Product Length
20 3/8 Inches
Product Width
15 7/8 Inches
Product Height
16 1/8 Inches
Consumer Warranty
2 Years
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Be the first to ask a question.
How-To Articles
+


×
