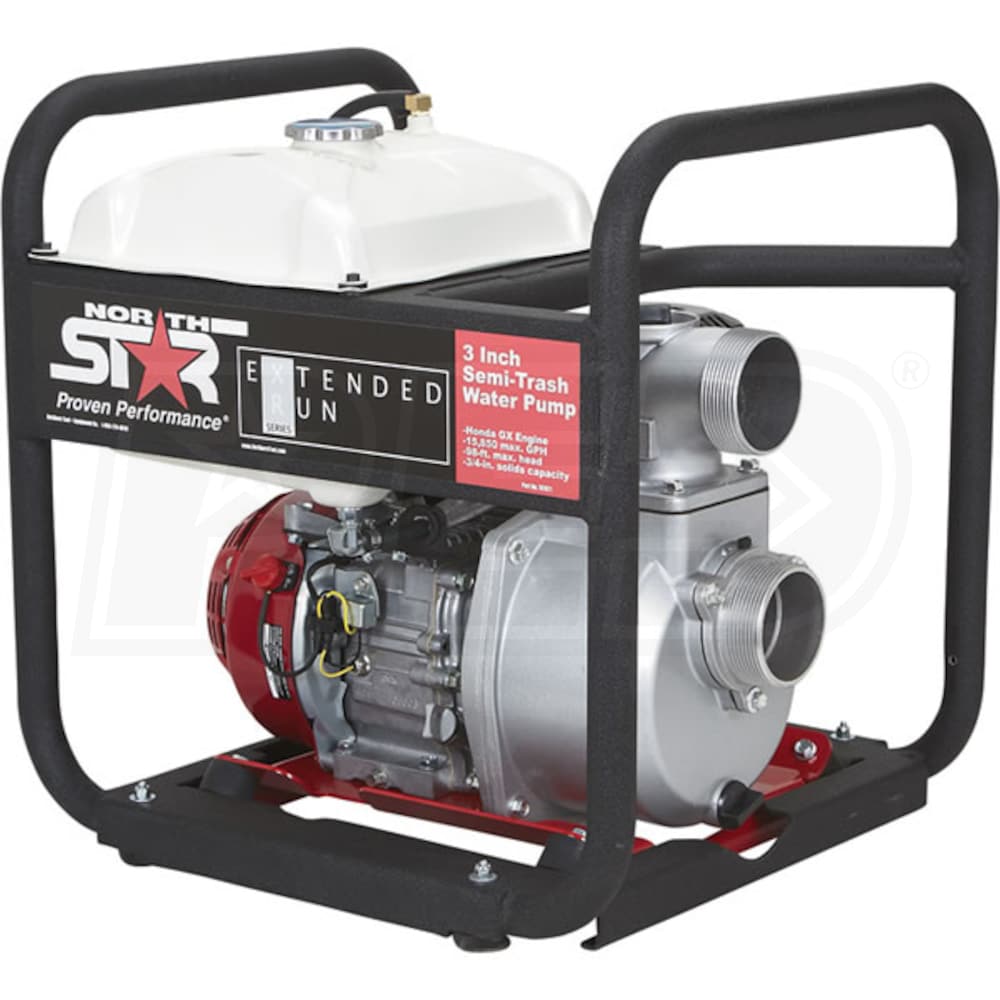

Northstar 109171 - 264 GPM (3") Extended Run Semi-Trash Water Pump w/ Honda Engine

Close
NorthStar Water Pumps and Accessories
Model: 109171
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!



Product Discontinued Product Discontinued
  • Features
  • Specs
  • Reviews
  • Articles

Inlet Size
3"
Style
Semi-Trash Pumps
GPM
264
Gallons
Engine
Dependable Honda GX200 Engine
Fuel efficient, quiet operation job after job
Adjustable throttle to control pressure

High Performance 15,850 GPH Pump With 8 Hour Fuel Tank
23 foot suction lift & 98 foot head moves water high & far
Designed for marathon pumping jobs; handles up to 3/4" solids
Check valve holds a prime while the pump is not running

Silicon Carbide Mechanical Seal
2 times harder, 15% tougher, & 50% stronger than common seals

Cast Iron Impeller & Cast Iron Volute
Last longer & reduce vibration
Endurance tested nonstop for over 1000 hours

3" Suction & Intake Ports
Standard NPT threads attach to common hoses

Industrial 1 1/4" Steel Roll Cage
Fully welded to hold up to jobsite abuse
Rubber engine isolation mounts for less vibration

DuPont« Black Wrinkle TGIC Polyester Electrostatic Finish
Provides extra durability


Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
4.78 hp
CC
200 cc
Fuel Tank Size
3.5 Gallons
Run Time
8 Hours
Pump
Gallons Per Minute
264 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Suction Head
23 Feet
Total Head Lift
98 Feet
Submersible
No
Accessories
Tool Kit
No
Strainer
No
Control Box
No
Hose
No
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
84 Pounds
Product Length
21 7/8 Inches
Product Width
18 5/8 Inches
Product Height
20 Inches
Consumer Warranty
2 Years
Model
109171
