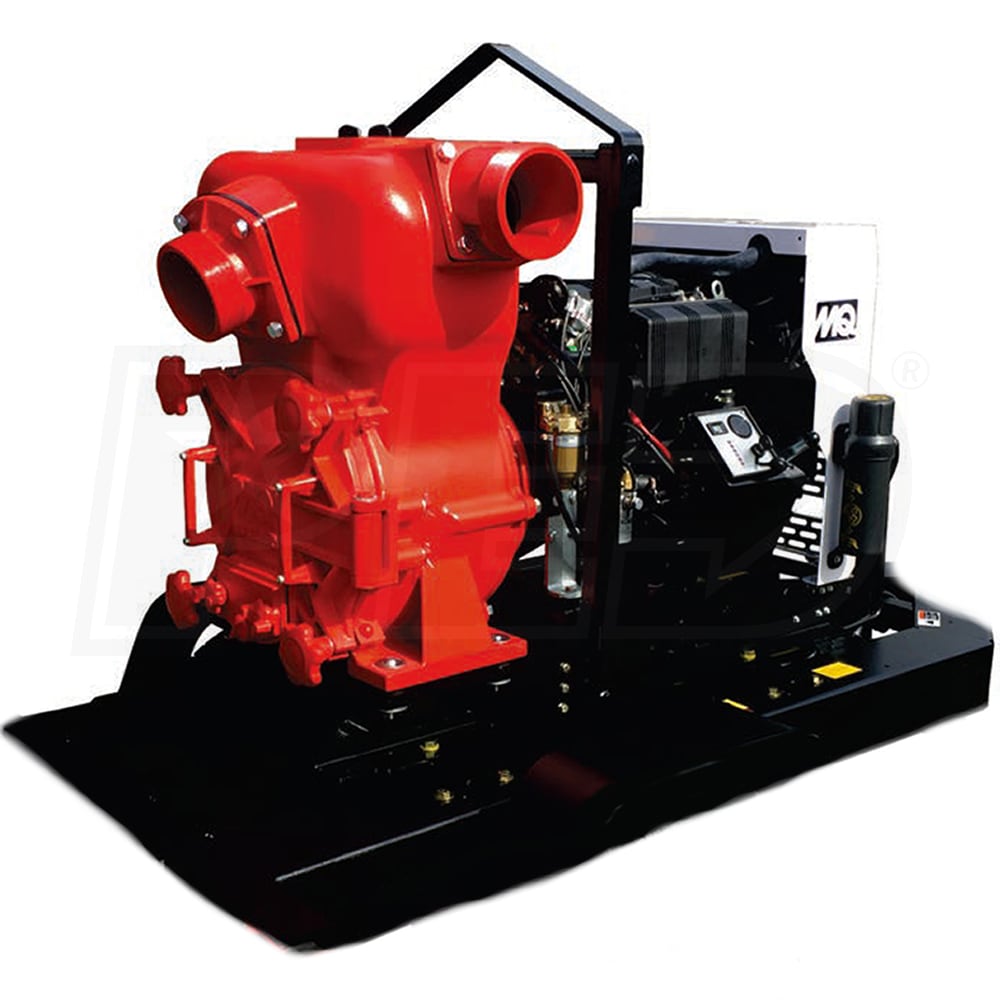

Multiquip MQ62TKS - 1190 GPM (6") Skid Mount Electric Start Diesel Trash Pump w/ 16-Gallon Fuel Cell
Multiquip MQ62TKS - 1190 GPM (6") Skid Mount Electric Start Diesel Trash Pump w/ 16-Gallon Fuel Cell
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
6"
Style
GPM
1190
Gallons
Engine
Inlet Size
6"
Style
Trash
GPM
1190 Gallons
Engine
Kohler
Features
Features
- 6" Multiquip Wet Priming Skid Mounted Diesel Trash Pump
- Ideal for high volume water removal
- Electric Start (Battery Not Included)
- Allows for quick and easy starting
- Kohler KDW1404 4-Cylinder, Liquid-Cooled Diesel Engine
- Advanced injection system for more efficient fuel delivery
- Triple fuel filtration w/ RACOR™ water separator/fuel filter
- Complies w/ EPA/CARB Tier IV (F) emissions regulations
- Shock Mounted, LOFA EL240 Control Panel
- Easily monitor coolant temp, oil pressure, preheat status and in-use hours
- 16-Gallon, Skid-Mounted Fuel Cell
- Provides a run time of up to 8.6 Hours
- Wet-Primed Design
- Requires pump casing to be filled first to assist with initial-priming
- Industrial Grade Cast Iron Pump Body & Stainless Steel Wear Plate
- Provides superior abrasion-resistance for demanding applications
- Double Volute - Can Pass 3-Inch Solids
- Specially engineered for improved flow, less clogging and fast priming
- Open Multi-Vane (#45) Ductile Iron Impeller
- Dynamically balanced design for long life
- Large Clean-Out Cover - No Tools Required
- Removes in seconds, gets the pump back in service fast
- Oil Lubricated Tungsten/Carbide Seal System
- Pro style design, provides superior abrasion and heat resistance
- Integrated Lifting Bale
- Makes this pump easy to load and unload from flatbed truck
- 2-Year Pump & 3-Year Engine Limited Warranty
Specifications
Pump
Gallons Per Minute
1190 Gallons
Inlet Diameter
6"
Outlet Diameter
6"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Tungsten Carbide
Impeller Material
Cast Iron
Solids Handling Size
3 inch
Handles Solids
Yes
Suction Head
25 Feet
Maximum PSI
48
Total Head Lift
111 Feet
Submersible
No
Engine
Engine Brand
Kohler
Starting System
12-Volt Key Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
24 hp
CC
1372 cc
Fuel Tank Size
16 Gallons
Run Time
8.6 Hours
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Overview
Weight
1560 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
80 Inches
Product Width
23 Inches
Product Height
44 Inches
Inlet Size
6"
Style
GPM
1190
Gallons
Engine
Inlet Size
6"
Style
Trash
GPM
1190 Gallons
Engine
Kohler
Features
Features
- 6" Multiquip Wet Priming Skid Mounted Diesel Trash Pump
- Ideal for high volume water removal
- Electric Start (Battery Not Included)
- Allows for quick and easy starting
- Kohler KDW1404 4-Cylinder, Liquid-Cooled Diesel Engine
- Advanced injection system for more efficient fuel delivery
- Triple fuel filtration w/ RACOR™ water separator/fuel filter
- Complies w/ EPA/CARB Tier IV (F) emissions regulations
- Shock Mounted, LOFA EL240 Control Panel
- Easily monitor coolant temp, oil pressure, preheat status and in-use hours
- 16-Gallon, Skid-Mounted Fuel Cell
- Provides a run time of up to 8.6 Hours
- Wet-Primed Design
- Requires pump casing to be filled first to assist with initial-priming
- Industrial Grade Cast Iron Pump Body & Stainless Steel Wear Plate
- Provides superior abrasion-resistance for demanding applications
- Double Volute - Can Pass 3-Inch Solids
- Specially engineered for improved flow, less clogging and fast priming
- Open Multi-Vane (#45) Ductile Iron Impeller
- Dynamically balanced design for long life
- Large Clean-Out Cover - No Tools Required
- Removes in seconds, gets the pump back in service fast
- Oil Lubricated Tungsten/Carbide Seal System
- Pro style design, provides superior abrasion and heat resistance
- Integrated Lifting Bale
- Makes this pump easy to load and unload from flatbed truck
- 2-Year Pump & 3-Year Engine Limited Warranty
Specifications
Pump
Gallons Per Minute
1190 Gallons
Inlet Diameter
6"
Outlet Diameter
6"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Tungsten Carbide
Impeller Material
Cast Iron
Solids Handling Size
3 inch
Handles Solids
Yes
Suction Head
25 Feet
Maximum PSI
48
Total Head Lift
111 Feet
Submersible
No
Engine
Engine Brand
Kohler
Starting System
12-Volt Key Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
24 hp
CC
1372 cc
Fuel Tank Size
16 Gallons
Run Time
8.6 Hours
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Overview
Weight
1560 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
80 Inches
Product Width
23 Inches
Product Height
44 Inches
Product Specs
+−
Specifications
Pump
Gallons Per Minute
1190 Gallons
Inlet Diameter
6"
Outlet Diameter
6"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Tungsten Carbide
Impeller Material
Cast Iron
Solids Handling Size
3 inch
Handles Solids
Yes
Suction Head
25 Feet
Maximum PSI
48
Total Head Lift
111 Feet
Submersible
No
Engine
Engine Brand
Kohler
Starting System
12-Volt Key Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
24 hp
CC
1372 cc
Fuel Tank Size
16 Gallons
Run Time
8.6 Hours
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Overview
Weight
1560 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
80 Inches
Product Width
23 Inches
Product Height
44 Inches
