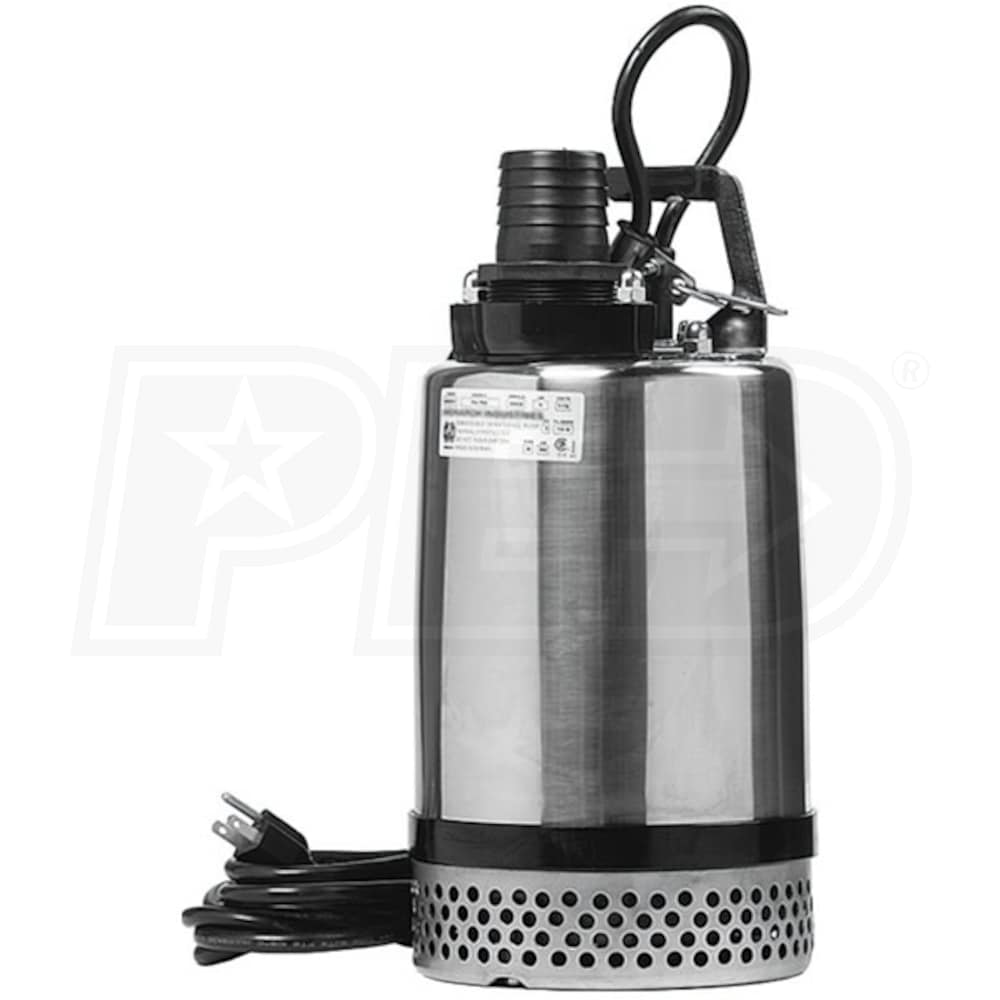

Little Giant FS-750 - 80 GPM (2") Stainless Steel Submersible Utility Pump 620241
Model:
620241
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
N/A
Style
Utility
GPM
80 Gallons
- Stainless Steel Submersible Utility Pump
- A great pump for general dewatering around the home or job site
- 1 HP PSC Continuous Duty Motor w/ Built-In Thermal Protection
- Turns off the power in case of overload to protect the pump
- Compact Design w/ Top Mount Discharge
- Narrow width of pump (7.244") is great for tight applications
- Stainless Steel Casing
- Lightweight & durable design resists corrosion
- Dynamically Balanced Ductile Iron Impeller
- The ability to move 4800 GPH @ 5' head & pass 1/4" solids
- Stainless Steel Motor Shaft & Double Mechanical Seals
- Designed to extend the pump life
- 2" NPT Discharge
- High volume design to provide maximum water flow
- 20-Foot Power Cord
- Sealed at motor housing for a watertight fit
- 2-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
620241
Motor
Voltage
120 Volt
Running Amps
10
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Gallons Per Minute
80 Gallons
Outlet Diameter
2 Inch
Mechanical Seal Material
Silicon Carbide
Housing Material
Stainless Steel
Impeller Material
Cast Iron
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
52 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Horsepower
1 hp
Accessories
Float Switch
No
Transport Handle
Yes
Overview
Weight
37 Pounds
Consumer Warranty
2 Years
Product Width
7.244 Inches
Product Height
13.9 Inches
UPC
00010121126350
Additional Model Numbers
FS-750, 620241
