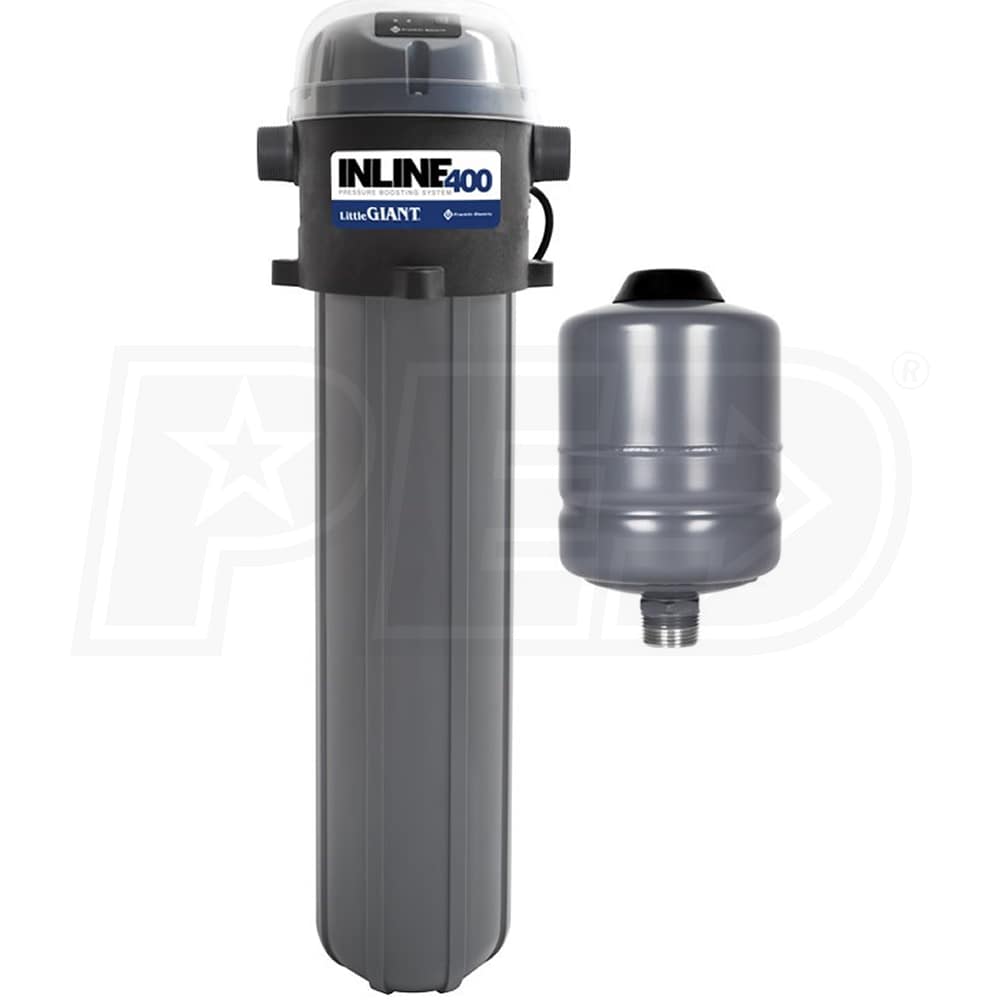

Little Giant Inline 400 Booster System (230V) w/ Expansion Tank
Model: 92061534
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style
GPM
20
Gallons
Inlet Size
1-1/4"
GPM
20 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Little Giant Inline 400 Pressure Boosting System (230V)
- A compact & economical way to meet all of your pressure boosting needs
- Easy Installation (Vertically or Horizontally) w/ 1-1/4" NPT In/Out
- Enables the pump to work with existing plumbing configuration
- Multi-Application Design
- Boost water pressure from municipal source & irrigation systems
- Pressurize from cistern tanks & re-pressurize after filtration
- Franklin Electric Motor Pump & 1/3 HP Motor (230V)
- Creates the most trustworthy product on the market
- Simple, Flow Based Control
- You get the pressure every time you need it
- Whisper Quiet Operation
- Keeps the peace around the house
- Added Protection
- Over/Under voltage protection, dry run, and over temperature
- 6' Power Cord w/ Plug
- Plug & play design, does NOT need to be hardwired
- Max Water Temperature 120°F
- Also Includes
- Expansion Tank
- 2-Year Limited Warranty
- Engineered, Designed IN THE USA
Specifications
Motor
Voltage
240 Volt
Running Amps
3.3
Pump
Gallons Per Minute
20 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1-1/4"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Housing Material
Thermoplastic
Suction Head
5 Feet
Maximum PSI
95
Submersible
No
Engine
Horsepower
0.3 hp
Overview
Weight
35 Pounds
Consumer Warranty
2 Years
Product Length
29.6 Inches
Product Width
8.5 Inches
Product Height
8.9 Inches
Inlet Size
1-1/4"
Style
GPM
20
Gallons
Inlet Size
1-1/4"
GPM
20 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Little Giant Inline 400 Pressure Boosting System (230V)
- A compact & economical way to meet all of your pressure boosting needs
- Easy Installation (Vertically or Horizontally) w/ 1-1/4" NPT In/Out
- Enables the pump to work with existing plumbing configuration
- Multi-Application Design
- Boost water pressure from municipal source & irrigation systems
- Pressurize from cistern tanks & re-pressurize after filtration
- Franklin Electric Motor Pump & 1/3 HP Motor (230V)
- Creates the most trustworthy product on the market
- Simple, Flow Based Control
- You get the pressure every time you need it
- Whisper Quiet Operation
- Keeps the peace around the house
- Added Protection
- Over/Under voltage protection, dry run, and over temperature
- 6' Power Cord w/ Plug
- Plug & play design, does NOT need to be hardwired
- Max Water Temperature 120°F
- Also Includes
- Expansion Tank
- 2-Year Limited Warranty
- Engineered, Designed IN THE USA
Specifications
Motor
Voltage
240 Volt
Running Amps
3.3
Pump
Gallons Per Minute
20 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1-1/4"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Housing Material
Thermoplastic
Suction Head
5 Feet
Maximum PSI
95
Submersible
No
Engine
Horsepower
0.3 hp
Overview
Weight
35 Pounds
Consumer Warranty
2 Years
Product Length
29.6 Inches
Product Width
8.5 Inches
Product Height
8.9 Inches
Product Specs
+−
Specifications
Motor
Voltage
240 Volt
Running Amps
3.3
Pump
Gallons Per Minute
20 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1-1/4"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Housing Material
Thermoplastic
Suction Head
5 Feet
Maximum PSI
95
Submersible
No
Engine
Horsepower
0.3 hp
Overview
Weight
35 Pounds
Consumer Warranty
2 Years
Product Length
29.6 Inches
Product Width
8.5 Inches
Product Height
8.9 Inches
