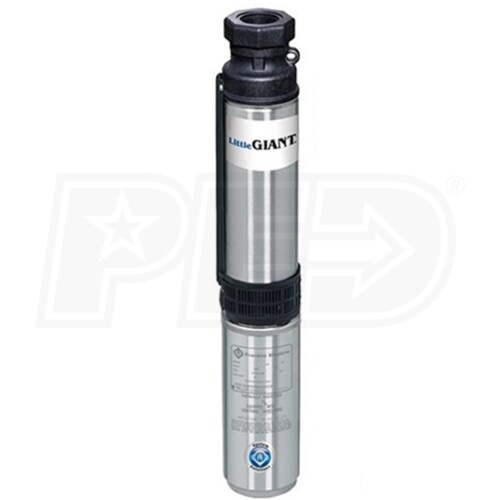

Little Giant W12G15S17-22P - 1-1/2 HP 12 GPM Deep Well Submersible Pump (2-Wire 230V)
Model: 558568
+
Share This Product
-
Product Description
-
3Reviews
-
3Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style

GPM
12
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
12 Gallons
Features
Features
- 4" Submersible Deep Well Pump (2-Wire 230V)
- Ideal for use with 4" I.D. or larger wells
- Powered By Industry Standard Franklin Electric Motor
- Proven superior quality & performance ensuring quiet operation
- Hex Rubber Bearing w/ Extra-Large Surface
- Provides shaft stability and multiple flow channels
- Keeps small particles such as sand away from bearing surfaces
- Built-In Flomatic™ Check Valve
- Prevents backflow and ensures system pressure
- Removable Suction Screen
- Helps to prevent debris from clogging impellers
- Celcon® Disk
- Provides close tolerances for increased performance
- Ceramic Bearing Sleeve & Stainless steel Up-Thrust Washer
- Prevents excessive wear and provides added durability
- 1-1/4" NPT Thermoplastic Discharge Head
- Minimizes friction while providing smooth & quiet operation
- 2-Year Warranty
- *Note* Installation Checklist Can Be Found On Spec Tab
Specifications
Motor
Voltage
240 Volt
Wire
2-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
560 Feet
Submersible
Yes
Engine
Horsepower
1.5 hp
Overview
Weight
31 Pounds
Consumer Warranty
2 Years
Product Length
35.78 Inches
Product Width
3.9 Inches
UPC
010121118539
Inlet Size
N/A
Style

GPM
12
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
12 Gallons
Features
Features
- 4" Submersible Deep Well Pump (2-Wire 230V)
- Ideal for use with 4" I.D. or larger wells
- Powered By Industry Standard Franklin Electric Motor
- Proven superior quality & performance ensuring quiet operation
- Hex Rubber Bearing w/ Extra-Large Surface
- Provides shaft stability and multiple flow channels
- Keeps small particles such as sand away from bearing surfaces
- Built-In Flomatic™ Check Valve
- Prevents backflow and ensures system pressure
- Removable Suction Screen
- Helps to prevent debris from clogging impellers
- Celcon® Disk
- Provides close tolerances for increased performance
- Ceramic Bearing Sleeve & Stainless steel Up-Thrust Washer
- Prevents excessive wear and provides added durability
- 1-1/4" NPT Thermoplastic Discharge Head
- Minimizes friction while providing smooth & quiet operation
- 2-Year Warranty
- *Note* Installation Checklist Can Be Found On Spec Tab
Specifications
Motor
Voltage
240 Volt
Wire
2-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
560 Feet
Submersible
Yes
Engine
Horsepower
1.5 hp
Overview
Weight
31 Pounds
Consumer Warranty
2 Years
Product Length
35.78 Inches
Product Width
3.9 Inches
UPC
010121118539
Product Specs
+−
Specifications
Motor
Voltage
240 Volt
Wire
2-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
560 Feet
Submersible
Yes
Engine
Horsepower
1.5 hp
Overview
Weight
31 Pounds
Consumer Warranty
2 Years
Product Length
35.78 Inches
Product Width
3.9 Inches
UPC
010121118539
Product Q&A
(3)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
In have 4 inch ID pvc well casing ..your product description says it will fit. What is the width of the pump?
Vince
from Indiana
June 16, 2016
Answer
The width of these pumps average 3.90" and WILL fit inside a 4" well casing.
If you have any other questions, please let me know.
If you have any other questions, please let me know.
Was this answer helpful?
Yes

3
No

0
+−
I plan to replace a 30 yer old pump that is at 200 ft. and lower the new pump to 250 ft in a 400 ft deep well. Will I need to a check valve mid way up as well as at the well head?
Ken G
from California
July 27, 2015
Answer
Most submersible deep well pumps include a built-in check valve at the discharge port of the pump and It is recommended that additional spring loaded in-line check valves be installed in the drop pipe @ 200ft intervals only.
Was this answer helpful?
Yes

4
No

0
+−
Hi Jim,
How many watts are used by Little Giant W12G15S17-22P - 1-1/2 HP?
Thank you
Luis
from California
May 24, 2014
Answer
Single-Phase Motor Specifications including full load and maximum load wattage ratings for all Little Giant pumps can be found HERE.
Was this answer helpful?
Yes

0
No

1
