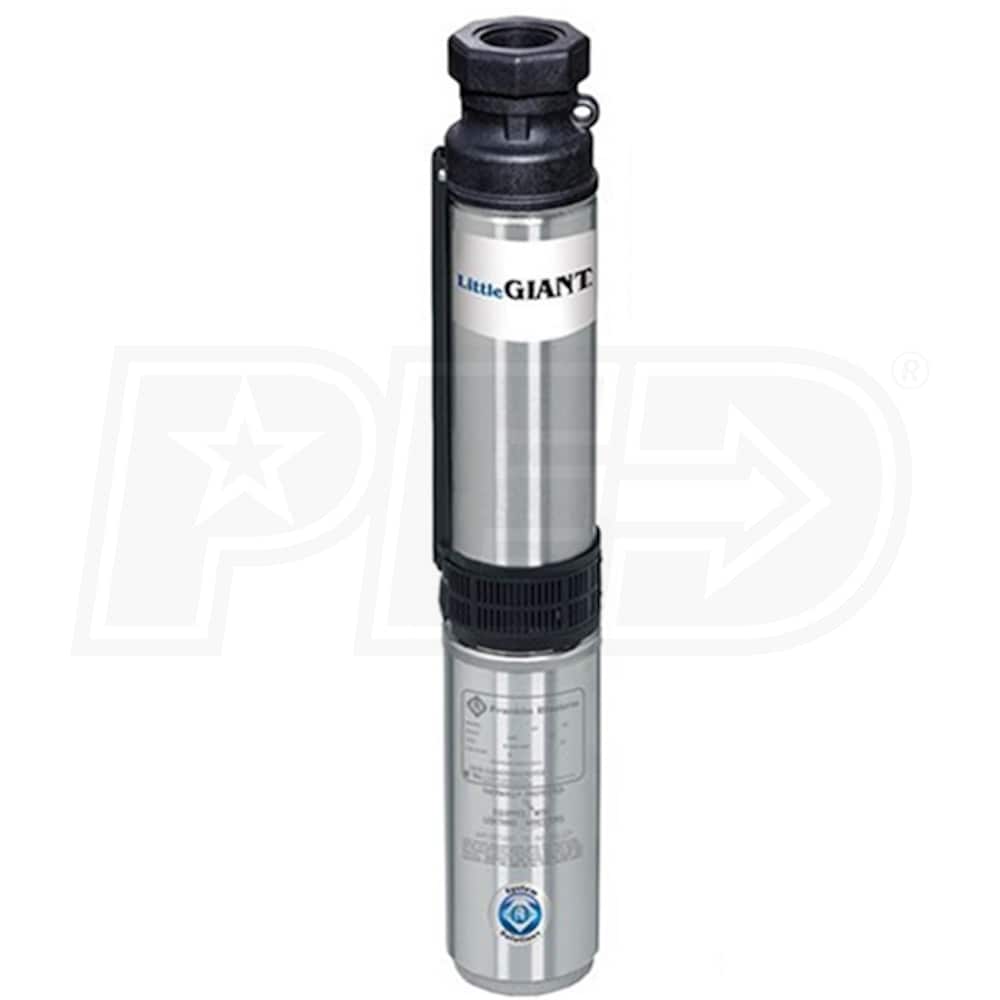

Little Giant W22G15S9-32P - 1-1/2 HP 22 GPM Deep Well Submersible Pump (3-Wire 230V)
Model: 558539
+
Share This Product
-
Product Description
-
Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style
GPM
22
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
22 Gallons
Features
Features
- *Please Note* - Requires Control Box For Operation (Not Included)
- 4" Submersible Deep Well Pump (3-Wire 230V)
- Ideal for use with 4" I.D. or larger wells
- Powered By Industry Standard Franklin Electric Motor
- Proven superior quality & performance ensuring quiet operation
- Hex Rubber Bearing w/ Extra-Large Surface
- Provides shaft stability and multiple flow channels
- Keeps small particles such as sand away from bearing surfaces
- Built-In Flomatic™ Check Valve
- Prevents backflow and ensures system pressure
- Removable Suction Screen
- Helps to prevent debris from clogging impellers
- Celcon® Disk
- Provides close tolerances for increased performance
- Ceramic Bearing Sleeve & Stainless Steel Up-Thrust Washer
- Prevents excessive wear and provides added durability
- 1-1/4" NPT Thermoplastic Discharge Head
- Minimizes friction while providing smooth & quiet operation
- 2-Year Warranty
- *Note* Installation Checklist Can Be Found On Spec Tab
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
121
Total Head Lift
280 Feet
Submersible
Yes
Engine
Horsepower
1.5 hp
Accessories
Control Box
Sold Separately
Overview
Weight
40 Pounds
Consumer Warranty
2 Years
Product Length
27 Inches
Product Width
3.9 Inches
UPC
010121134980
Inlet Size
N/A
Style
GPM
22
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
22 Gallons
Features
Features
- *Please Note* - Requires Control Box For Operation (Not Included)
- 4" Submersible Deep Well Pump (3-Wire 230V)
- Ideal for use with 4" I.D. or larger wells
- Powered By Industry Standard Franklin Electric Motor
- Proven superior quality & performance ensuring quiet operation
- Hex Rubber Bearing w/ Extra-Large Surface
- Provides shaft stability and multiple flow channels
- Keeps small particles such as sand away from bearing surfaces
- Built-In Flomatic™ Check Valve
- Prevents backflow and ensures system pressure
- Removable Suction Screen
- Helps to prevent debris from clogging impellers
- Celcon® Disk
- Provides close tolerances for increased performance
- Ceramic Bearing Sleeve & Stainless Steel Up-Thrust Washer
- Prevents excessive wear and provides added durability
- 1-1/4" NPT Thermoplastic Discharge Head
- Minimizes friction while providing smooth & quiet operation
- 2-Year Warranty
- *Note* Installation Checklist Can Be Found On Spec Tab
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
121
Total Head Lift
280 Feet
Submersible
Yes
Engine
Horsepower
1.5 hp
Accessories
Control Box
Sold Separately
Overview
Weight
40 Pounds
Consumer Warranty
2 Years
Product Length
27 Inches
Product Width
3.9 Inches
UPC
010121134980
Product Specs
+−
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
121
Total Head Lift
280 Feet
Submersible
Yes
Engine
Horsepower
1.5 hp
Accessories
Control Box
Sold Separately
Overview
Weight
40 Pounds
Consumer Warranty
2 Years
Product Length
27 Inches
Product Width
3.9 Inches
UPC
010121134980
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
If the pump says the outlet diameter is 1 1/4", can 1 1'2" pipe be used?
Frank C.
from California
May 04, 2017
Answer
It's NEVER a problem in increasing the piping diameter Frank. As long as the pump meets your specs and requirements and you're sizing the pump properly, you will be fine.
Was this answer helpful?
Yes
0
No
0
+−
What is the difference between 2 wire and 3 wire 220V pumps, which is best
Harold
from Texas
July 05, 2016
Answer
Harold,
The difference between the 2 and 3 wire pumps is that the 2-wire (actually 3 because there is a ground) includes all the pump starting components inside the pump which is located down in the well. The 3-wire (actually 4 because there is a ground) connects to a control box above ground. this control box includes all the pump starting components, i.e, quick disconnect relay, overloads and capacitors so if there is a problem and one of those components is the cause of the pump failing, it is much easier to replace those components.
The difference between the 2 and 3 wire pumps is that the 2-wire (actually 3 because there is a ground) includes all the pump starting components inside the pump which is located down in the well. The 3-wire (actually 4 because there is a ground) connects to a control box above ground. this control box includes all the pump starting components, i.e, quick disconnect relay, overloads and capacitors so if there is a problem and one of those components is the cause of the pump failing, it is much easier to replace those components.
Was this answer helpful?
Yes
0
No
0
