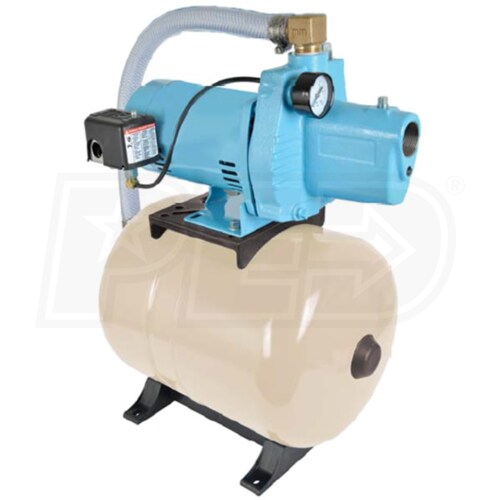

Little Giant JP-050-C/T9H - 12 GPM 1/2 HP Cast Iron Shallow Well Jet Pump System w/ 8.5-Gallon Tank
Model: 558277
+
Share This Product
-
Product Description
-
5Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style

GPM
12.8
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
12.8 Gallons
Features
Features
- 1/2 Shallow Well Jet Pump System
- Ideal for use in pumping at depths of 20' or less
- Pre-Charged 8.5 Gallon Tank
- For efficiency and high performance
- Heavy-Duty Cast Iron Casing & Seal Plate
- Built for years of reliable service
- 115/230 Volt Heavy-Duty Century Motor (3450 RPM)
- Voltage selector for simple connection to existing power source
- Pressure Switch Preset at 30/50 PSI
- Includes pressure gauge to easily monitor pump operation
- Stainless Steel Motor Shaft Seal & Dual Ball Bearings
- Minimizes corrosion extends the life of the pump
- Engineered Thermoplastic Impeller, Diffuser Nozzle & Venturi
- Designed for the highest pump efficiency and longevity
- Clean-Out Plug
- Makes it easy to unclog nozzle
- 1-Inch Discharge (3/4" Tank / T-Fitting)
- Compatible with most residential plumbing applications
- 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.5
Pump
Gallons Per Minute
12.8 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
3/4"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
64.2
Total Head Lift
148 Feet
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
56 Pounds
Consumer Warranty
2 Years
UPC
010121138513
Inlet Size
1-1/4"
Style

GPM
12.8
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
12.8 Gallons
Features
Features
- 1/2 Shallow Well Jet Pump System
- Ideal for use in pumping at depths of 20' or less
- Pre-Charged 8.5 Gallon Tank
- For efficiency and high performance
- Heavy-Duty Cast Iron Casing & Seal Plate
- Built for years of reliable service
- 115/230 Volt Heavy-Duty Century Motor (3450 RPM)
- Voltage selector for simple connection to existing power source
- Pressure Switch Preset at 30/50 PSI
- Includes pressure gauge to easily monitor pump operation
- Stainless Steel Motor Shaft Seal & Dual Ball Bearings
- Minimizes corrosion extends the life of the pump
- Engineered Thermoplastic Impeller, Diffuser Nozzle & Venturi
- Designed for the highest pump efficiency and longevity
- Clean-Out Plug
- Makes it easy to unclog nozzle
- 1-Inch Discharge (3/4" Tank / T-Fitting)
- Compatible with most residential plumbing applications
- 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.5
Pump
Gallons Per Minute
12.8 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
3/4"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
64.2
Total Head Lift
148 Feet
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
56 Pounds
Consumer Warranty
2 Years
UPC
010121138513
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.5
Pump
Gallons Per Minute
12.8 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
3/4"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
64.2
Total Head Lift
148 Feet
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
56 Pounds
Consumer Warranty
2 Years
UPC
010121138513
Product Q&A
+−
Be the first to ask a question.
Recommended Accessories
+−

Expert Recommended Accessories
Hand Picked By Our Expert Jim
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Jim O.
Manuals
+−
+
Ask Jim, Our Product Expert, A Question!
*Required Fields

+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

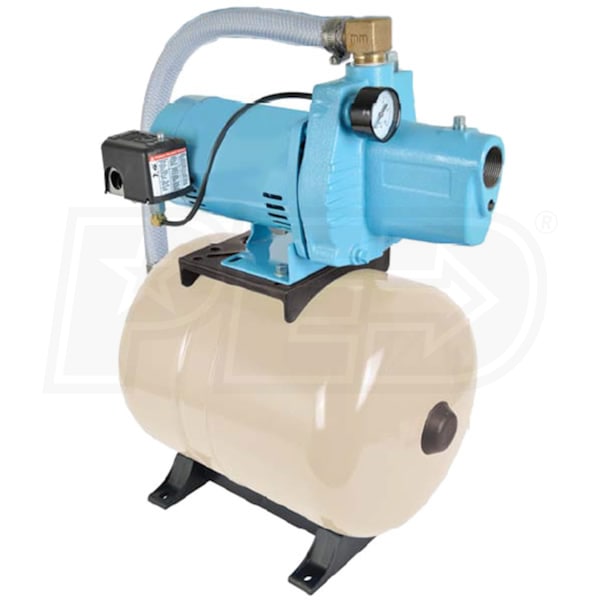

Little Giant JP-050-C/T9H - 12 GPM 1/2 HP Cast Iron Shallow Well Jet Pump System w/ 8.5-Gallon Tank


×
