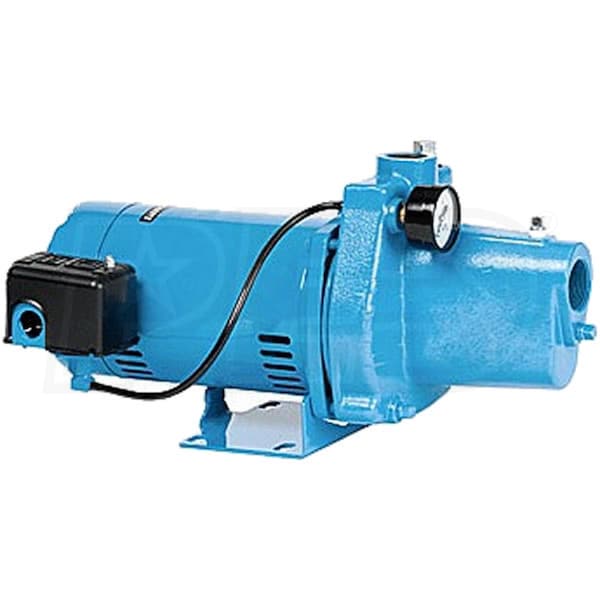

Little Giant JP-075-C - 16 GPM 3/4 HP Cast Iron Shallow Well Jet Pump
Little Giant JP-075-C - 16 GPM 3/4 HP Cast Iron Shallow Well Jet Pump
+
Share This Product
-
Product Description
-
2Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style
GPM
16.2
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
16.2 Gallons
Features
Features
- 3/4 HP Shallow Well Jet Pump
- Ideal for use in pumping at depths of 25' or less
- Heavy-Duty Cast Iron Casing & Seal Plate
- Built for years of reliable service
- 115/230 Volt Heavy-Duty Century Motor
- Voltage selector for simple connection to existing power source
- Pressure Switch Preset at 30/50 PSI
- Includes pressure gauge to easily monior pump operation
- Stainless Steel Motor Shaft Seal & Dual Ball Bearings
- Minmizes corrosion extends the life of the pump
- Engineered Thermoplastic Impeller, Diffuser Nozzle & Venturi
- Designed for the highest pump efficiency and longevity
- Clean-Out Plug
- Makes it easy to unclog nozzle
- 1-Inch Discharge
- Compatible with most residential plumbing applications
- 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
7.4
Pump
Gallons Per Minute
16.2 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Quick Clean Out
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
65
Total Head Lift
150 Feet
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Weight
38 Pounds
Consumer Warranty
2 Years
Product Length
17.9 Inches
Product Width
9.8 Inches
Product Height
9.8 Inches
UPC
010121119512
Inlet Size
1-1/4"
Style
GPM
16.2
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
16.2 Gallons
Features
Features
- 3/4 HP Shallow Well Jet Pump
- Ideal for use in pumping at depths of 25' or less
- Heavy-Duty Cast Iron Casing & Seal Plate
- Built for years of reliable service
- 115/230 Volt Heavy-Duty Century Motor
- Voltage selector for simple connection to existing power source
- Pressure Switch Preset at 30/50 PSI
- Includes pressure gauge to easily monior pump operation
- Stainless Steel Motor Shaft Seal & Dual Ball Bearings
- Minmizes corrosion extends the life of the pump
- Engineered Thermoplastic Impeller, Diffuser Nozzle & Venturi
- Designed for the highest pump efficiency and longevity
- Clean-Out Plug
- Makes it easy to unclog nozzle
- 1-Inch Discharge
- Compatible with most residential plumbing applications
- 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
7.4
Pump
Gallons Per Minute
16.2 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Quick Clean Out
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
65
Total Head Lift
150 Feet
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Weight
38 Pounds
Consumer Warranty
2 Years
Product Length
17.9 Inches
Product Width
9.8 Inches
Product Height
9.8 Inches
UPC
010121119512
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Running Amps
7.4
Pump
Gallons Per Minute
16.2 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Quick Clean Out
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
65
Total Head Lift
150 Feet
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Weight
38 Pounds
Consumer Warranty
2 Years
Product Length
17.9 Inches
Product Width
9.8 Inches
Product Height
9.8 Inches
UPC
010121119512
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
What is the best dewatering pump for suction depth of 15 meters and pumping against a head of 10 metres?
Mushabe Charles
from Virginia
January 11, 2014
Answer
Thank you for your interest in Water Pumps Direct. Your only real option for this application would be a CONVERTIBLE JET PUMP. You would need to insure that that you size the pump according to your GPM & PSI requirements. These pumps can handle a maximum suction lift of just over 27 meters.
