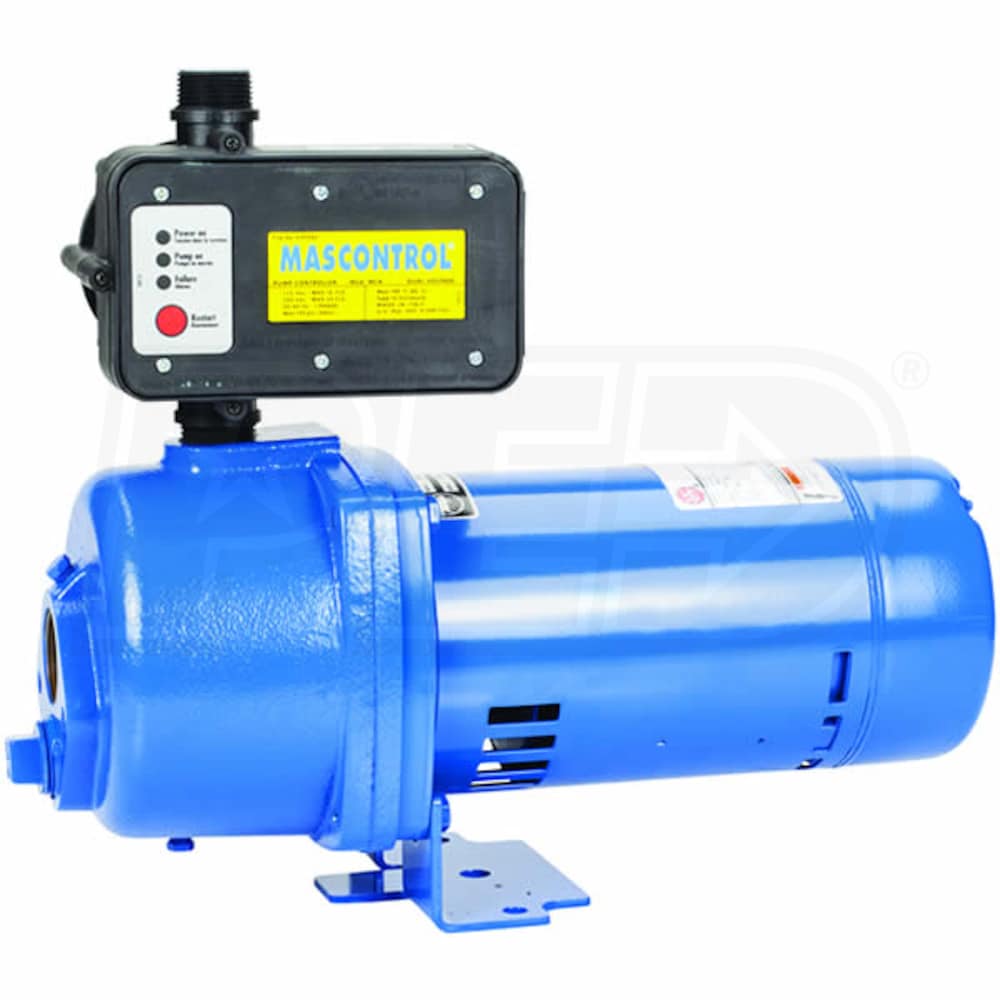

Lancaster Pump SK75BOSS125 - 3/4 HP City Boss Water Pressure Booster Pump w/ MASCONTROL®
Model: 1-SK75BOSS125
+
Share This Product
-
Product Description
-
1Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style
GPM
22
Gallons
Inlet Size
1-1/4"
GPM
22 Gallons
Features
Features
- City Boss Residential City Water Pressure Booster (1.25" Outlet)
- Maintains constant boosted water pressure during operation
- MASCONTROL® Hydraulic/Electronic Pump Controller
- Monitor's flow & pressure to provide reliable automatic operation
- How It Works - Starts/Stops When Tap Is Open/Closed
- Safety-shutoff in an event when water fails to reach pump inlet
- No additional switch or pressure tank is required
- 3/4 HP Square Flange Motor (115/230V) w/ Capacitor Start
- Dual-voltage selector switch for easier installation
- Heavy Duty Cast Iron Booster Pump
- Gets you much longer life compared to thermoplastic pumps
- Thermoplastic Impeller & Diffuser
- Engineered for increased output, efficiency & quieter operation
- 1-1/4" FNPT Inlet (Minimum 3/4" Pressurized City Water Supply)
- Easily connects to most residential plumbing applications
- Built-In Backflow Preventer & Short Cycle Protection
- Also can assist in absorbing water hammer
- No Adjustment Or Maintenance Is Needed
- Once the pump is installed, all you need to do is enjoy the pressure
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
22 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1-1/4"
Pump Head Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Maximum PSI
43
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Weight
40.5 Pounds
Consumer Warranty
3 Years
Product Length
17.31 Inches
Product Width
8.5 Inches
Product Height
14.5 Inches
Inlet Size
1-1/4"
Style
GPM
22
Gallons
Inlet Size
1-1/4"
GPM
22 Gallons
Features
Features
- City Boss Residential City Water Pressure Booster (1.25" Outlet)
- Maintains constant boosted water pressure during operation
- MASCONTROL® Hydraulic/Electronic Pump Controller
- Monitor's flow & pressure to provide reliable automatic operation
- How It Works - Starts/Stops When Tap Is Open/Closed
- Safety-shutoff in an event when water fails to reach pump inlet
- No additional switch or pressure tank is required
- 3/4 HP Square Flange Motor (115/230V) w/ Capacitor Start
- Dual-voltage selector switch for easier installation
- Heavy Duty Cast Iron Booster Pump
- Gets you much longer life compared to thermoplastic pumps
- Thermoplastic Impeller & Diffuser
- Engineered for increased output, efficiency & quieter operation
- 1-1/4" FNPT Inlet (Minimum 3/4" Pressurized City Water Supply)
- Easily connects to most residential plumbing applications
- Built-In Backflow Preventer & Short Cycle Protection
- Also can assist in absorbing water hammer
- No Adjustment Or Maintenance Is Needed
- Once the pump is installed, all you need to do is enjoy the pressure
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
22 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1-1/4"
Pump Head Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Maximum PSI
43
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Weight
40.5 Pounds
Consumer Warranty
3 Years
Product Length
17.31 Inches
Product Width
8.5 Inches
Product Height
14.5 Inches
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
22 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1-1/4"
Pump Head Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Maximum PSI
43
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Weight
40.5 Pounds
Consumer Warranty
3 Years
Product Length
17.31 Inches
Product Width
8.5 Inches
Product Height
14.5 Inches
