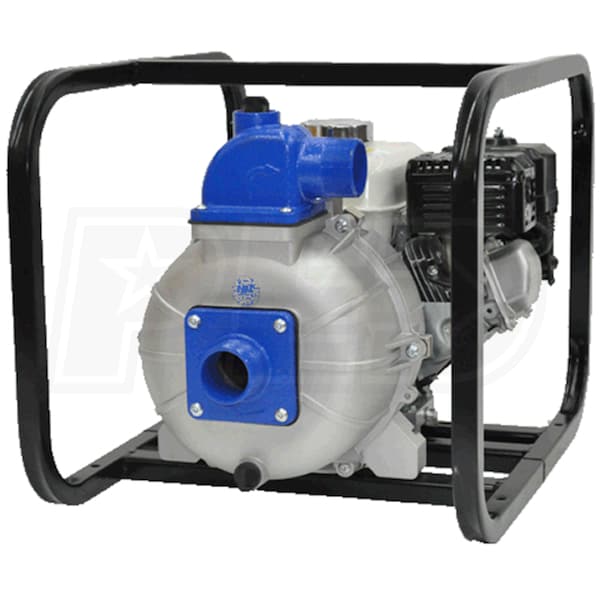

IPT Pumps 3S5XHR - 290 GPM (3") Trash Pump w/ Honda GX160 Engine
Model: 3S5XHR
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
3"
Style

GPM
290
Gallons
Engine
Inlet Size
3"
Style
Trash
GPM
290 Gallons
Engine
Honda GX
Features
Features
- IPT 3-Inch Portable, Gas-Powered Centrifugal Trash Pump
- Easily handles leaves, debris, and solids up to 1-1/4" diameter
- Commercial Grade Honda OHV GX160 4-Cycle Engine
- Reliable, technologically advanced & easy to start
- Provides excellent torque & fuel efficiency
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Helps to prevent engine seizure due to a low oil condition
- Cast Aluminum Construction w/ Cast Iron (Volute/Impeller) Wearparts
- Designed to resist abrasion which helps extend pump life
- 3-Inch Heavy-Duty Male NPT Suction & Discharge Ports
- Removable design allows ports to be replaced if damaged/stripped
- Adjustable Discharge Flange
- Versatile design, rotates in 90° increments for ease of use
- Silicon Carbide Mechanical Seal w/ Graphite Impregnated Seat & Viton Elastomers
- Provides exceptional abrasion and corrosion resistance for maximum performance
- One Tool Serviceability (Tool Included)
- Makes this pump extremely easy to service and pump maintenance
- Heavy Duty Steel Roll Frame w/ Vibration Dampening Feet
- Protects the pump/engine during transportation & operation
- Helps prevent "pump-walk" when pump is running
- Includes 3" Suction Strainer
- 1-Year Limited Warranty
Specifications
Pump
Gallons Per Minute
290 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
1.25 inch
Handles Solids
Yes
Suction Head
26 Feet
Total Head Lift
110 Feet
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
5 hp
Accessories
Tool Kit
Yes
Strainer
Yes
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
100 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
19.5 Inches
Product Height
19.9 Inches
UPC
