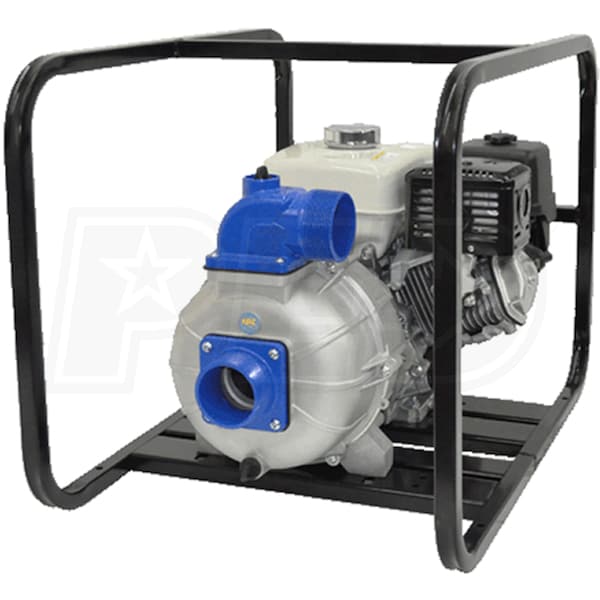

IPT Pumps 3P9XHR - 185 GPM (3") High Pressure Water Pump w/ Honda GX270 Engine

Model:

3P9XHR

Write A Review
$2,026.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

IPT Pumps 3P9XHR - 185 GPM (3
IPT Pumps 3P9XHR - 185 GPM (3") High Pressure Water Pump w/ Honda GX270 Engine
Model: 3P9XHR
$2,026.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

3 Inch

Style

Dewatering

GPM

185 Gallons

Engine

Honda GX

  • IPT 3-Inch Portable, Gas-Powered High-Pressure Water Pump
  • Designed for sprinkler, irrigation and firefighting applications; Provides up to 89 PSI
  • Commercial Grade Honda OHV GX270 4-Cycle Engine
  • Reliable, technologically advanced & easy to start
  • Provides excellent torque & fuel efficiency
  • Protected By Honda Oil Alert® Warning System
  • Alerts you or shuts engine down if oil reaches an unsafe level
  • Helps to prevent engine seizure due to a low oil condition
  • Large, Cast Aluminum Pump Casing w/ Cast Iron Volute
  • Increases pump capacity & helps resist abrasion for maximum pump life
  • High-Efficiency Closed, Cast Aluminum Impeller
  • Allows for increase head-lift and pressure (PSI)
  • Built-in check valve helps provide quick pump priming
  • 3-Inch Heavy-Duty Male NPT Suction & Discharge Ports
  • Removable design allows ports to be replaced if damaged/stripped
  • Adjustable Discharge Flange
  • Versatile design, rotates in 90° increments for ease of use
  • EPDM/EPR Mechanical Seal w/ Carbon & Ceramic Faces
  • Provides extended seal life in clear water applications
  • One Tool Serviceability (Tool Included)
  • Makes this pump extremely easy to service and pump maintenance
  • Heavy Duty Steel Roll Frame w/ Vibration Dampening Feet
  • Protects the pump/engine during transportation & operation
  • Helps prevent "pump-walk" when pump is running
  • Includes 3" Suction Strainer
  • 1-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

3P9XHR
specs product image PID-76543
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
185 Gallons
Inlet Diameter
3 Inch
Outlet Diameter
3 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
26 Feet
Maximum PSI
89
Total Head Lift
205 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
270 cc
Fuel Tank Size
1.4 Gallons
Run Time
2.7 Hours
Overview
Product Category
Water Pump
Weight
145 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
31 Inches
Product Width
22.5 Inches
Product Height
23.6 Inches
UPC
726846525810
Accessories
Tool Kit
Yes
Strainer
Yes
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
No
Wheel Kit
No
