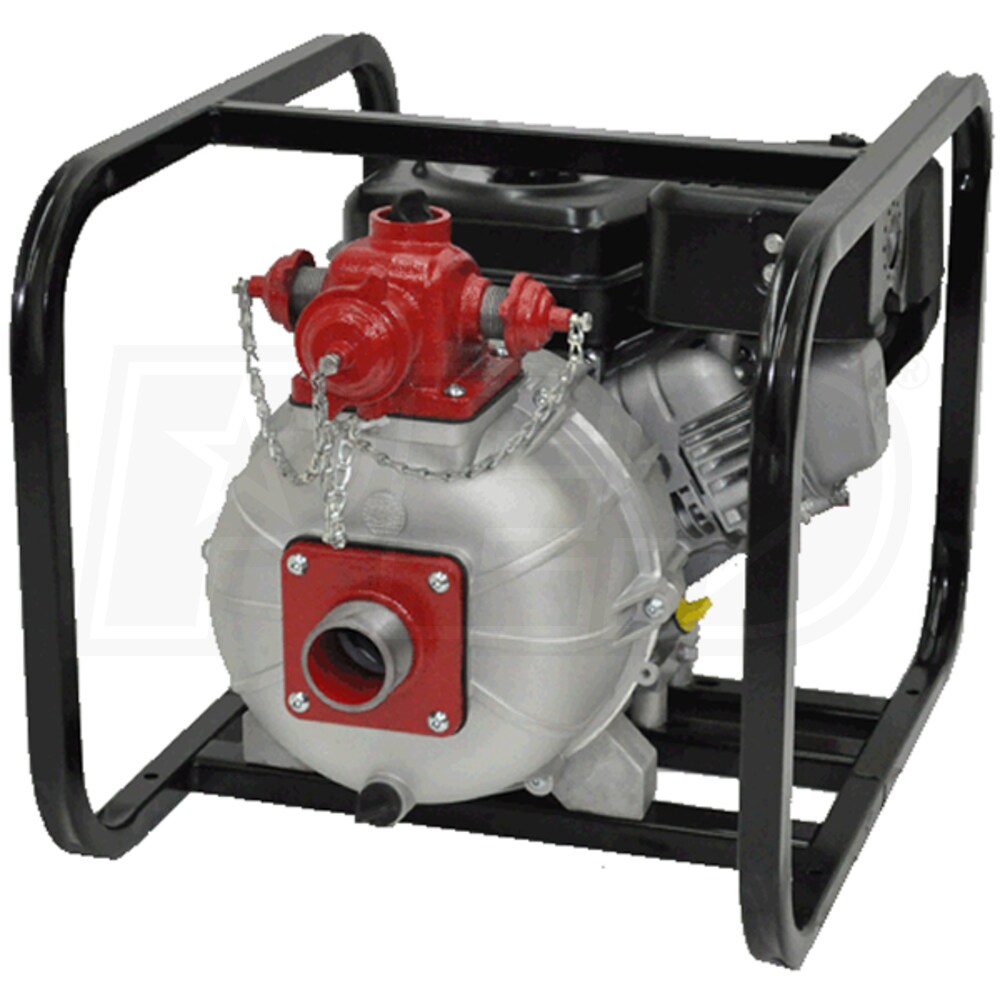

IPT Pumps 2MP9ZR - 119 GPM (2") Electric Start Diesel High Pressure 2-Stage Water Pump w/ HATZ 1B40 Engine
Model: 2MP9ZR
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
2"
Style

GPM
119
Gallons
Engine
Inlet Size
2"
Style
Dewatering
GPM
119 Gallons
Engine
Hatz
Features
Features
- IPT 2-Inch Portable, Diesel-Powered Two-Stage High-Pressure Water Pump
- Designed for sprinkler, irrigation and firefighting applications; Provides up to 139 PSI
- Commercial Grade HATZ 1B40 462cc 4-Stroke Diesel Engine w/ Electric Start
- Compact, lightweight design provides long service life & easy starting (Battery Not Included)
- Fuel efficient, provides longer runtime compared to gasoline engines
- Low Oil Alert
- Provides added protection against engine damage
- Large, Cast Aluminum Pump Casing w/ Cast Iron Diffusers
- Increases pump capacity & helps resist abrasion for maximum pump life
- High Efficiency, Two-Stage Precision Cast Aluminum Impellers
- Allows for increase head-lift and pressure (PSI)
- Built-in check valve helps provide quick pump priming
- 2-Inch Heavy-Duty Male NPT Suction Port
- Removable design allows ports to be replaced if damaged/stripped
- Multi-Discharge Manifold
- (1) 1.5" and (2) 1" Ports to suit your application
- Viton Mechanical Seal w/ Silicon Carbide & Carbon Faces
- Combined with EPDM/EPR O-rings for maximum longevity
- Heavy Duty Steel Roll Frame w/ Vibration Dampening Feet
- Protects the pump/engine during transportation & operation
- Helps prevent "pump-walk" when pump is running
- 1-Year Limited Warranty
Specifications
Motor
Battery Included
No
Pump
Gallons Per Minute
119 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
20 Feet
Maximum PSI
139
Total Head Lift
320 Feet
Engine
Engine Brand
Hatz
Starting System
12-Volt Button Start w/ Recoil
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
462 cc
Fuel Tank Size
1.32 Gallons
Run Time
1.9 Hours
Accessories
Tool Kit
Yes
Strainer
No
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
240 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
31 Inches
Product Width
22.5 Inches
Product Height
23.6 Inches
UPC
726846540288
Inlet Size
2"
Style

GPM
119
Gallons
Engine
Inlet Size
2"
Style
Dewatering
GPM
119 Gallons
Engine
Hatz
Features
Features
- IPT 2-Inch Portable, Diesel-Powered Two-Stage High-Pressure Water Pump
- Designed for sprinkler, irrigation and firefighting applications; Provides up to 139 PSI
- Commercial Grade HATZ 1B40 462cc 4-Stroke Diesel Engine w/ Electric Start
- Compact, lightweight design provides long service life & easy starting (Battery Not Included)
- Fuel efficient, provides longer runtime compared to gasoline engines
- Low Oil Alert
- Provides added protection against engine damage
- Large, Cast Aluminum Pump Casing w/ Cast Iron Diffusers
- Increases pump capacity & helps resist abrasion for maximum pump life
- High Efficiency, Two-Stage Precision Cast Aluminum Impellers
- Allows for increase head-lift and pressure (PSI)
- Built-in check valve helps provide quick pump priming
- 2-Inch Heavy-Duty Male NPT Suction Port
- Removable design allows ports to be replaced if damaged/stripped
- Multi-Discharge Manifold
- (1) 1.5" and (2) 1" Ports to suit your application
- Viton Mechanical Seal w/ Silicon Carbide & Carbon Faces
- Combined with EPDM/EPR O-rings for maximum longevity
- Heavy Duty Steel Roll Frame w/ Vibration Dampening Feet
- Protects the pump/engine during transportation & operation
- Helps prevent "pump-walk" when pump is running
- 1-Year Limited Warranty
Specifications
Motor
Battery Included
No
Pump
Gallons Per Minute
119 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
20 Feet
Maximum PSI
139
Total Head Lift
320 Feet
Engine
Engine Brand
Hatz
Starting System
12-Volt Button Start w/ Recoil
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
462 cc
Fuel Tank Size
1.32 Gallons
Run Time
1.9 Hours
Accessories
Tool Kit
Yes
Strainer
No
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
240 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
31 Inches
Product Width
22.5 Inches
Product Height
23.6 Inches
UPC
726846540288
Product Specs
+−
Specifications
Motor
Battery Included
No
Pump
Gallons Per Minute
119 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
20 Feet
Maximum PSI
139
Total Head Lift
320 Feet
Engine
Engine Brand
Hatz
Starting System
12-Volt Button Start w/ Recoil
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
462 cc
Fuel Tank Size
1.32 Gallons
Run Time
1.9 Hours
Accessories
Tool Kit
Yes
Strainer
No
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
240 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
31 Inches
Product Width
22.5 Inches
Product Height
23.6 Inches
UPC
726846540288
