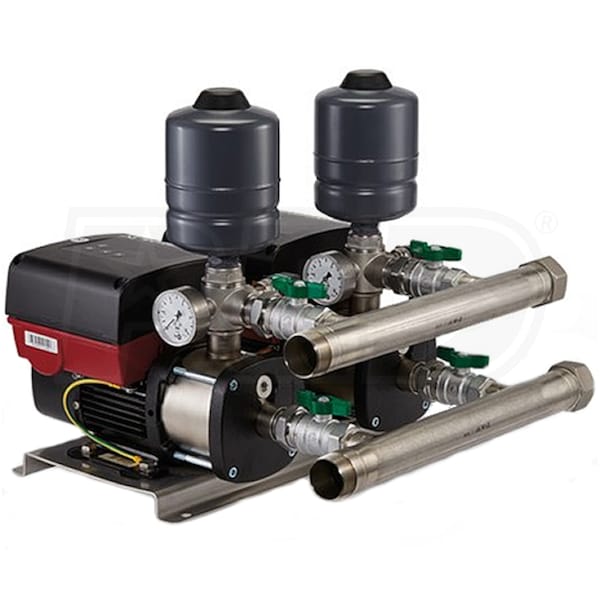

Grundfos CMBE TWIN 1-44 - 28 GPM 1 HP Booster Pump (58' Head) 115V

Model:

99503861

Write a Review
Grundfos CMBE TWIN 1-44 - 28 GPM 1 HP Booster Pump (58' Head) 115V
Grundfos CMBE TWIN 1-44 - 28 GPM 1 HP Booster Pump (58' Head) 115V
Model: 99503861
Call 1 (888) 455-4681 for pricing and order information.
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Factory-Direct
Ships in 2-5 Business Days
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share

Features

Inlet Size

1"

Style

GPM

28 Gallons
  • Grundfos CMBE TWIN 1-44 - 1 HP Booster Pump (115V)
  • Designed for water supply and boosting in domestic and light commercial applications
  • Great for irrigation and domestic fire suppression
  • Up to 28 GPM @ 58' Head*
  • Please see documents for sizing, PSI boost & application info
  • Cascade Control
  • Energy-efficient design adapts to demand
  • Automatically turns pump on/off and adjusts pump speed
  • Pump Alternation
  • Ensures that the operating hours are distributed evenly
  • 1 HP MGE Frequency-Controlled Permanent-Magnet Motor (115V)
  • Thermally protected, energy-efficient design, only draws 8-Amps (16A Total)
  • Integrated Speed Controller
  • Allows the pump to keep constant pressure in the pipe system
  • Pressure-sensor signals speed controller to adjust motor speed
  • Grundfos Eye Control Panel
  • Provides easy operation and ability to view system status, warnings, and alarms
  • Stainless Steel Pump Housing & Impeller
  • Helps minimize corrosion and extend pump life
  • Dry-Running Protection
  • Prevents damage to pump by a low-water/pressure event
  • Quiet Operation
  • Produces about 58 dB(A) during normal use and even lower at controlled speed
  • 1" Inch Inlet & Outlet (Pump) & 1-1/2" (Manifold)
  • Allows for easy connection to residential plumbing systems
  • All-In-One Solution
  • Includes pump, motor, tank, pressure/flow sensor, controller & check valve
  • Also includes base plate and pump manifold
  • 15-Foot Power Cord (No Plug)
  • Designed for fuse box connection
  • Grundfos GO Remote Compatible (Sold Separately)
  • Lets you configure, control and alter pump settings with your Android/IOS device
  • 2-Year Limited Warranty

Specifications

99503861
Motor
Voltage
120 Volt
Running Amps
16
Thermal Protection
Yes
Power Cord Length
15 Feet
Pump
Gallons Per Minute
28 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
23 Feet
Maximum PSI
145
Total Head Lift
180 Feet
Engine
Horsepower
1 hp
Overview
Weight
120 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
20.35 Inches
Product Width
18.51 Inches
Product Height
19.6 Inches
