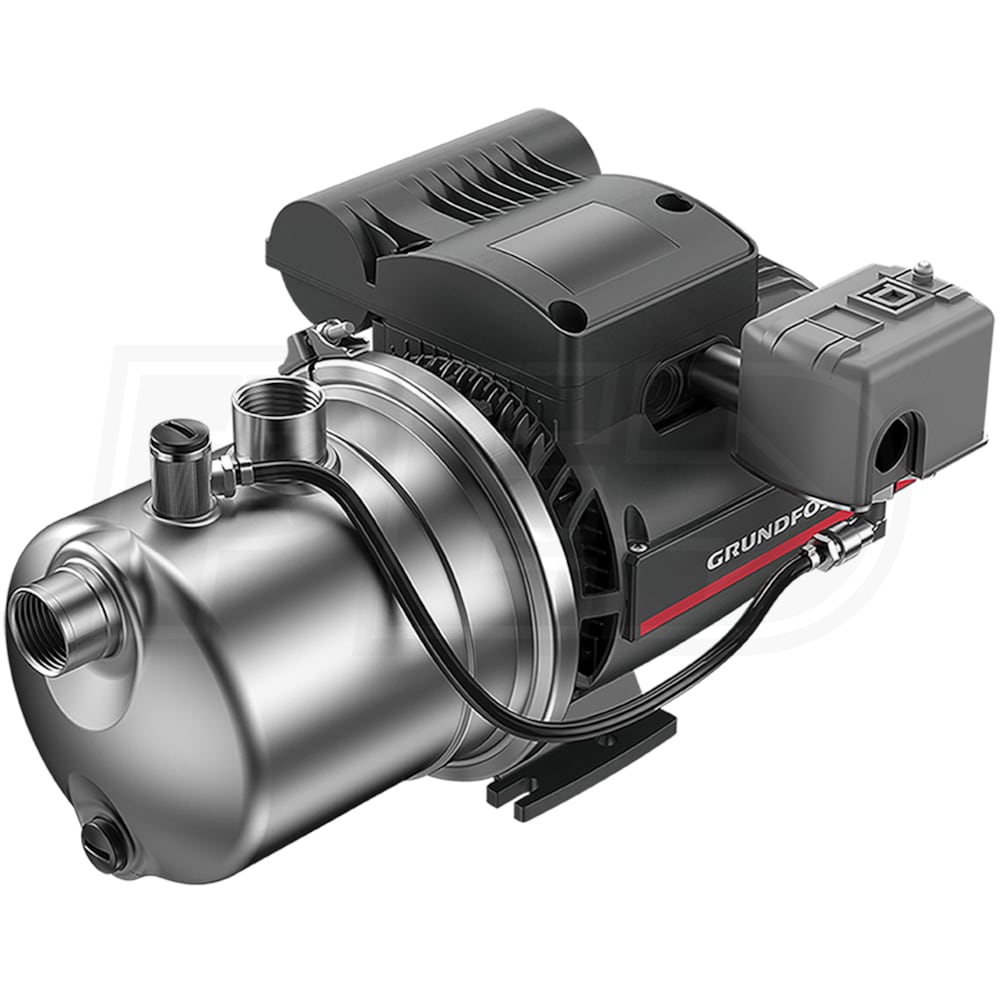

Grundfos JP 13-03-137 - 13 GPM 1/3 HP Stainless Steel Shallow Well Jet Pump (58' Rated Head) 115/230V
Model: 99463938
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
Call 1 (888) 455-4681 for pricing and order information.
Factory-Direct
Ships in 4-6 Weeks
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1"
Style
Shallow Well Pumps
GPM
13
Gallons
Inlet Size
1"
Style
Shallow Well
GPM
13 Gallons
Features
Features
  • Grundfos JP 13-03-137 - 1/3 HP Stainless Steel Shallow Well Jet Pump (115/230V)
  • Ideal for use in pumping at depths of 25' or less
  • Rated 13 GPM @ 58' Head Lift; 137' Max Head Lift
  • 115/230-Volt 1/3 HP Grundfos TEFC Motor
  • Dual-voltage design allows for easy installation
  • Built-in thermal overload for motor protection
  • Includes Factory Pre-Wired 30/50 Pressure Switch
  • Allows for easy integration to your current plumbing system
  • Stainless Steel Pump Housing
  • Provides increased corrosion-resistance compared to thermoplastic pumps
  • Composite Impeller
  • Engineered for increased output, efficiency & quieter operation
  • Ceramic-Carbon Mechanical Seal
  • Provides extended seal life in clear water applications
  • Convenient Priming Plug
  • Self-priming design requires initial water-fill
  • Built-In Ejector Clean-Out Ports
  • Makes it easy to keep this nozzle unclogged and debris free
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
115-230 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
13 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
87
Total Head Lift
137 Feet
Engine
Horsepower
0.3 hp
Accessories
Pressure Switch
Yes
Overview
Weight
22.3 Pounds
Consumer Warranty
2 Years
Product Length
15.9 Inches
Product Width
11.3 Inches
Product Height
8.23 Inches

Inlet Size
1"
Style
Shallow Well Pumps
GPM
13
Gallons
Inlet Size
1"
Style
Shallow Well
GPM
13 Gallons
Features
Features
  • Grundfos JP 13-03-137 - 1/3 HP Stainless Steel Shallow Well Jet Pump (115/230V)
  • Ideal for use in pumping at depths of 25' or less
  • Rated 13 GPM @ 58' Head Lift; 137' Max Head Lift
  • 115/230-Volt 1/3 HP Grundfos TEFC Motor
  • Dual-voltage design allows for easy installation
  • Built-in thermal overload for motor protection
  • Includes Factory Pre-Wired 30/50 Pressure Switch
  • Allows for easy integration to your current plumbing system
  • Stainless Steel Pump Housing
  • Provides increased corrosion-resistance compared to thermoplastic pumps
  • Composite Impeller
  • Engineered for increased output, efficiency & quieter operation
  • Ceramic-Carbon Mechanical Seal
  • Provides extended seal life in clear water applications
  • Convenient Priming Plug
  • Self-priming design requires initial water-fill
  • Built-In Ejector Clean-Out Ports
  • Makes it easy to keep this nozzle unclogged and debris free
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
115-230 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
13 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
87
Total Head Lift
137 Feet
Engine
Horsepower
0.3 hp
Accessories
Pressure Switch
Yes
Overview
Weight
22.3 Pounds
Consumer Warranty
2 Years
Product Length
15.9 Inches
Product Width
11.3 Inches
Product Height
8.23 Inches
Product Specs
+
Specifications
Motor
Voltage
115-230 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
13 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
87
Total Head Lift
137 Feet
Engine
Horsepower
0.3 hp
Accessories
Pressure Switch
Yes
Overview
Weight
22.3 Pounds
Consumer Warranty
2 Years
Product Length
15.9 Inches
Product Width
11.3 Inches
Product Height
8.23 Inches
