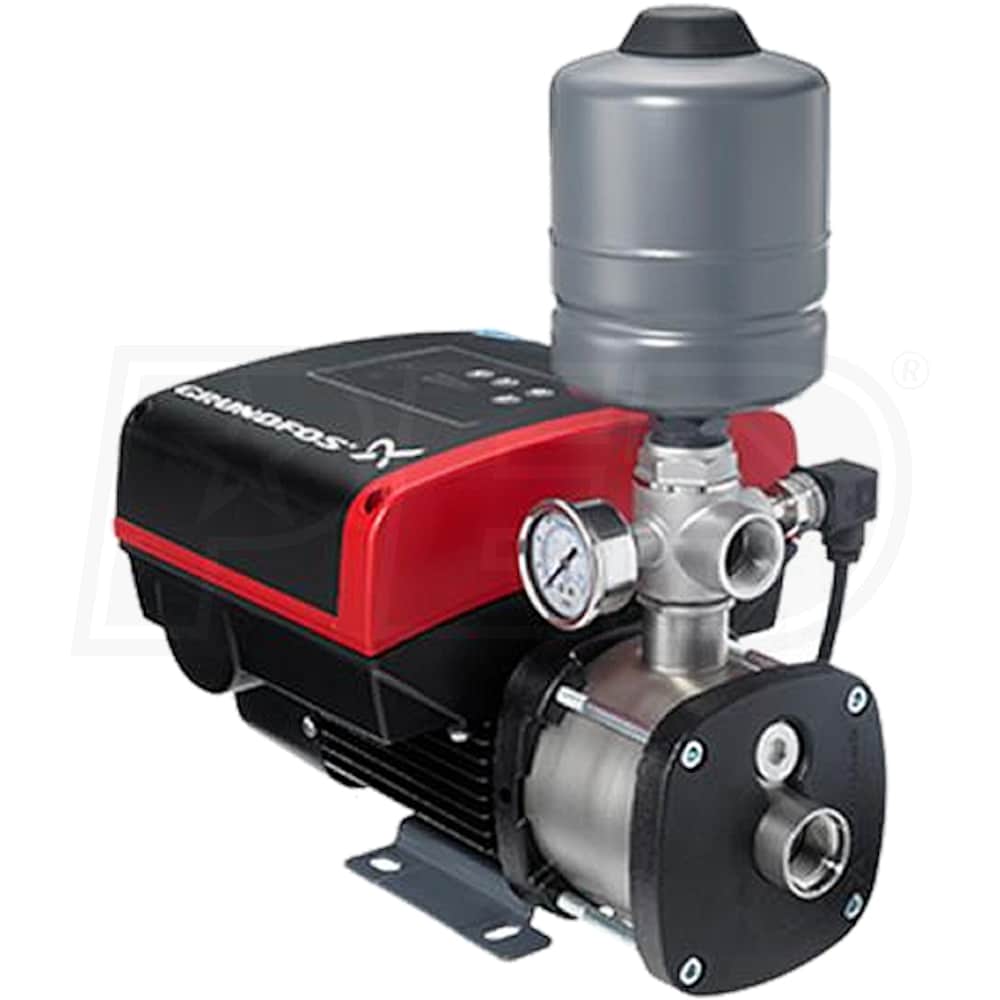

Grundfos CMBE 1-75 - 8.8 GPM 1 HP Booster Pump (143' Head) 115V

Grundfos CMBE 1-75 - 8.8 GPM 1 HP Booster Pump (143' Head) 115V
Model: 98810921
$1,792.00
Ships in 2-5 Business Days
Free Shipping
Free ShippingNo Sales Tax* (Except IL)$1,792.00Buy Now
No Sales Tax* (Except IL)$1,792.00Visit Site
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1"
Style
GPM
8.8
Gallons
Inlet Size
1"
GPM
8.8 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Grundfos CMBE 1-75 - 1 HP Booster Pump (115V)
  • Designed for water supply and boosting in domestic and light commercial applications
  • Rated 8.8 GPM @ 143' Head* (Please See Documents For Sizing Information)
  • Provides 20-60 PSI at 0-10 GPM; Provides 20-35 PSI at 0-15 GPM
  • All-In-One Solution
  • Includes pump, motor, tank, pressure/flow sensor, controller & check valve
  • 1 HP MGE Frequency-Controlled Permanent-Magnet Motor (115V)
  • Thermally protected and energy-efficient design, only draws 8-Amps (Max)
  • Integrated Speed Controller
  • Allows the pump to keep constant pressure in the pipe system
  • Pressure-sensor signals speed controller to adjust motor speed
  • Grundfos Eye Control Panel
  • Provides easy operation and ability to view system status, warnings, and alarms
  • Stainless Steel Pump Housing & Impeller
  • Helps minimize corrosion and extend pump life
  • Dry-Running Protection
  • Prevents damage to pump by a low-water/pressure event
  • Quiet Operation
  • Produces about 55 dB(A) during normal use and even lower at controlled speed
  • 1" Inch Inlet & Outlet
  • Allows for easy connection to residential plumbing systems
  • 5-Foot Power Cored w/ 3-Prong Plug (NEMA 5-15)
  • Makes this pump easy to use for residential applications
  • Grundfos GO Remote Compatible (Sold Separately)
  • Lets you configure, control and alter pump settings with your Android/IOS device
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
8
Thermal Protection
Yes
Power Cord Length
5 Feet
Pump
Gallons Per Minute
8.8 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
23 Feet
Total Head Lift
262 Feet
Maximum PSI
145
Engine
Horsepower
1 hp
Overview
Weight
58 Pounds
Product Length
14.25 Inches
Product Width
8.64 Inches
Product Height
17.32 Inches
Consumer Warranty
2 Years

Inlet Size
1"
Style
GPM
8.8
Gallons
Inlet Size
1"
GPM
8.8 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Grundfos CMBE 1-75 - 1 HP Booster Pump (115V)
  • Designed for water supply and boosting in domestic and light commercial applications
  • Rated 8.8 GPM @ 143' Head* (Please See Documents For Sizing Information)
  • Provides 20-60 PSI at 0-10 GPM; Provides 20-35 PSI at 0-15 GPM
  • All-In-One Solution
  • Includes pump, motor, tank, pressure/flow sensor, controller & check valve
  • 1 HP MGE Frequency-Controlled Permanent-Magnet Motor (115V)
  • Thermally protected and energy-efficient design, only draws 8-Amps (Max)
  • Integrated Speed Controller
  • Allows the pump to keep constant pressure in the pipe system
  • Pressure-sensor signals speed controller to adjust motor speed
  • Grundfos Eye Control Panel
  • Provides easy operation and ability to view system status, warnings, and alarms
  • Stainless Steel Pump Housing & Impeller
  • Helps minimize corrosion and extend pump life
  • Dry-Running Protection
  • Prevents damage to pump by a low-water/pressure event
  • Quiet Operation
  • Produces about 55 dB(A) during normal use and even lower at controlled speed
  • 1" Inch Inlet & Outlet
  • Allows for easy connection to residential plumbing systems
  • 5-Foot Power Cored w/ 3-Prong Plug (NEMA 5-15)
  • Makes this pump easy to use for residential applications
  • Grundfos GO Remote Compatible (Sold Separately)
  • Lets you configure, control and alter pump settings with your Android/IOS device
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
8
Thermal Protection
Yes
Power Cord Length
5 Feet
Pump
Gallons Per Minute
8.8 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
23 Feet
Total Head Lift
262 Feet
Maximum PSI
145
Engine
Horsepower
1 hp
Overview
Weight
58 Pounds
Product Length
14.25 Inches
Product Width
8.64 Inches
Product Height
17.32 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Motor
Voltage
120 Volt
Running Amps
8
Thermal Protection
Yes
Power Cord Length
5 Feet
Pump
Gallons Per Minute
8.8 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
23 Feet
Total Head Lift
262 Feet
Maximum PSI
145
Engine
Horsepower
1 hp
Overview
Weight
58 Pounds
Product Length
14.25 Inches
Product Width
8.64 Inches
Product Height
17.32 Inches
Consumer Warranty
2 Years
