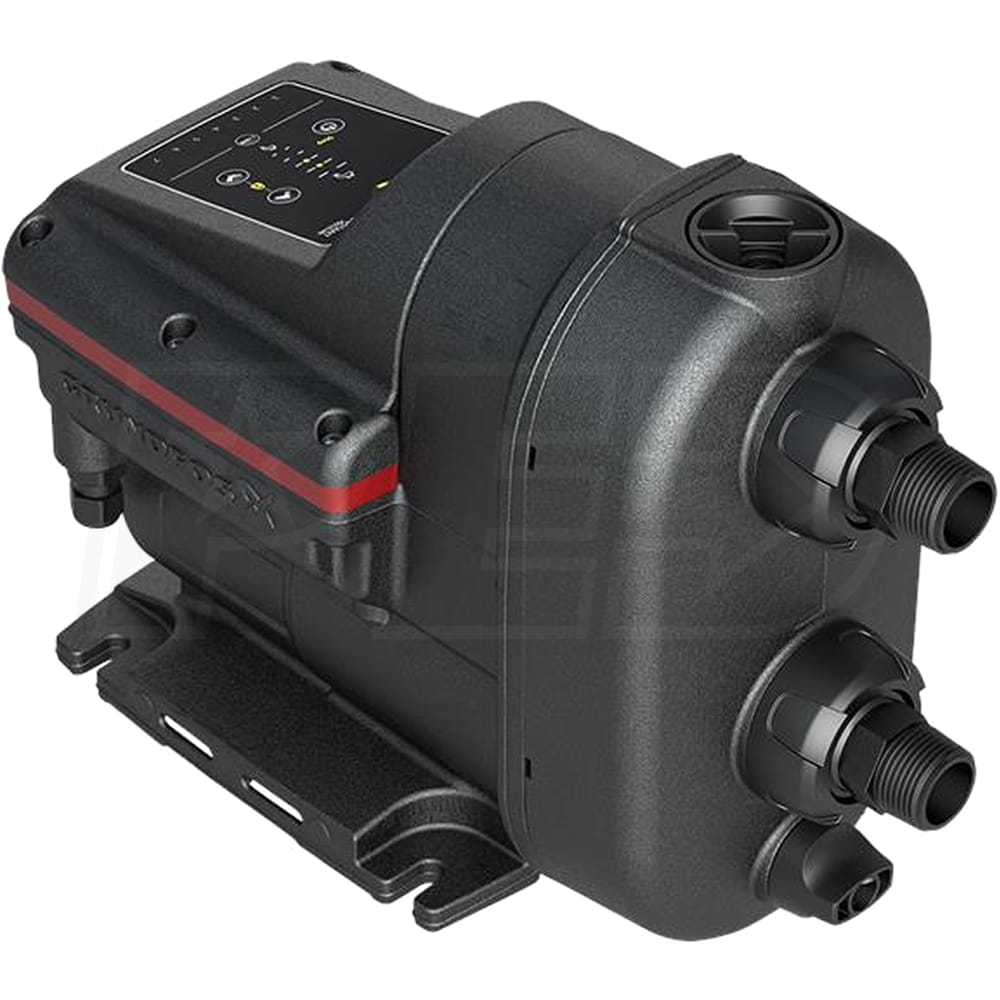

Grundfos SCALA2 3-45 - 3/4 HP Booster Pump 115V

Model:

98562818

Write a Review
Grundfos SCALA2 3-45 - 3/4 HP Booster Pump 115V
Grundfos SCALA2 3-45 - 3/4 HP Booster Pump 115V
Model: 98562818
Call 1 (888) 455-4681 for pricing and order information.
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
In-Stock
Ships in 1-2 Business Days
Shipping to60601
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1"

Style

GPM

13.2 Gallons



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Grundfos SCALA2 3-45 - 3/4 HP Shallow Well Booster Jet Pump (115V)
  • Can be used for shallow well applications with pumping depths of 26' or less
  • Recommended For Pressure Boosting In Domestic Applications
  • Ideal for city mains and room, break or ground tanks
  • Suitable for homes with up to 3-floors and eight tapping points
  • 3/4 HP, Water-Cooled, Permanent Magnet Motor (115V)
  • Energy-efficient design, only draws 4.9-Amps
  • Rated For Indoor & Outdoor Installations
  • Meets the needs of a wide variety of applications
  • Quiet Operation
  • Produces about 47 dB(A) during normal use and about 53 dB(A) at full load
  • Intelligent Pump Controller
  • Integrated speed-controlled drive maintains the perfect pressure
  • Provides the ability to adjust performance based on demand
  • User-Friendly Control Panel
  • Makes this pump system very easy to operate
  • Built-In Pressure Tank
  • Helps reduce wear on the pump by reducing starts/stops
  • Dry Running Protection w/ Automatic Reset
  • Integrated sensors help prevent motor burnout
  • Will try restarting pump every 5 mins 8 times, then try again after 24-hours
  • Simple Installation
  • Fully-integrated, compact design for quick and easy installation
  • 6.5-Foot Power Cored w/ 3-Prong Plug (NEMA 5-15)
  • Makes this pump easy to use for residential applications
  • 2-Year Limited Warranty

Specifications

98562818
specs product image PID-80334
Motor
Voltage
120 Volt
Running Amps
4.9
Thermal Protection
Yes
Power Cord Length
6.5 Feet
Pump
Gallons Per Minute
13.2 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Pump Head Material
Thermoplastic
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Thermoplastic
Impeller Material
NORYL
Handles Solids
No
Suction Head
26 Feet
Maximum PSI
145
Total Head Lift
154 Feet
Engine
Horsepower
0.75 hp
Overview
Weight
26.2 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
15.87 Inches
Product Width
7.6 Inches
Product Height
11.89 Inches
