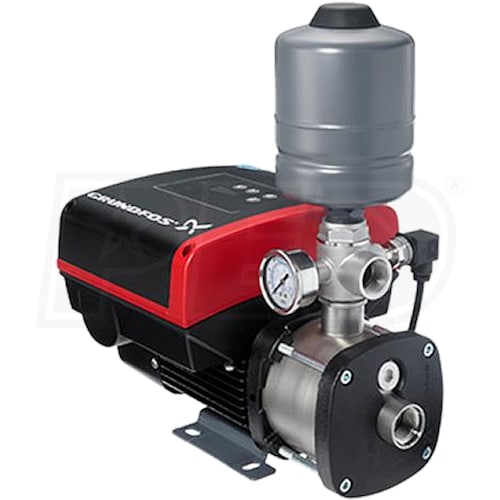

Grundfos CMBE 10-54 - 52.8 GPM 2 HP Booster Pump (116' Head) 200-240V

Grundfos CMBE 10-54 - 52.8 GPM 2 HP Booster Pump (116' Head) 200-240V
Model: 98548118
$2,530.00
Backordered
Estimated Availability August 28, 2018
Notify Me When In-Stock
Free Shipping
Backordered
Estimated Availability August 28, 2018
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1-1/2"
Style
GPM
52.8
Gallons
Inlet Size
1-1/2"
GPM
52.8 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Grundfos CMBE 10-54 - 2 HP Booster Pump (200-240V)
  • Designed for water supply and boosting in domestic and light commercial applications
  • Rated 52.8 GPM @ 116' Head* (Please See Documents For Sizing Information)
  • Provides 20-50 PSI at 0-45 GPM; Provides 20-30 PSI at 0-70 GPM
  • All-In-One Solution
  • Includes pump, motor, tank, pressure/flow sensor, controller & check valve
  • 2 HP MGE Frequency-Controlled Permanent-Magnet Motor (200-240V)
  • Thermally protected and energy-efficient design, only draws 9.10 - 7.6-Amps (Max)
  • Integrated Speed Controller
  • Allows the pump to keep constant pressure in the pipe system
  • Pressure-sensor signals speed controller to adjust motor speed
  • Grundfos Eye Control Panel
  • Provides easy operation and ability to view system status, warnings, and alarms
  • Stainless Steel Pump Housing & Impeller
  • Helps minimize corrosion and extend pump life
  • Dry-Running Protection
  • Prevents damage to pump by a low-water/pressure event
  • Quiet Operation
  • Produces about 55 dB(A) during normal use and even lower at controlled speed
  • 1-1/2" Inch Inlet & Outlet
  • Allows for easy connection to residential plumbing systems
  • Grundfos GO Remote Compatible (Sold Separately)
  • Lets you configure, control and alter pump settings with your Android/IOS device
  • *Note - Power Cord Not Included
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
7.6
Thermal Protection
Yes
Pump
Gallons Per Minute
52.8 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
23 Feet
Total Head Lift
184 Feet
Maximum PSI
145
Engine
Horsepower
2 hp
Overview
Weight
77.5 Pounds
Product Length
19.29 Inches
Product Width
9.13 Inches
Product Height
19.92 Inches
Consumer Warranty
2 Years

Inlet Size
1-1/2"
Style
GPM
52.8
Gallons
Inlet Size
1-1/2"
GPM
52.8 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Grundfos CMBE 10-54 - 2 HP Booster Pump (200-240V)
  • Designed for water supply and boosting in domestic and light commercial applications
  • Rated 52.8 GPM @ 116' Head* (Please See Documents For Sizing Information)
  • Provides 20-50 PSI at 0-45 GPM; Provides 20-30 PSI at 0-70 GPM
  • All-In-One Solution
  • Includes pump, motor, tank, pressure/flow sensor, controller & check valve
  • 2 HP MGE Frequency-Controlled Permanent-Magnet Motor (200-240V)
  • Thermally protected and energy-efficient design, only draws 9.10 - 7.6-Amps (Max)
  • Integrated Speed Controller
  • Allows the pump to keep constant pressure in the pipe system
  • Pressure-sensor signals speed controller to adjust motor speed
  • Grundfos Eye Control Panel
  • Provides easy operation and ability to view system status, warnings, and alarms
  • Stainless Steel Pump Housing & Impeller
  • Helps minimize corrosion and extend pump life
  • Dry-Running Protection
  • Prevents damage to pump by a low-water/pressure event
  • Quiet Operation
  • Produces about 55 dB(A) during normal use and even lower at controlled speed
  • 1-1/2" Inch Inlet & Outlet
  • Allows for easy connection to residential plumbing systems
  • Grundfos GO Remote Compatible (Sold Separately)
  • Lets you configure, control and alter pump settings with your Android/IOS device
  • *Note - Power Cord Not Included
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
7.6
Thermal Protection
Yes
Pump
Gallons Per Minute
52.8 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
23 Feet
Total Head Lift
184 Feet
Maximum PSI
145
Engine
Horsepower
2 hp
Overview
Weight
77.5 Pounds
Product Length
19.29 Inches
Product Width
9.13 Inches
Product Height
19.92 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Motor
Voltage
240 Volt
Running Amps
7.6
Thermal Protection
Yes
Pump
Gallons Per Minute
52.8 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
23 Feet
Total Head Lift
184 Feet
Maximum PSI
145
Engine
Horsepower
2 hp
Overview
Weight
77.5 Pounds
Product Length
19.29 Inches
Product Width
9.13 Inches
Product Height
19.92 Inches
Consumer Warranty
2 Years
