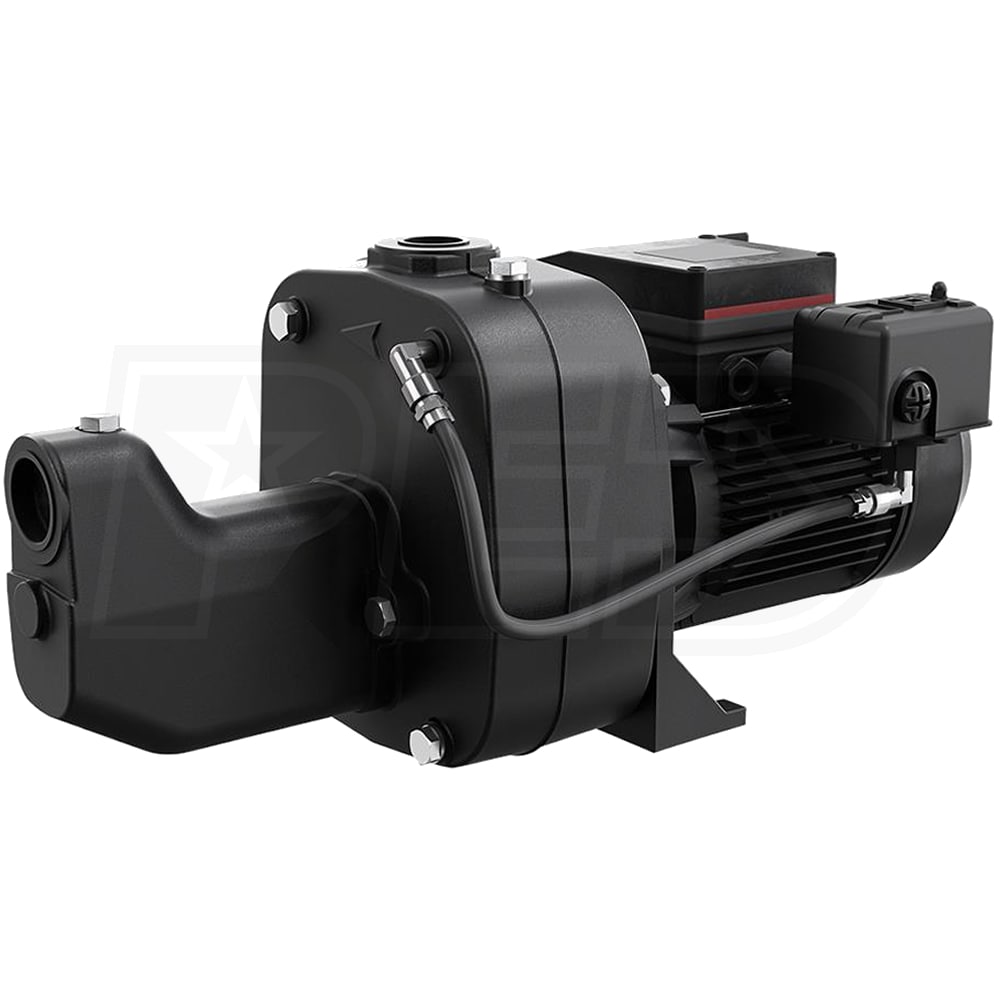

Grundfos JP20S-CI - 31 GPM 2 HP Cast Iron Shallow Well Jet Pump (112' Rated Head) 230V
Grundfos JP20S-CI - 31 GPM 2 HP Cast Iron Shallow Well Jet Pump (112' Rated Head) 230V
+
Share This Product
-
Product Description
-
2Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style
GPM
31
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
31 Gallons
Features
Features
- Grundfos JP20S-CI - 2 HP Cast Iron Shallow Well Jet Pump (230V)
- Ideal for use in pumping at depths of 25' or less
- Rated 31 GPM @ 112' Head Lift; 203' Max Head Lift
- 230-Volt 2 HP Grundfos TEFC Motor
- Built-in thermal overload for motor protection
- Includes Factory Pre-Wired 40/60 Pressure Switch
- Allows for easy integration to your current plumbing system
- Cast Iron Pump Housing
- Provides longer life compared to thermoplastic pumps
- Composite Impeller
- Engineered for increased output, efficiency & quieter operation
- Ceramic-Carbon Mechanical Seal
- Provides extended seal life in clear water applications
- Convenient Priming Plug
- Self-priming design requires initial water-fill
- Built-In Ejector Clean-Out Ports
- Makes it easy to keep this nozzle unclogged and debris free
- 2-Year Limited Warranty
Specifications
Motor
Voltage
230 Volt
Running Amps
11
Thermal Protection
Yes
Pump
Gallons Per Minute
31 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
87
Total Head Lift
203.4 Feet
Engine
Horsepower
2 hp
Accessories
Pressure Switch
Yes
Overview
Weight
79.4 Pounds
Consumer Warranty
2 Years
Product Length
25.04 Inches
Product Width
10.24 Inches
Product Height
10.04 Inches
UPC
8059893101754
Inlet Size
1-1/4"
Style
GPM
31
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
31 Gallons
Features
Features
- Grundfos JP20S-CI - 2 HP Cast Iron Shallow Well Jet Pump (230V)
- Ideal for use in pumping at depths of 25' or less
- Rated 31 GPM @ 112' Head Lift; 203' Max Head Lift
- 230-Volt 2 HP Grundfos TEFC Motor
- Built-in thermal overload for motor protection
- Includes Factory Pre-Wired 40/60 Pressure Switch
- Allows for easy integration to your current plumbing system
- Cast Iron Pump Housing
- Provides longer life compared to thermoplastic pumps
- Composite Impeller
- Engineered for increased output, efficiency & quieter operation
- Ceramic-Carbon Mechanical Seal
- Provides extended seal life in clear water applications
- Convenient Priming Plug
- Self-priming design requires initial water-fill
- Built-In Ejector Clean-Out Ports
- Makes it easy to keep this nozzle unclogged and debris free
- 2-Year Limited Warranty
Specifications
Motor
Voltage
230 Volt
Running Amps
11
Thermal Protection
Yes
Pump
Gallons Per Minute
31 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
87
Total Head Lift
203.4 Feet
Engine
Horsepower
2 hp
Accessories
Pressure Switch
Yes
Overview
Weight
79.4 Pounds
Consumer Warranty
2 Years
Product Length
25.04 Inches
Product Width
10.24 Inches
Product Height
10.04 Inches
UPC
8059893101754
Product Specs
+−
Specifications
Motor
Voltage
230 Volt
Running Amps
11
Thermal Protection
Yes
Pump
Gallons Per Minute
31 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
87
Total Head Lift
203.4 Feet
Engine
Horsepower
2 hp
Accessories
Pressure Switch
Yes
Overview
Weight
79.4 Pounds
Consumer Warranty
2 Years
Product Length
25.04 Inches
Product Width
10.24 Inches
Product Height
10.04 Inches
UPC
8059893101754
