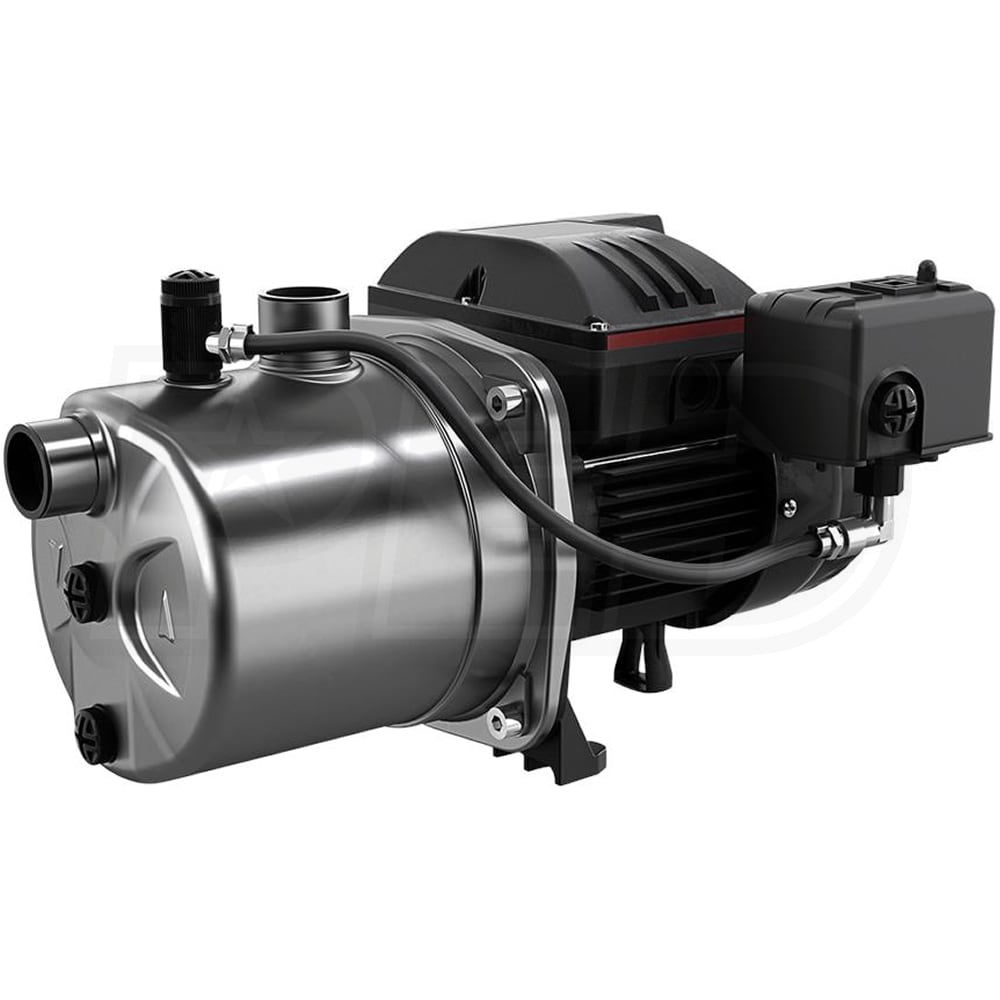

Grundfos JP10S-SS - 15 GPM 1 HP Stainless Steel Shallow Well Jet Pump (103' Rated Head) 115/230V
Model: 97855088
+
Share This Product
-
Product Description
-
2Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1"
Style

GPM
15
Gallons
Inlet Size
1"
Style
Shallow Well
GPM
15 Gallons
Features
Features
- Grundfos JP10S-SS - 1 HP Stainless Steel Shallow Well Jet Pump (115/230V)
- Ideal for use in pumping at depths of 25' or less
- Rated 15 GPM @ 103' Head Lift; 200' Max Head Lift
- 115/230-Volt 1 HP Grundfos TEFC Motor
- Dual-voltage design allows for easy installation
- Built-in thermal overload for motor protection
- Includes Factory Pre-Wired 30/50 Pressure Switch
- Allows for easy integration to your current plumbing system
- Stainless Steel Pump Housing
- Provides increased corrosion-resistance compared to thermoplastic pumps
- Composite Impeller
- Engineered for increased output, efficiency & quieter operation
- Ceramic-Carbon Mechanical Seal
- Provides extended seal life in clear water applications
- Convenient Priming Plug
- Self-priming design requires initial water-fill
- Built-In Ejector Clean-Out Ports
- Makes it easy to keep this nozzle unclogged and debris free
- 2-Year Limited Warranty
Specifications
Motor
Voltage
115-230 Volt
Running Amps
7.1
Thermal Protection
Yes
Pump
Gallons Per Minute
15 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
87
Total Head Lift
200.1 Feet
Engine
Horsepower
1 hp
Accessories
Pressure Switch
Yes
Overview
Weight
26.5 Pounds
Consumer Warranty
2 Years
Product Length
16.81 Inches
Product Width
10.39 Inches
Product Height
8.5 Inches
Inlet Size
1"
Style

GPM
15
Gallons
Inlet Size
1"
Style
Shallow Well
GPM
15 Gallons
Features
Features
- Grundfos JP10S-SS - 1 HP Stainless Steel Shallow Well Jet Pump (115/230V)
- Ideal for use in pumping at depths of 25' or less
- Rated 15 GPM @ 103' Head Lift; 200' Max Head Lift
- 115/230-Volt 1 HP Grundfos TEFC Motor
- Dual-voltage design allows for easy installation
- Built-in thermal overload for motor protection
- Includes Factory Pre-Wired 30/50 Pressure Switch
- Allows for easy integration to your current plumbing system
- Stainless Steel Pump Housing
- Provides increased corrosion-resistance compared to thermoplastic pumps
- Composite Impeller
- Engineered for increased output, efficiency & quieter operation
- Ceramic-Carbon Mechanical Seal
- Provides extended seal life in clear water applications
- Convenient Priming Plug
- Self-priming design requires initial water-fill
- Built-In Ejector Clean-Out Ports
- Makes it easy to keep this nozzle unclogged and debris free
- 2-Year Limited Warranty
Specifications
Motor
Voltage
115-230 Volt
Running Amps
7.1
Thermal Protection
Yes
Pump
Gallons Per Minute
15 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
87
Total Head Lift
200.1 Feet
Engine
Horsepower
1 hp
Accessories
Pressure Switch
Yes
Overview
Weight
26.5 Pounds
Consumer Warranty
2 Years
Product Length
16.81 Inches
Product Width
10.39 Inches
Product Height
8.5 Inches
Product Specs
+−
Specifications
Motor
Voltage
115-230 Volt
Running Amps
7.1
Thermal Protection
Yes
Pump
Gallons Per Minute
15 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
87
Total Head Lift
200.1 Feet
Engine
Horsepower
1 hp
Accessories
Pressure Switch
Yes
Overview
Weight
26.5 Pounds
Consumer Warranty
2 Years
Product Length
16.81 Inches
Product Width
10.39 Inches
Product Height
8.5 Inches
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Is this unit weather-proof?
David
from Hawaii
October 16, 2020
Answer
From page 35 of the product manual: "The pump must be located in a well-ventilated place, protected from unfavorable weather conditions and with an environmental temperature not exceeding 104°F (40°C)." Most people will build a pump-house to store the pump, as well as any pressure tanks, inside.
