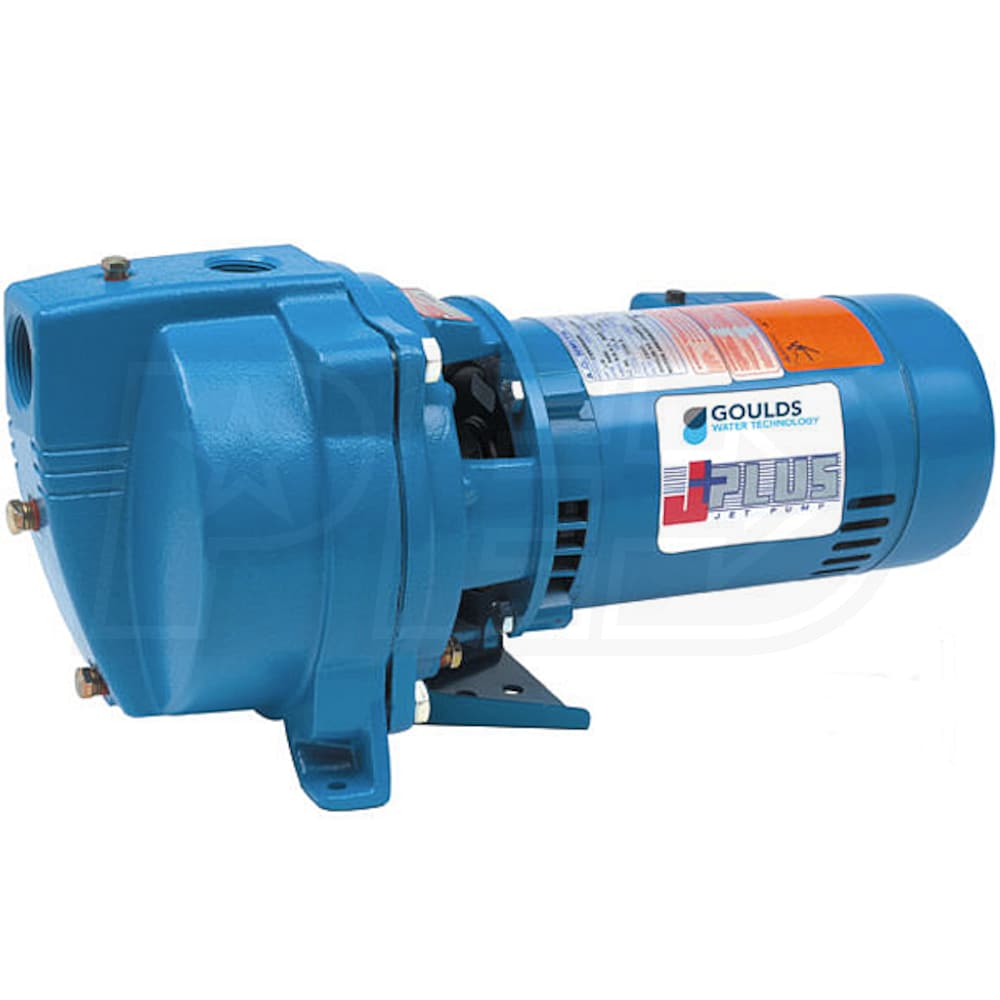

Goulds JS+ Series - 11.5 GPM 1/2 HP Cast Iron High-Pressure Shallow Well Jet Pump (83 PSI Max)

Model:

J5SH

Recommended
Write a Review
Add to Cart for Price
Free Shipping
  Learn More About Free Freight
Backordered
Estimated Availability June 23, 2021
Shipping to60601

Goulds JS+ Series - 11.5 GPM 1/2 HP Cast Iron High-Pressure Shallow Well Jet Pump (83 PSI Max)
Goulds JS+ Series - 11.5 GPM 1/2 HP Cast Iron High-Pressure Shallow Well Jet Pump (83 PSI Max)
Model: J5SH
Add to Cart for Price
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Inlet Size

1-1/4"

Style

Shallow Well

GPM

11.5 Gallons

  • Goulds JS+ Series Hight Pressure Shallow Well Jet Pump
  • Ideal for use in pumping at depths of 25' or less
  • Can produce up to 83 PSI
  • Corrosion-Resistant Cast Iron Construction
  • Inside & out Electro-coated paint process
  • 1/2 HP NEMA Standard Motor (115 / 230V)
  • Built-In overload protection w/ automatic restart
  • Can be run continuously without damage
  • Built-In Shallow Well Adapter
  • Provides a compact design w/o the need for a separate adapter
  • Bolt-Down Diffuser
  • Stainless wear ring for extended performance
  • F.D.A Compliant Glass Filled NorylŪ Impeller
  • Corrosion and abrasion resistant design
  • Protected Mechanical Seal
  • Retains water in the casing to prevent run-dry occurrences
  • Includes Factory Pre-Wired 30/50 Pressure Switch
  • Allows for reliable automatic operation
  • Made For Easy Service
  • Dual-compartment motor for easier wiring
  • Back-pullout design won't disturb piping
  • Nozzle clean-out plug in pump case
  • 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

J5SH
Motor
Voltage
115-230 Volt
Pump
Gallons Per Minute
11.5 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Impeller Material
NORYL
Suction Head
25 Feet
Maximum PSI
83
Engine
Horsepower
0.5 hp
Overview
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
17.25 Inches
Product Width
9.875 Inches
Product Height
8.75 Inches
UPC
697666006424
