Features
Inlet Size
1-1/4 Inch
Style
Convertible Jet
GPM
26.6 Gallons
- Goulds J+ Series Convertible Well Jet Pump
- Ideal for use in shallow wells (less than 25')
- Ideal for use in deep wells (25' to 90')
- Please Note* - Requires Shallow or Deep Well Package (Not Included)
- Corrosion-Resistant Cast Iron Construction
- Inside & out Electro-coated paint process
- 1-1/2 HP NEMA Standard Motor (115 / 230V)
- Built-In overload protection w/ automatic restart
- Can be run continuously without damage
- Bolt-Down Diffuser
- Stainless wear ring for extended performance
- F.D.A Compliant Glass Filled Noryl® Impeller
- Corrosion and abrasion resistant design
- Protected Mechanical Seal
- Retains water in the casing to prevent run-dry occurrences
- Includes Factory Pre-Wired 30/50 Pressure Switch
- Allows for reliable automatic operation
- Made For Easy Service
- Dual-compartment motor for easier wiring
- Back-pullout design won't disturb piping
- 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
J15
General Information
Product Category
Water Pump
Motor
Voltage
115-230 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
26.6 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
NORYL
Handles Solids
No
Maximum PSI
80
Total Head Lift
90 Feet
Submersible
No
Engine
Horsepower
1.5 hp
Overview
Product Category
Water Pump
Weight
55 Pounds
Consumer Warranty
1 Year
Product Length
24 Inches
Product Width
9.5 Inches
Product Height
8.75 Inches
UPC
697666006387
Accessories
Injector Kit
Sold Separately
Reviews
Goulds J15 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Jim, the Water Pump Expert
How-To Articles
Priming Your Well Pump
Well pumps have been around for centuries, but the days of using a bucket and r...
How to Pick the Perfect Specialty Water Pump
All water pumps are built for the same purpose: moving water. But there are s...
Water Pumps How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

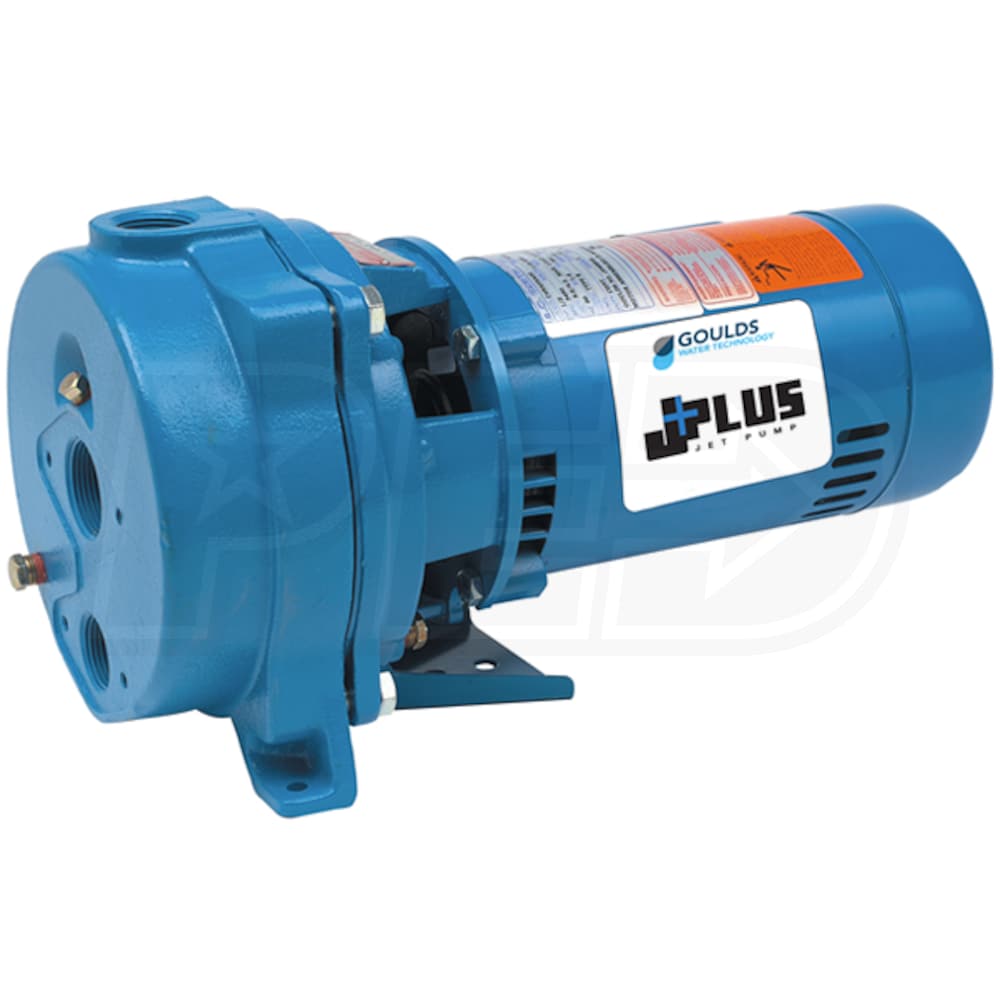

Goulds J+ Series - 26.6 GPM 1-1/2 HP Cast Iron Convertible Jet Pump
