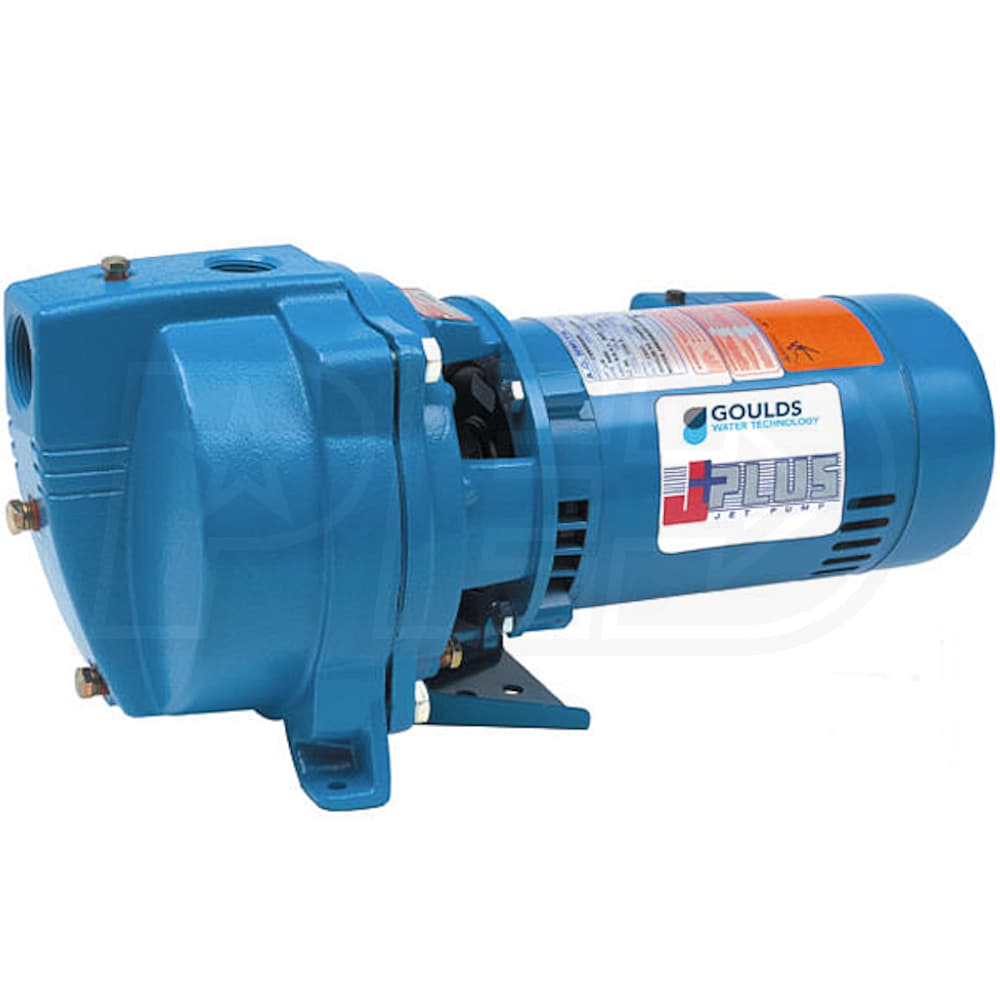

Goulds JS+ Series - 24.8 GPM 1 HP Cast Iron Shallow Well Jet Pump

Model:

J10S

Write a Review
Add to Cart for Price
Free Shipping
  Learn More About Free Freight
Backordered
Estimated Availability September 14, 2021
Shipping to60601

Goulds JS+ Series - 24.8 GPM 1 HP Cast Iron Shallow Well Jet Pump
Goulds JS+ Series - 24.8 GPM 1 HP Cast Iron Shallow Well Jet Pump
Model: J10S
Add to Cart for Price
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Inlet Size

1-1/4"

Style

Shallow Well

GPM

24.8 Gallons

  • Goulds JS+ Series Shallow Well Jet Pump
  • Ideal for use in pumping at depths of 25' or less
  • Corrosion-Resistant Cast Iron Construction
  • Inside & out Electro-coated paint process
  • 1 HP NEMA Standard Motor (115 / 230V)
  • Built-In overload protection w/ automatic restart
  • Can be run continuously without damage
  • Built-In Shallow Well Adapter
  • Provides a compact design w/o the need for a separate adapter
  • Bolt-Down Diffuser
  • Stainless wear ring for extended performance
  • F.D.A Compliant Glass Filled NorylŪ Impeller
  • Corrosion and abrasion resistant design
  • Protected Mechanical Seal
  • Retains water in the casing to prevent run-dry occurrences
  • Includes Factory Pre-Wired 30/50 Pressure Switch
  • Allows for reliable automatic operation
  • Made For Easy Service
  • Dual-compartment motor for easier wiring
  • Back-pullout design won't disturb piping
  • Nozzle clean-out plug in pump case
  • 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

J10S
specs product image PID-96956
Motor
Voltage
115-230 Volt
Pump
Gallons Per Minute
24.8 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Impeller Material
NORYL
Suction Head
25 Feet
Maximum PSI
74
Engine
Horsepower
1 hp
Overview
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
18.75 Inches
Product Width
9.875 Inches
Product Height
8.75 Inches
UPC
697666006370
