Features
Inlet Size
1-1/4"
Style
Convertible Jet
GPM
24.8 Gallons

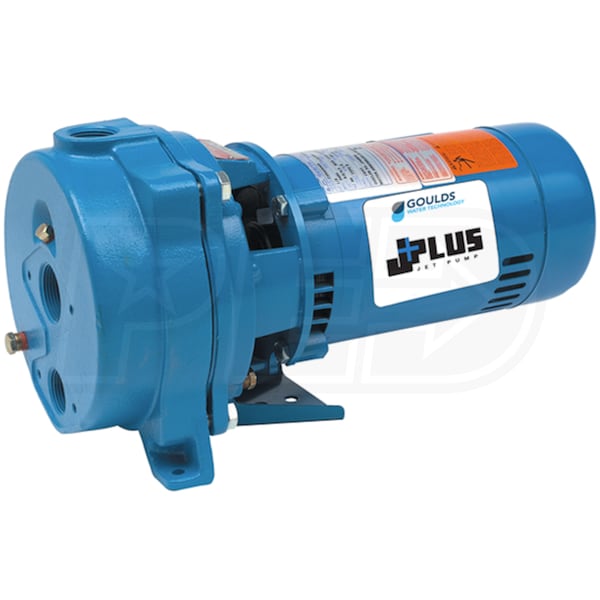

- Goulds J+ Series Convertible Well Jet Pump
- Ideal for use in shallow wells (less than 25')
- Ideal for use in deep wells (25' to 90')
- Please Note* - Requires Shallow or Deep Well Package (Not Included)
- Corrosion-Resistant Cast Iron Construction
- Inside & out Electro-coated paint process
- 1 HP NEMA Standard Motor (115 / 230V)
- Built-In overload protection w/ automatic restart
- Can be run continuously without damage
- Bolt-Down Diffuser
- Stainless wear ring for extended performance
- F.D.A Compliant Glass Filled Noryl® Impeller
- Corrosion and abrasion resistant design
- Protected Mechanical Seal
- Retains water in the casing to prevent run-dry occurrences
- Includes Factory Pre-Wired 30/50 Pressure Switch
- Allows for reliable automatic operation
- Made For Easy Service
- Dual-compartment motor for easier wiring
- Back-pullout design won't disturb piping
- 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
J10
Motor
Voltage
115-230 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
24.8 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Impeller Material
NORYL
Handles Solids
No
Maximum PSI
74
Total Head Lift
90 Feet
Engine
Horsepower
1 hp
Accessories
Injector Kit
Sold Separately
Overview
Weight
55 Pounds
Consumer Warranty
1 Year
Product Length
21.5 Inches
Product Width
9.5 Inches
Product Height
8.75 Inches
UPC
697666006363
