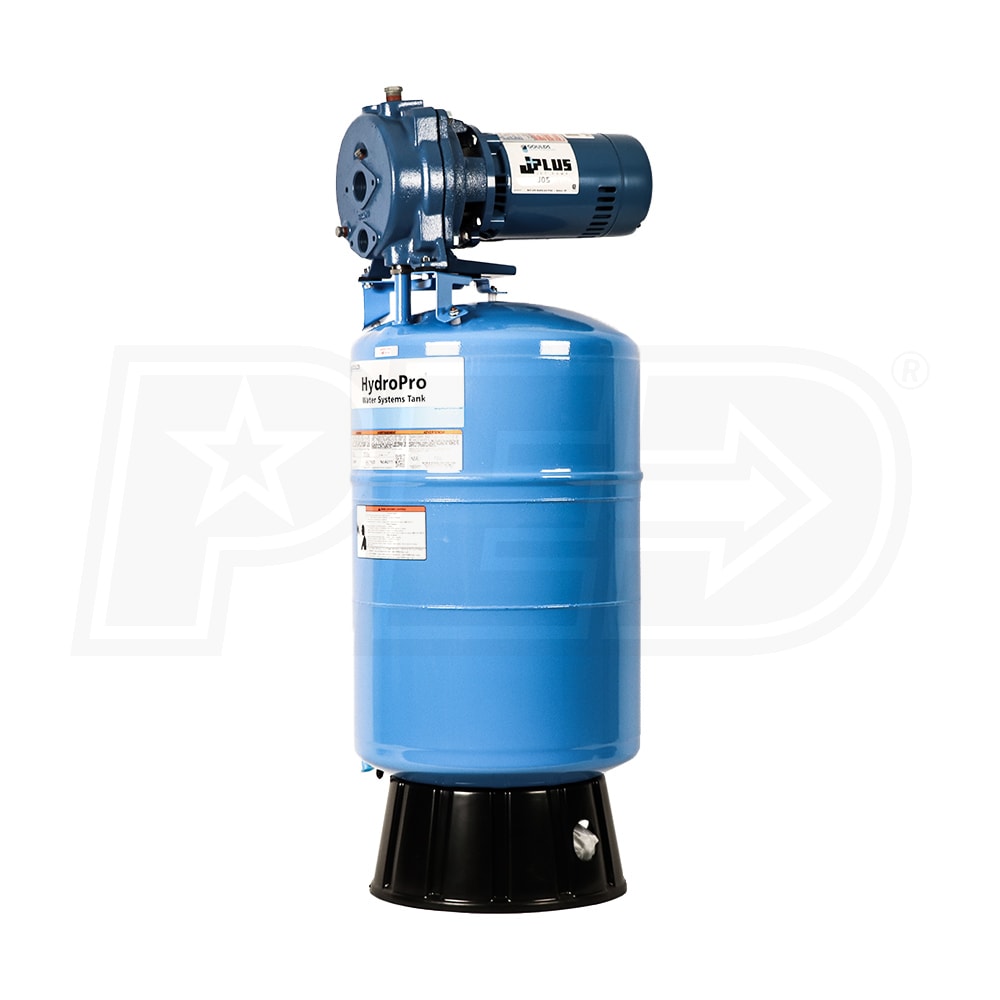

Goulds 1/2 HP Cast Iron Convertible Jet Pump w/ 19.9-Gallon Tank

Model:

J05L

Write A Review
Add to Cart for Price
Was $2,541.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks

Goulds 1/2 HP Cast Iron Convertible Jet Pump w/ 19.9-Gallon Tank
Goulds 1/2 HP Cast Iron Convertible Jet Pump w/ 19.9-Gallon Tank
Model: J05L
Add to Cart for Price
Was $2,541.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4 Inch

Style

Convertible Jet

GPM

17.5 Gallons

  • Goulds J+ Series Convertible Well Jet Pump w/ 19.9-Gallon Tank
  • Ideal for use in shallow wells (less than 25')
  • Ideal for use in deep wells (25' to 90')
  • Please Note* - Requires Shallow or Deep Well Package (Not Included)
  • Corrosion-Resistant Cast Iron Construction
  • Inside & out Electro-coated paint process
  • 1/2 HP NEMA Standard Motor (115 / 230V)
  • Built-In overload protection w/ automatic restart
  • Can be run continuously without damage
  • Bolt-Down Diffuser
  • Stainless wear ring for extended performance
  • F.D.A Compliant Glass Filled Noryl® Impeller
  • Corrosion and abrasion resistant design
  • Protected Mechanical Seal
  • Retains water in the casing to prevent run-dry occurrences
  • Includes Factory Pre-Wired 30/50 Pressure Switch
  • Allows for reliable automatic operation
  • Made For Easy Service
  • Dual-compartment motor for easier wiring
  • Back-pullout design won't disturb piping
  • Includes 19.9-Gallon, Powder Coated Steel Tank
  • Designed for indoor applications, protected from the elements
  • Heavy-duty, Butyl rubber diaphragm, separates air & water
  • Please see spec sheet for additional tank specs
  • 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

J05L
specs product image PID-96961
General Information
Product Category
Water Pump
Motor
Voltage
115-230 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
17.5 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
NORYL
Handles Solids
No
Maximum PSI
63
Total Head Lift
90 Feet
Submersible
No
Engine
Horsepower
0.5 HP
Overview
Product Category
Water Pump
Assembly Required
Yes
Weight
58 Pounds
Consumer Warranty
1 Year
Product Length
17 Inches
Product Width
15.34 Inches
Product Height
41.7 Inches
UPC
697666107923
Accessories
Injector Kit
Sold Separately
