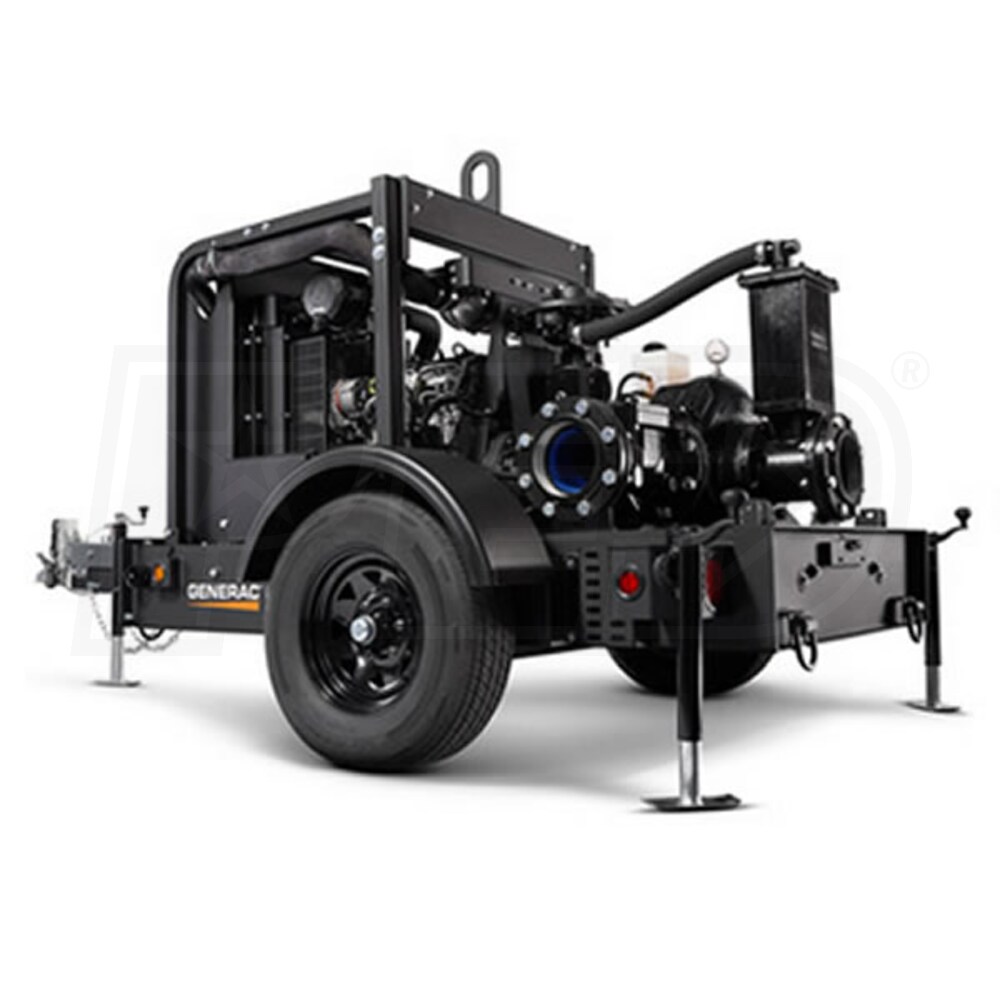

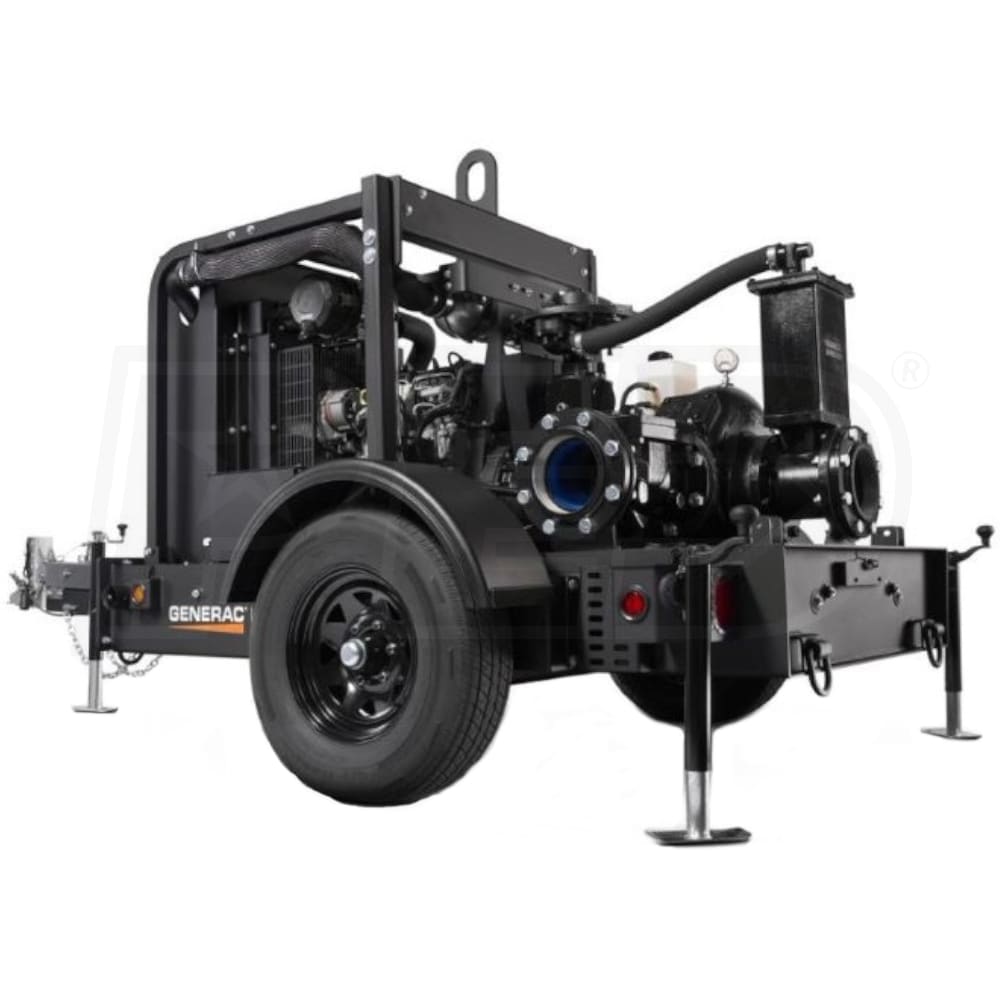

Generac MTP4DZD - 1450 GPM (4") Dry Prime Trailer Mounted Towable Diesel Diaphram Trash Pump
Model:
6964
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
4 Inch
Style
Trash
GPM
1450 Gallons
Engine
Deutz
- Generac MTP4DZD Trailer-Mounted 4" Diesel Trash Pump
- Features high performance priming system that handles solids up to 3"
- Deutz D2.9 Water-Cooled Diesel Engine
- Rated at 49 HP @ 2600 RPM
- EPA Final Tier 4 approved
- Steel, single wall 113 gallon fuel tank
- Built-in containment for all engine fluids
- Cornell 4NNTL Diaphragm Dry Prime Centrifugal Pump
- Cast iron pump casing and impeller (ASTM A48, Class 30)
- Impeller design incorporated with deflector vanes and pumpout vanes
- Run-Dry System For Continuous Operations
- 1450 GPM pump output
- 165 feet total dynamic head
- Flip-Tongue Trailer W/ 2" Ball Hitch
- DOT approved LED tail, side, brake, and directional lights
- 6000 lb. torsion axle with surge brakes and 8-ply tubeless tires
- Durable Steel Roll Cage
- UV & fade resistant, high temperature cured, black polyester power paint
- Protects pump, radiator, and other components from damage
- Four-corner leveling for stability and complete fuel usage
- LOFA CP750 Digital Controller
- Large back-lit LCD display for easy service and maintenance
- Automatic start/stop control for use with two-switch inputs
- 2 Years / 2000 Hours Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
6964
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
1450 Gallons
Inlet Diameter
4 Inch
Outlet Diameter
4/5 Inch
Self Priming
Yes
Pump Head Material
Cast Iron
Quick Clean Out
Yes
Mechanical Seal Material
Tungsten Carbide
Housing Material
Steel
Impeller Material
Cast Iron
Solids Handling Size
3 inch
Handles Solids
Yes
Suction Head
29 Feet
Total Head Lift
165 Feet
Submersible
No
Engine
Engine Brand
Deutz
Starting System
12-Volt Key Start
Low Oil Shutdown
Yes
Continuous Operation
Yes
Horsepower
49 hp
Fuel Tank Size
113 Gallons
Run Time
31.39 Hours
Overview
Product Category
Water Pump
Weight
3836 Pounds
Certification
Final Tier 6
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
150.12 Inches
Product Width
75 Inches
Product Height
73.88 Inches
Accessories
Lifting Hook
Yes
Wheel Kit
Yes
