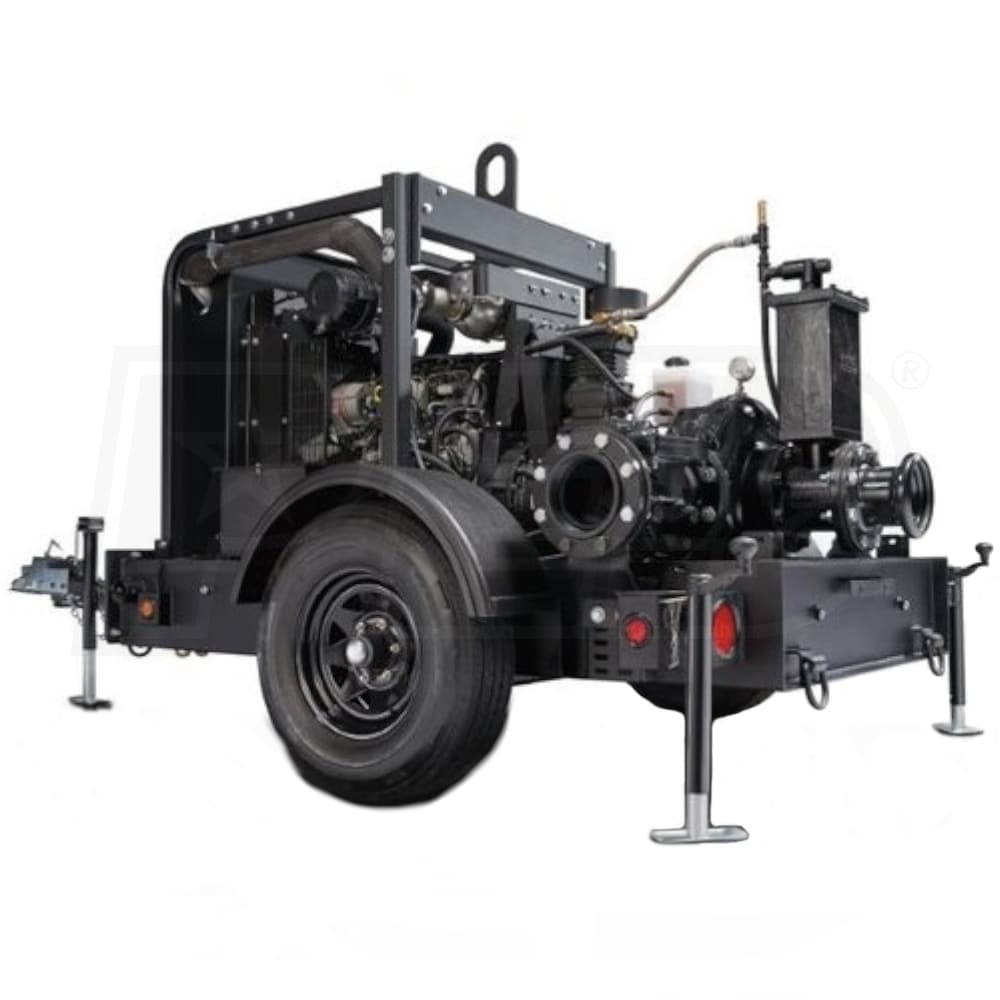

Generac MTP6DZV - 2750 GPM (6") Dry Prime Trailer Mounted Towable Diesel Venturi Trash Pump

Generac MTP6DZV - 2750 GPM (6") Dry Prime Trailer Mounted Towable Diesel Venturi Trash Pump
Model: 6963
$42,799.00
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Factory-Direct
Ships in 7-14 Business Days
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, California, Connecticut, Hawaii, Indiana, North Dakota, Wisconsin or any destination outside of the United States
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
6"
Style
Trash Pumps
GPM
2750
Gallons
Engine
Deutz
Inlet Size
6"
Style
Trash
GPM
2750 Gallons
Engine
Deutz
Features
Features
  • Generac MTP6DZV Trailer-Mounted 6" Diesel Trash Pump
  • Features high performance priming system that handles solids up to 3"
  • Deutz TD2.9 Water-Cooled, Turbo-Charged Diesel Engine
  • Rated at 75 HP @ 2600 RPM
  • EPA Final Tier 4 approved
  • Steel, single wall 113 gallon fuel tank
  • Built-in containment for all engine fluids
  • Cornell 6NNT Venturi Dry Prime Centrifugal Pump
  • Cast iron pump casing and impeller (ASTM A48, Class 30)
  • Impeller design incorporated with deflector vanes and pumpout vanes
  • Run-Dry System For Continuous Operations
  • 2750 GPM pump output
  • 150 feet total dynamic head
  • Flip-Tongue Trailer W/ 2" Ball Hitch
  • DOT approved LED tail, side, brake, and directional lights
  • 6000 lb. torsion axle with surge brakes and 8-ply tubeless tires
  • Durable Steel Roll Cage
  • UV & fade resistant, high temperature cured, black polyester power paint
  • Protects pump,radiator, and other components from damage
  • Four-corner leveling for stability and complete fuel usage
  • LOFA CP750 Digital Controller
  • Large back-lit LCD display for easy service and maintenance
  • Automatic start/stop control for use with two-switch inputs
  • 2 Years / 2000 Hours Warranty
Specifications
Engine
Engine Brand
Deutz
Starting System
12-Volt Key Start
Low Oil Shutdown
Yes
Continuous Operation
Yes
Horsepower
75 hp
Fuel Tank Size
113 Gallons
Run Time
31.39 Hours
Pump
Gallons Per Minute
2750 Gallons
Inlet Diameter
6"
Outlet Diameter
6"
Self Priming
Yes
Pump Head Material
Cast Iron
Quick Clean Out
Yes
Mechanical Seal Material
Tungsten Carbide
Housing Material
Steel
Impeller Material
Cast Iron
Solids Handling Size
3 inch
Handles Solids
Yes
Suction Head
30 Feet
Total Head Lift
150 Feet
Submersible
No
Accessories
Lifting Hook
Yes
Wheel Kit
Yes
Overview
Certification
Final Tier 7
Weight
4275 Pounds
Product Length
150.12 Inches
Product Width
75 Inches
Product Height
73.88 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years

Inlet Size
6"
Style
Trash Pumps
GPM
2750
Gallons
Engine
Deutz
Inlet Size
6"
Style
Trash
GPM
2750 Gallons
Engine
Deutz
Features
Features
  • Generac MTP6DZV Trailer-Mounted 6" Diesel Trash Pump
  • Features high performance priming system that handles solids up to 3"
  • Deutz TD2.9 Water-Cooled, Turbo-Charged Diesel Engine
  • Rated at 75 HP @ 2600 RPM
  • EPA Final Tier 4 approved
  • Steel, single wall 113 gallon fuel tank
  • Built-in containment for all engine fluids
  • Cornell 6NNT Venturi Dry Prime Centrifugal Pump
  • Cast iron pump casing and impeller (ASTM A48, Class 30)
  • Impeller design incorporated with deflector vanes and pumpout vanes
  • Run-Dry System For Continuous Operations
  • 2750 GPM pump output
  • 150 feet total dynamic head
  • Flip-Tongue Trailer W/ 2" Ball Hitch
  • DOT approved LED tail, side, brake, and directional lights
  • 6000 lb. torsion axle with surge brakes and 8-ply tubeless tires
  • Durable Steel Roll Cage
  • UV & fade resistant, high temperature cured, black polyester power paint
  • Protects pump,radiator, and other components from damage
  • Four-corner leveling for stability and complete fuel usage
  • LOFA CP750 Digital Controller
  • Large back-lit LCD display for easy service and maintenance
  • Automatic start/stop control for use with two-switch inputs
  • 2 Years / 2000 Hours Warranty
Specifications
Engine
Engine Brand
Deutz
Starting System
12-Volt Key Start
Low Oil Shutdown
Yes
Continuous Operation
Yes
Horsepower
75 hp
Fuel Tank Size
113 Gallons
Run Time
31.39 Hours
Pump
Gallons Per Minute
2750 Gallons
Inlet Diameter
6"
Outlet Diameter
6"
Self Priming
Yes
Pump Head Material
Cast Iron
Quick Clean Out
Yes
Mechanical Seal Material
Tungsten Carbide
Housing Material
Steel
Impeller Material
Cast Iron
Solids Handling Size
3 inch
Handles Solids
Yes
Suction Head
30 Feet
Total Head Lift
150 Feet
Submersible
No
Accessories
Lifting Hook
Yes
Wheel Kit
Yes
Overview
Certification
Final Tier 7
Weight
4275 Pounds
Product Length
150.12 Inches
Product Width
75 Inches
Product Height
73.88 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Specs
+
Specifications
Engine
Engine Brand
Deutz
Starting System
12-Volt Key Start
Low Oil Shutdown
Yes
Continuous Operation
Yes
Horsepower
75 hp
Fuel Tank Size
113 Gallons
Run Time
31.39 Hours
Pump
Gallons Per Minute
2750 Gallons
Inlet Diameter
6"
Outlet Diameter
6"
Self Priming
Yes
Pump Head Material
Cast Iron
Quick Clean Out
Yes
Mechanical Seal Material
Tungsten Carbide
Housing Material
Steel
Impeller Material
Cast Iron
Solids Handling Size
3 inch
Handles Solids
Yes
Suction Head
30 Feet
Total Head Lift
150 Feet
Submersible
No
Accessories
Lifting Hook
Yes
Wheel Kit
Yes
Overview
Certification
Final Tier 7
Weight
4275 Pounds
Product Length
150.12 Inches
Product Width
75 Inches
Product Height
73.88 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
