Franklin Electric 92980055
Franklin Electric 92980055
Hover to zoom
1 Of 5
Franklin Electric 92980055
Franklin Electric 92980055

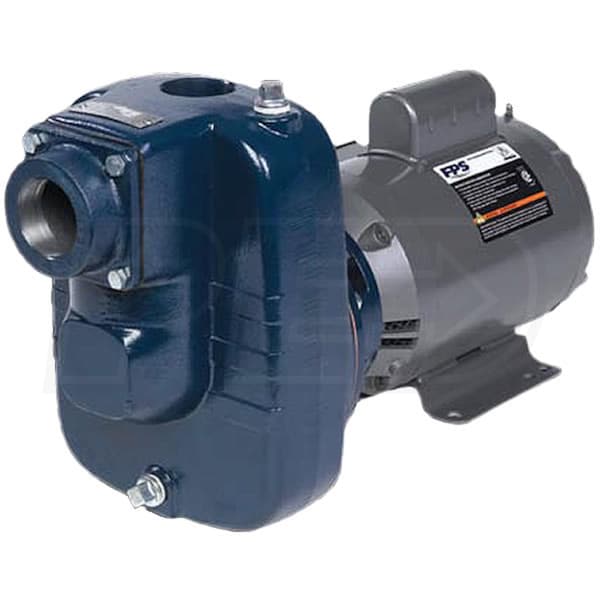

Franklin Electric Turf Boss 160 GPM 5 HP Self-Priming Cast Iron Sprinkler Pump (3-Phase)
Model: 92980055
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$1,542.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
2-1/2"
Style
Sprinkler Pumps
GPM
160
Gallons
Inlet Size
2-1/2"
Style
Sprinkler
GPM
160 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • FPS Series Turf Boss 5 HP Sprinkler Pump (3-Phase)
  • Designed for both high pressure & high capacity applications
  • Lawn/Turf irrigation, water transfer, construction & municipal use
  • Heavy Duty, Cast Iron Pump Housing
  • Highly durable, large design for easy self-priming & quiet operation
  • A.O. Smith JM Frame Motor (3600 RPM)
  • Versatile design accepts 208-230/460V power
  • Heav Duty Cast Iron Impeller & Diffuser
  • For maximum durability & efficient operation you can rely on
  • Lifts Water From A Depth Up To 25' - Self-Priming Design
  • Built-in suction check valve for fast priming & prevents back flow
  • Carbon/Ceramic/Stainless Steel Mechanical Seal & Viton Elastomers
  • Provides a reliable seal against water leakage
  • Engineered For Easy Service
  • Back pull-out design, leaves plumbing & base/case in place
  • 2-1/2" FNPT Suction & 2" FNPT Discharge
  • Allows for use in a variety of applications
  • 76 PSI Max & Handles Water Temperatures up to 120°F
  • 1-Year Limited Warranty
Specifications
Motor
Voltage
230 Volt 3-Phase
Pump
Gallons Per Minute
160 Gallons
Inlet Diameter
2-1/2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
76
Total Head Lift
175 Feet
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
5 hp
Overview
Weight
134 Pounds
Consumer Warranty
1 Year
Product Length
23.38 Inches
Product Width
9.75 Inches
Product Height
13.88 Inches
Additional Model Numbers
FTB5CI-3, 92980055

Inlet Size
2-1/2"
Style
Sprinkler Pumps
GPM
160
Gallons
Inlet Size
2-1/2"
Style
Sprinkler
GPM
160 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • FPS Series Turf Boss 5 HP Sprinkler Pump (3-Phase)
  • Designed for both high pressure & high capacity applications
  • Lawn/Turf irrigation, water transfer, construction & municipal use
  • Heavy Duty, Cast Iron Pump Housing
  • Highly durable, large design for easy self-priming & quiet operation
  • A.O. Smith JM Frame Motor (3600 RPM)
  • Versatile design accepts 208-230/460V power
  • Heav Duty Cast Iron Impeller & Diffuser
  • For maximum durability & efficient operation you can rely on
  • Lifts Water From A Depth Up To 25' - Self-Priming Design
  • Built-in suction check valve for fast priming & prevents back flow
  • Carbon/Ceramic/Stainless Steel Mechanical Seal & Viton Elastomers
  • Provides a reliable seal against water leakage
  • Engineered For Easy Service
  • Back pull-out design, leaves plumbing & base/case in place
  • 2-1/2" FNPT Suction & 2" FNPT Discharge
  • Allows for use in a variety of applications
  • 76 PSI Max & Handles Water Temperatures up to 120°F
  • 1-Year Limited Warranty
Specifications
Motor
Voltage
230 Volt 3-Phase
Pump
Gallons Per Minute
160 Gallons
Inlet Diameter
2-1/2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
76
Total Head Lift
175 Feet
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
5 hp
Overview
Weight
134 Pounds
Consumer Warranty
1 Year
Product Length
23.38 Inches
Product Width
9.75 Inches
Product Height
13.88 Inches
Additional Model Numbers
FTB5CI-3, 92980055
Product Specs
+
Specifications
Motor
Voltage
230 Volt 3-Phase
Pump
Gallons Per Minute
160 Gallons
Inlet Diameter
2-1/2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
76
Total Head Lift
175 Feet
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
5 hp
Overview
Weight
134 Pounds
Consumer Warranty
1 Year
Product Length
23.38 Inches
Product Width
9.75 Inches
Product Height
13.88 Inches
Additional Model Numbers
FTB5CI-3, 92980055
