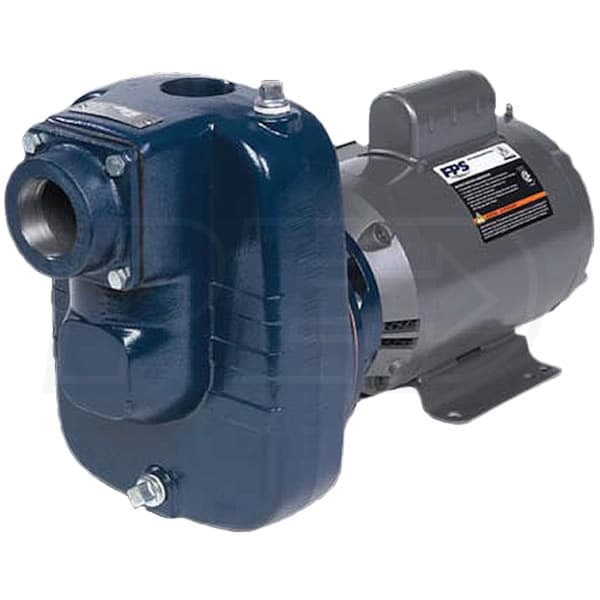

Franklin Electric Turf Boss 120 GPM 3 HP Self-Priming Cast Iron Sprinkler Pump (3-Phase)

Franklin Electric Turf Boss 120 GPM 3 HP Self-Priming Cast Iron Sprinkler Pump (3-Phase)
Model: FTB3CI-3
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
2"
Style
Sprinkler Pumps
GPM
120
Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • FPS Series Turf Boss 3 HP Sprinkler Pump (Three Phase)
  • Designed for both high pressure & high capacity applications
  • Lawn/Turf irrigation, water transfer, construction & municipal use
  • Heavy Duty, Cast Iron Pump Housing
  • Highly durable, large design for easy self-priming & quiet operation
  • A.O. Smith JM Frame Motor (3600 RPM)
  • Versatile design accepts 208-230/460V power
  • Heavy Duty Cast Iron Impeller & Diffuser
  • For maximum durability & efficient operation you can rely on
  • Lifts Water From A Depth Up To 25' - Self-Priming Design
  • Built-in suction check valve for fast priming & prevents back flow
  • Carbon/Ceramic/Stainless Steel Mechanical Seal & Viton Elastomers
  • Provides a reliable seal against water leakage
  • Engineered For Easy Service
  • Back pull-out design, leaves plumbing & base/case in place
  • 2" FNPT Suction & Discharge
  • Allows for use in a variety of applications
  • 60 PSI Max & Handles Water Temperatures up to 120F
  • 1-Year Limited Warranty
Specifications
Motor
Voltage
230V 3-Phase
Engine
Continuous Operation
Yes
Horsepower
3 hp
Pump
Gallons Per Minute
120 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
138 Feet
Maximum PSI
60
Submersible
No
Overview
Weight
134 Pounds
Product Length
23.75 Inches
Product Width
9.75 Inches
Product Height
12.0 Inches
Consumer Warranty
1 Year

Inlet Size
2"
Style
Sprinkler Pumps
GPM
120
Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • FPS Series Turf Boss 3 HP Sprinkler Pump (Three Phase)
  • Designed for both high pressure & high capacity applications
  • Lawn/Turf irrigation, water transfer, construction & municipal use
  • Heavy Duty, Cast Iron Pump Housing
  • Highly durable, large design for easy self-priming & quiet operation
  • A.O. Smith JM Frame Motor (3600 RPM)
  • Versatile design accepts 208-230/460V power
  • Heavy Duty Cast Iron Impeller & Diffuser
  • For maximum durability & efficient operation you can rely on
  • Lifts Water From A Depth Up To 25' - Self-Priming Design
  • Built-in suction check valve for fast priming & prevents back flow
  • Carbon/Ceramic/Stainless Steel Mechanical Seal & Viton Elastomers
  • Provides a reliable seal against water leakage
  • Engineered For Easy Service
  • Back pull-out design, leaves plumbing & base/case in place
  • 2" FNPT Suction & Discharge
  • Allows for use in a variety of applications
  • 60 PSI Max & Handles Water Temperatures up to 120F
  • 1-Year Limited Warranty
Specifications
Motor
Voltage
230V 3-Phase
Engine
Continuous Operation
Yes
Horsepower
3 hp
Pump
Gallons Per Minute
120 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
138 Feet
Maximum PSI
60
Submersible
No
Overview
Weight
134 Pounds
Product Length
23.75 Inches
Product Width
9.75 Inches
Product Height
12.0 Inches
Consumer Warranty
1 Year
Product Specs
+
Specifications
Motor
Voltage
230V 3-Phase
Engine
Continuous Operation
Yes
Horsepower
3 hp
Pump
Gallons Per Minute
120 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
138 Feet
Maximum PSI
60
Submersible
No
Overview
Weight
134 Pounds
Product Length
23.75 Inches
Product Width
9.75 Inches
Product Height
12.0 Inches
Consumer Warranty
1 Year
