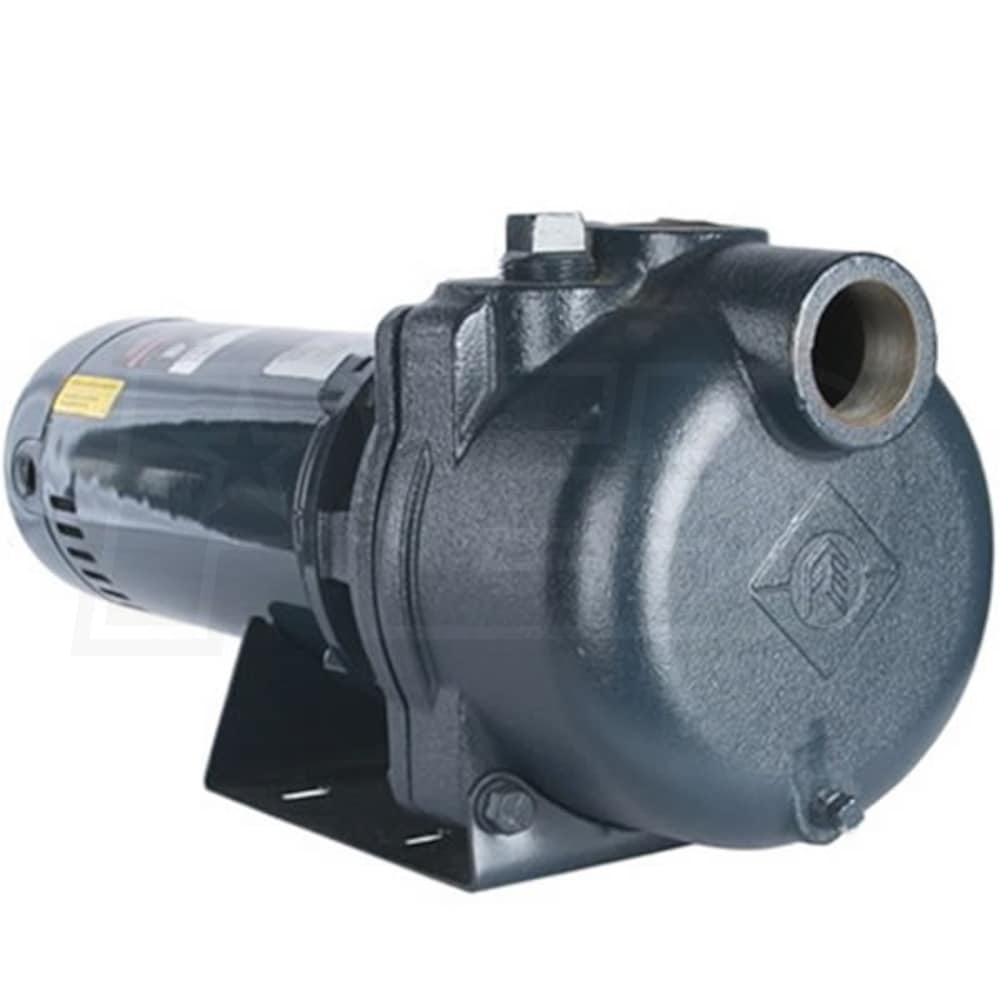

Franklin Electric Turf Boss 80 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump
Model: 92980020
+
Share This Product
-
Product Description
-
3Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/2"
Style

GPM
80
Gallons
Inlet Size
1-1/2"
Style
Sprinkler
GPM
80 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- FPS Series Turf Boss 2 HP Sprinkler Pump (230V)
- For use in irrigation, construction, commercial, municipal
- Light industrial, residential and water transfer
- Heavy Duty Cast Iron Pump Case w/ Base Plate
- Highly durable, additional support, quiet operation and long life
- 230V A.O. Smith 56J Motor (3450 RPM)
- *Please Note* NOT A Dual Voltage Motor, Only works @ 230V
- NORYL™ Impeller w/ Stainless Steel Eye Seal
- Strong and lightweight for efficient operation you can rely on
- Lifts Water From A Depth Up To 25' - Self-Priming Design
- 1" Priming plug for faster start-up, No additional priming required
- 5/8" Rotating Mechanical Seal
- Provides a reliable seal against water leakage
- Engineered For Easy Service
- Back pull-out design, leaves plumbing & base/case in place
- 1-1/2" FNPT Suction & Discharge
- Allows for use in a variety of applications
- 52 PSI Max & Handles Water Temperatures up to 120°F
- 1-Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
NORYL
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
52
Total Head Lift
130 Feet
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
2 hp
Overview
Weight
58 Pounds
Consumer Warranty
1 Year
Product Length
21.6 Inches
Product Width
9 Inches
Product Height
8.87 Inches
Additional Model Numbers
FTB2CI, 92980020
Inlet Size
1-1/2"
Style

GPM
80
Gallons
Inlet Size
1-1/2"
Style
Sprinkler
GPM
80 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- FPS Series Turf Boss 2 HP Sprinkler Pump (230V)
- For use in irrigation, construction, commercial, municipal
- Light industrial, residential and water transfer
- Heavy Duty Cast Iron Pump Case w/ Base Plate
- Highly durable, additional support, quiet operation and long life
- 230V A.O. Smith 56J Motor (3450 RPM)
- *Please Note* NOT A Dual Voltage Motor, Only works @ 230V
- NORYL™ Impeller w/ Stainless Steel Eye Seal
- Strong and lightweight for efficient operation you can rely on
- Lifts Water From A Depth Up To 25' - Self-Priming Design
- 1" Priming plug for faster start-up, No additional priming required
- 5/8" Rotating Mechanical Seal
- Provides a reliable seal against water leakage
- Engineered For Easy Service
- Back pull-out design, leaves plumbing & base/case in place
- 1-1/2" FNPT Suction & Discharge
- Allows for use in a variety of applications
- 52 PSI Max & Handles Water Temperatures up to 120°F
- 1-Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
NORYL
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
52
Total Head Lift
130 Feet
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
2 hp
Overview
Weight
58 Pounds
Consumer Warranty
1 Year
Product Length
21.6 Inches
Product Width
9 Inches
Product Height
8.87 Inches
Additional Model Numbers
FTB2CI, 92980020
Product Specs
+−
Specifications
Motor
Voltage
240 Volt
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
NORYL
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
52
Total Head Lift
130 Feet
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
2 hp
Overview
Weight
58 Pounds
Consumer Warranty
1 Year
Product Length
21.6 Inches
Product Width
9 Inches
Product Height
8.87 Inches
Additional Model Numbers
FTB2CI, 92980020
