Franklin Electric 92981020
Franklin Electric 92981020
Hover to zoom
1 Of 5
Franklin Electric 92981020
Franklin Electric 92981020

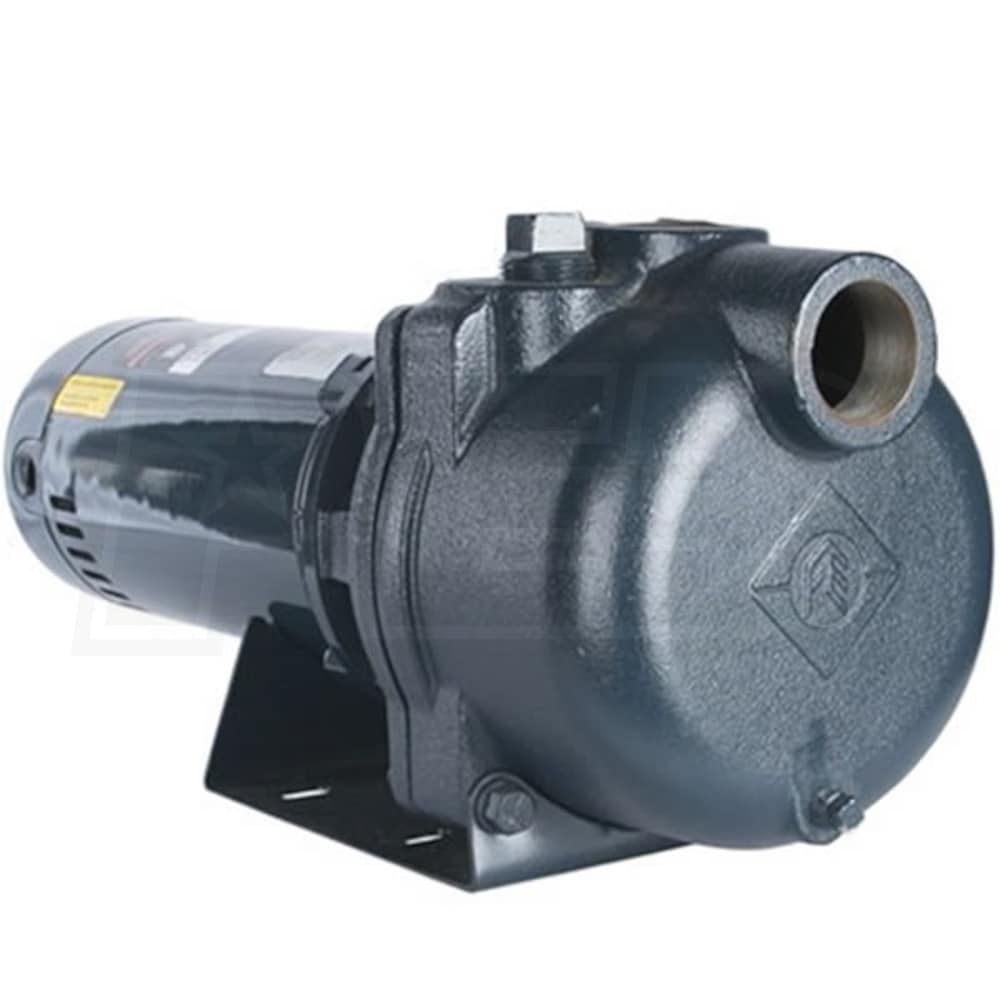

Franklin Electric Turf Boss 80 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump w/ SS Impeller
Model: 92981020
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews(5)
Write a Review
Q&A (1)
$765.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Tuesday, Jan 19th
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 5
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−

Inlet Size
1-1/2"
Style
Sprinkler Pumps
GPM
80
Gallons
Inlet Size
1-1/2"
Style
Sprinkler
GPM
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • FPS Series Turf Boss 2 HP Sprinkler Pump (230V)
  • Great for residential and light commercial applications
  • Sprinkler systems, light agg. irrigation & industrial liquid transfer
  • Heavy Duty Cast Iron Pump Case w/ Base Plate
  • Highly durable, additional support, quiet operation and long life
  • 230V A.O. Smith 56J Motor (3450 RPM)
  • *Please Note* NOT A Dual Voltage Motor, Only works @ 230V
  • 304 Stainless Steel Impeller w/ Stainless Steel Eye Seal
  • For Maximum Durability & efficient operation you can rely on
  • Lifts Water From A Depth Up To 25' - Self-Priming Design
  • 1" Priming plug for faster start-up, No additional priming required
  • 5/8" Rotating Mechanical Seal
  • Provides a reliable seal against water leakage
  • Engineered For Easy Service
  • Back pull-out design, leaves plumbing & base/case in place
  • 1-1/2" FNPT Suction & Discharge
  • Allows for use in a variety of applications
  • 52 PSI Max & Handles Water Temperatures up to 120°F
  • 1-Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
52
Total Head Lift
130 Feet
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
2 hp
Overview
Weight
60 Pounds
Consumer Warranty
1 Year
Product Length
21.6 Inches
Product Width
9 Inches
Product Height
8.87 Inches
Additional Model Numbers
FTB2CI-SSI, 92981020

Inlet Size
1-1/2"
Style
Sprinkler Pumps
GPM
80
Gallons
Inlet Size
1-1/2"
Style
Sprinkler
GPM
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • FPS Series Turf Boss 2 HP Sprinkler Pump (230V)
  • Great for residential and light commercial applications
  • Sprinkler systems, light agg. irrigation & industrial liquid transfer
  • Heavy Duty Cast Iron Pump Case w/ Base Plate
  • Highly durable, additional support, quiet operation and long life
  • 230V A.O. Smith 56J Motor (3450 RPM)
  • *Please Note* NOT A Dual Voltage Motor, Only works @ 230V
  • 304 Stainless Steel Impeller w/ Stainless Steel Eye Seal
  • For Maximum Durability & efficient operation you can rely on
  • Lifts Water From A Depth Up To 25' - Self-Priming Design
  • 1" Priming plug for faster start-up, No additional priming required
  • 5/8" Rotating Mechanical Seal
  • Provides a reliable seal against water leakage
  • Engineered For Easy Service
  • Back pull-out design, leaves plumbing & base/case in place
  • 1-1/2" FNPT Suction & Discharge
  • Allows for use in a variety of applications
  • 52 PSI Max & Handles Water Temperatures up to 120°F
  • 1-Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
52
Total Head Lift
130 Feet
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
2 hp
Overview
Weight
60 Pounds
Consumer Warranty
1 Year
Product Length
21.6 Inches
Product Width
9 Inches
Product Height
8.87 Inches
Additional Model Numbers
FTB2CI-SSI, 92981020
Product Specs
+−
Specifications
Motor
Voltage
240 Volt
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
52
Total Head Lift
130 Feet
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
2 hp
Overview
Weight
60 Pounds
Consumer Warranty
1 Year
Product Length
21.6 Inches
Product Width
9 Inches
Product Height
8.87 Inches
Additional Model Numbers
FTB2CI-SSI, 92981020
Reviews
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
(5)
+−
Franklin Electric 92981020 Reviews & Ratings
Product Q&A
(1)
+−
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+−
I am looking to replace two well pumps I have attached to my dock due to electrocution worries. One is for a sprinkler system. it pumps up 90 ft to the valves and then another 40 ft to the highest zone. 1 1/2 pipe all the way. This other is for a "creek/waterfalls. It pumps up 90ft in a 3" pipe and then free flows back down to the lake. What pumps do you recommend?
Mark Brock
from Tennessee
July 02, 2016
Answer
Thank you for your interest in Water Pumps Direct. Before I can answer your question, I would need to know the following:

Total head (suction & discharge lift)

Total pumping distance from the water source to the pump and from the pump to the furthest sprinkler head

Piping diameter on your suction and discharge (if already laid)

Total GPM & PSI requirements

Once you can provide this information, I'll be happy to assist you further.
