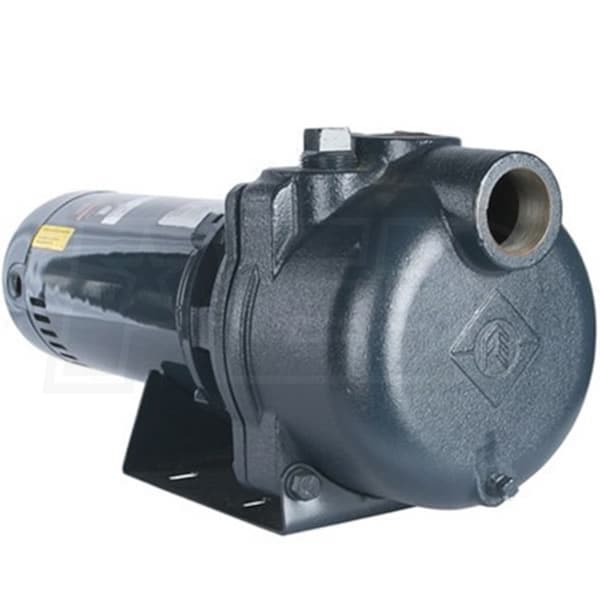

Franklin Electric Turf Boss 60 GPM 1 HP Self-Priming Cast Iron Sprinkler Pump
Model: 92980010
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/2"
Style
GPM
60
Gallons
Inlet Size
1-1/2"
Style
Sprinkler
GPM
60 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- FPS Series Turf Boss 1 HP Sprinkler Pump (115/230V)
- For use in irrigation, construction, commercial, municipal
- Light industrial, residential and water transfer
- Heavy Duty Cast Iron Pump Case w/ Base Plate
- Highly durable, additional support, quiet operation and long life
- 115/230V A.O. Smith 56J Motor (3450 RPM)
- Dual Voltage, easily adjustable and factory preset @ 230V
- NORYL™ Impeller w/ Stainless Steel Eye Seal
- Strong and lightweight for efficient operation you can rely on
- Lifts Water From A Depth Up To 25' - Self-Priming Design
- 1" Priming plug for faster start-up, No additional priming required
- 5/8" Rotating Mechanical Seal
- Provides a reliable seal against water leakage
- Engineered For Easy Service
- Back pull-out design, leaves plumbing & base/case in place
- 1-1/2" FNPT Suction & Discharge
- Allows for use in a variety of applications
- 46 PSI Max & Handles Water Temperatures up to 120°F
- 1-Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
60 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
NORYL
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
46
Total Head Lift
115 Feet
Submersible
No
Engine
Horsepower
1 hp
Overview
Weight
50 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
9 Inches
Product Height
8.87 Inches
Additional Model Numbers
FTB1CI, 92980010
Inlet Size
1-1/2"
Style
GPM
60
Gallons
Inlet Size
1-1/2"
Style
Sprinkler
GPM
60 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- FPS Series Turf Boss 1 HP Sprinkler Pump (115/230V)
- For use in irrigation, construction, commercial, municipal
- Light industrial, residential and water transfer
- Heavy Duty Cast Iron Pump Case w/ Base Plate
- Highly durable, additional support, quiet operation and long life
- 115/230V A.O. Smith 56J Motor (3450 RPM)
- Dual Voltage, easily adjustable and factory preset @ 230V
- NORYL™ Impeller w/ Stainless Steel Eye Seal
- Strong and lightweight for efficient operation you can rely on
- Lifts Water From A Depth Up To 25' - Self-Priming Design
- 1" Priming plug for faster start-up, No additional priming required
- 5/8" Rotating Mechanical Seal
- Provides a reliable seal against water leakage
- Engineered For Easy Service
- Back pull-out design, leaves plumbing & base/case in place
- 1-1/2" FNPT Suction & Discharge
- Allows for use in a variety of applications
- 46 PSI Max & Handles Water Temperatures up to 120°F
- 1-Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
60 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
NORYL
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
46
Total Head Lift
115 Feet
Submersible
No
Engine
Horsepower
1 hp
Overview
Weight
50 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
9 Inches
Product Height
8.87 Inches
Additional Model Numbers
FTB1CI, 92980010
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
60 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
NORYL
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
46
Total Head Lift
115 Feet
Submersible
No
Engine
Horsepower
1 hp
Overview
Weight
50 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
9 Inches
Product Height
8.87 Inches
Additional Model Numbers
FTB1CI, 92980010
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Jim
I need some direction. I need a new sprinkler pump but have some constraints to work within.
1. I only have 12 gauge, 15 amp service to my dock where the pump will be located.
2. My biggest zone requires 14 gallons per minute of output.
3. My yard has a 15 foot rise from the lake to the highest pumping point.
4. The furthest point from the pump is about 200 feet. So the run is about 200 feet.
5. I would like to have it on a pressure switch versus a box control shut off. I have a few spigots on the system that I use all the time. I would prefer not to turn the sprinkler system on every time I want to use a spigot.
6.My system is 1 inch pvc piping.
I put in the sprinkler system in myself and sized it for a shallow well pump that has lower amperage requirements than the irrigation pumps. I think I am limited to a ¾ hp pump because of my amperage limits.
My questions...
1. Will a 3/4 hp pump provide enough water to my furthest zone... 200 feet run and 15 foot lift.
2. Can I put a pressure switch on the irrigation pumps so I can leave the system under 40 pounds of pressure at all times?
3. If I put a pressure switch on the system, do I need to add an expansion tank?
If I can use the pressure switch, I think you offer two 3/4 HP pumps that will work... The Red Lion and the Wayne. Do you offer other options in that category?
I appreciate any direction or assistance you can provide.
Scott
Scott Miles
from Missouri
June 30, 2016
Answer
Based on your lift and distance, the 3/4HP pump would only provide you with 5-10GPM @ 40PSI if your lucky. Can you please tell me the lift from the water surface to to the pump?
