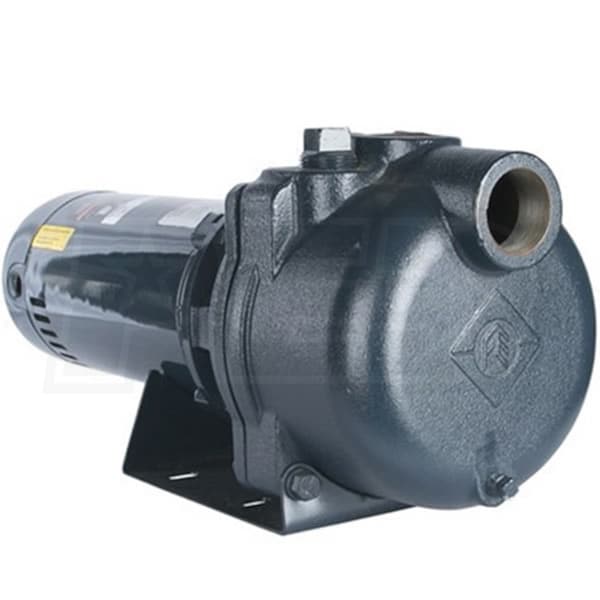

Franklin Electric Turf Boss 70 GPM 1-1/2 HP Self-Priming Cast Iron Sprinkler Pump w/ SS Impeller (3-Phase)
Model:
92983015
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
1-1/2 Inch
Style
Sprinkler
GPM
70 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- FPS Series Turf Boss 1-1/2 HP Sprinkler Pump (3-Phase)
- Great for business and light commercial applications
- Sprinkler systems, light agg. irrigation & industrial liquid transfer
- Heavy Duty Cast Iron Pump Case w/ Base Plate
- Highly durable, additional support, quiet operation and long life
- 3-Phase A.O. Smith 56J Motor (3450 RPM)
- Versatile design accepts 208-230/460V power
- 304 Stainless Steel Impeller w/ Stainless Steel Eye Seal
- For Maximum Durability & efficient operation you can rely on
- Lifts Water From A Depth Up To 25' - Self-Priming Design
- 1" Priming plug for faster start-up, No additional priming required
- Carbon/Ceramic/Stainless Steel Mechanical Seal
- Provides a reliable seal against water leakage
- Engineered For Easy Service
- Back pull-out design, leaves plumbing & base/case in place
- 1-1/2" FNPT Suction & Discharge
- Allows for use in a variety of applications
- 46 PSI Max & Handles Water Temperatures up to 120°F
- 1-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
92983015
General Information
Product Category
Water Pump
Motor
Voltage
230 Volt 3-Phase
Pump
Gallons Per Minute
70 Gallons
Inlet Diameter
1-1/2 Inch
Outlet Diameter
1-1/2 Inch
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
50
Total Head Lift
120 Feet
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
1.5 hp
Overview
Product Category
Water Pump
Weight
55 Pounds
Consumer Warranty
1 Year
Product Length
21.6 Inches
Product Width
9 Inches
Product Height
8.87 Inches
Additional Model Numbers
FTB15CI-SSI-T, 92983015
