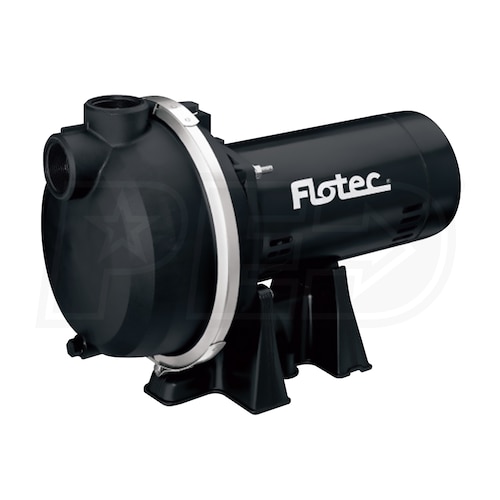

Flotec FP5172 - 67 GPM 1-1/2 HP Self-Priming Thermoplastic Sprinkler Pump
Model:
FP5172-08
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
1-1/2 Inch
Style
Sprinkler
GPM
67 Gallons
- Thermoplastic Sprinkler Pump
- 1-1/2" NPT suction and discharge ports
- Threaded ports for pressure gauge and drain plug included
- Superior Performance
- At depths to water of 20' or less
- Fiberglass-Reinforced Thermoplastic Pump Housing
- For the highest corrosion resistance
- High Capacity
- Ideal for larger sprinkler zones
- Water transfer with 1-1/2" or 2" tapping for suction and discharge
- Heavy-Duty Dual-Voltage Motor
- Preset at 230V, also allows for 115V
- Self-Priming After Pump Housing Is Initially Filled
- Check valve or foot valve required, sold separately
- 1-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
FP5172-08
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
9.6 @230v / 19.2 @115v
Pump
Gallons Per Minute
67 Gallons
Inlet Diameter
1-1/2 Inch
Outlet Diameter
1-1/2 Inch
Self Priming
Yes
Pump Housing Drain
Yes
Housing Material
Thermoplastic
Suction Head
20 Feet
Maximum PSI
47
Submersible
No
Engine
Horsepower
1.5 hp
Overview
Product Category
Water Pump
Weight
34.1 Pounds
Consumer Warranty
1 Year
UPC
022315100718
