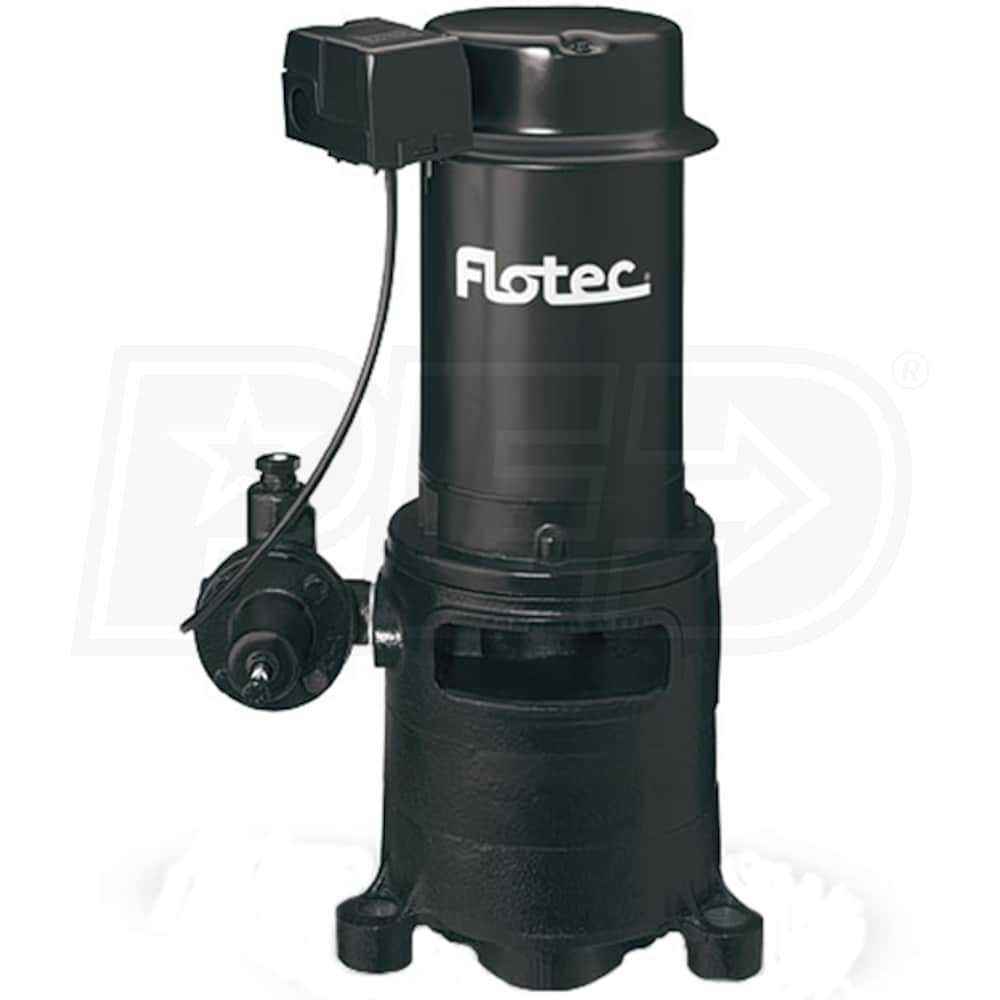

Flotec FP4432 - 12 GPM 1 HP Cast Iron Vertical Deep Well Non-Submersible Pump (115/230V)

Model:

FP4432-01

Write A Review
$907.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

Flotec FP4432 - 12 GPM 1 HP Cast Iron Vertical Deep Well Non-Submersible Pump (115/230V)
Flotec FP4432 - 12 GPM 1 HP Cast Iron Vertical Deep Well Non-Submersible Pump (115/230V)
Model: FP4432-01
$907.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4 Inch

Style

Deep Well

GPM

12 Gallons

  • Cast Iron Vertical Deep Well Pump
  • Vertical deep well jet pump can be used in 4" diameter or larger wells up to 260'
  • Vertical deep well jet pump can be used in 2" diameter wells up to 180'
  • Superior Performance
  • Depths to water of 50' or more
  • Maximum depth of 260'
  • Rugged Housing
  • Durable cast iron construction
  • High Capacity
  • Up to 12 gallons per minute at 50 PSI
  • Heavy-Duty Dual-Voltage Motor
  • Preset at 230V, also allows for 115V
  • Pipe size required:
  • 1-1/4" suction, 1" drive, 1" discharge
  • Prewired Factory-Set 40/60 Pressure Switch
  • Pressure gauge and mounting feet also included
  • Jet kit sold separately
  • 1 Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

FP4432-01
specs product image PID-72408
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
9.6 @230v / 19.2 @115v
Pump
Gallons Per Minute
12 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Housing Material
Cast Iron
Suction Head
260 Feet
Submersible
No
Engine
Horsepower
1 hp
Overview
Product Category
Water Pump
Weight
73.2 Pounds
Consumer Warranty
1 Year
UPC
022315200791
Accessories
Pressure Switch
Yes
Injector Kit
