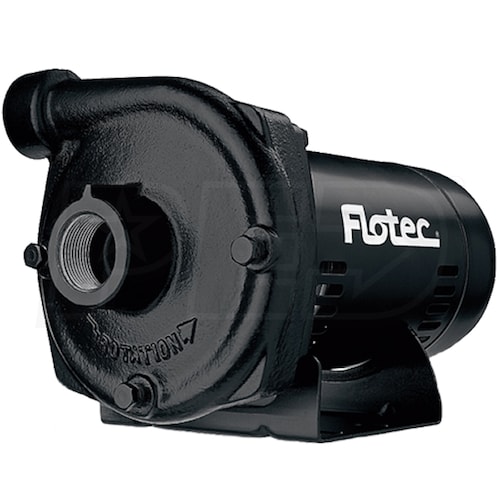

Flotec FP5512 - 22 GPM 1/2 HP Cast Iron Electric Transfer Pump
Model: FP5512-00
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(2)
Write a Review
$189.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 3-5 Days
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
HP
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1-1/4"
Style
Transfer Pumps
GPM
22
Gallons
Inlet Size
1-1/4"
Style
Transfer
GPM
22 Gallons
Features
Features
  • Cast Iron Centrifugal Pump
  • 1/2 HP, 22 GPM
  • Suction 1-1/4" NPT, discharge 1" NPT
  • Economical, General Purpose
  • Used for water transfer, circulation, fountains, waterfalls, pressure boosting and sprinkling
  • Rugged Pump Housing
  • Durable, cast iron construction
  • Threaded ports for pressure gauge (Not Included) and drain plug
  • Superior Performance
  • At depths to water of 25' or less
  • Heavy-Duty Dual-Voltage Motor
  • Preset at 230-Volts
  • Easy Installation
  • Discharge can be rotated to horizontal or vertical installations
  • 1-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.7 @230v / 9.4 @115v
Pump
Gallons Per Minute
22 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
36
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
30.1 Pounds
Consumer Warranty
1 Year
UPC
022315135925

Inlet Size
1-1/4"
Style
Transfer Pumps
GPM
22
Gallons
Inlet Size
1-1/4"
Style
Transfer
GPM
22 Gallons
Features
Features
  • Cast Iron Centrifugal Pump
  • 1/2 HP, 22 GPM
  • Suction 1-1/4" NPT, discharge 1" NPT
  • Economical, General Purpose
  • Used for water transfer, circulation, fountains, waterfalls, pressure boosting and sprinkling
  • Rugged Pump Housing
  • Durable, cast iron construction
  • Threaded ports for pressure gauge (Not Included) and drain plug
  • Superior Performance
  • At depths to water of 25' or less
  • Heavy-Duty Dual-Voltage Motor
  • Preset at 230-Volts
  • Easy Installation
  • Discharge can be rotated to horizontal or vertical installations
  • 1-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.7 @230v / 9.4 @115v
Pump
Gallons Per Minute
22 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
36
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
30.1 Pounds
Consumer Warranty
1 Year
UPC
022315135925
Product Specs
+
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.7 @230v / 9.4 @115v
Pump
Gallons Per Minute
22 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
36
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
30.1 Pounds
Consumer Warranty
1 Year
UPC
022315135925
Reviews
(2)
+
FloTec FP5512-00 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
Does this pump require priming? I want to transfer water from low lying area in the yard, as well as bring water from my basement aquariums to outside the house (up 15ish feet).
Aaron S.
from Wisconsin
February 28, 2017
Answer
Most pumps are self-priming, but they will require you to prime the pump by filling the priming port and pump housing with water upon initial installation, to force any air out and allow for the impeller to start sucking water. Any air pockets left in the lines or the pump will cause the pump to become air-bound. An air-bound pump will not operate properly until the air is removed and replaced by water. As long as a check or foot valve is installed on the suction pipe and you never lose suction, you should not need to re-prime the pump. That said, the only pumps that we offer that can truly self-prime would be some of the gas diaphragm pumps that we offer like the Honda WDP30XK1AT - 80 GPM (3") Diaphragm Water Pump or the Multiquip MQD2H - 50 GPM (2") Diaphragm Pump w/ Honda GX Engine for example. You can watch the video below to learn how to prime almost any pump.


Was this answer helpful?
Yes
Thumbs Up Icon
1
No
Thumbs Down Icon
0
